Pozdrav,

prošlo je dosta vremena od zadnjeg posta o modulima.

U početku ove godine sam odlučio, da napravim nove module.
Moduli su dimenzije 880 x 250 mm. Napravljeni su od šper ploče.
Napravio sam 6 modula, 2 modula još čekata da počnem raditi na njima.

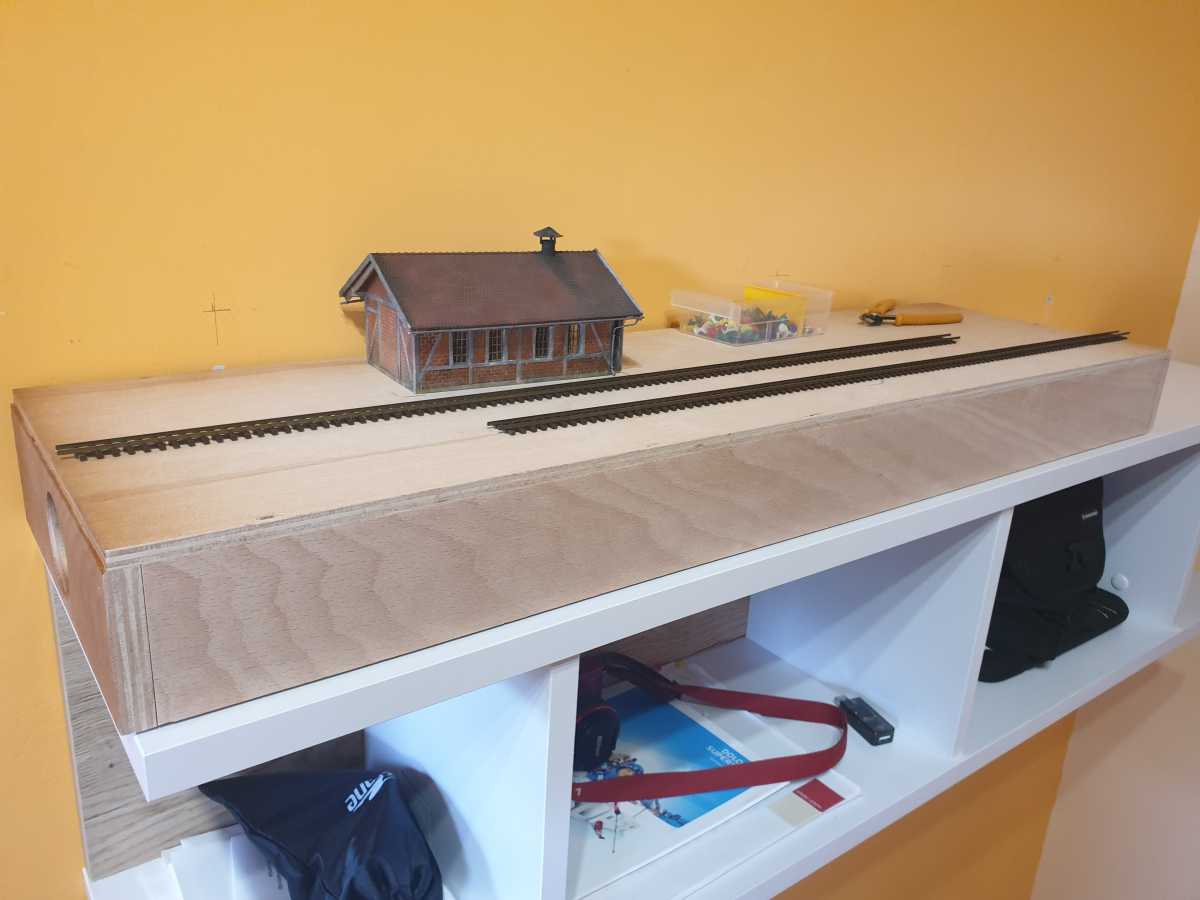

Moduli so dobili i stalni prostor u dnevnom boravku.
Attachment:
Moduli03.jpg [ 124.84 KiB | Viewed 13901 times ]

Attachment:
Moduli16.jpg [ 112.89 KiB | Viewed 13901 times ]

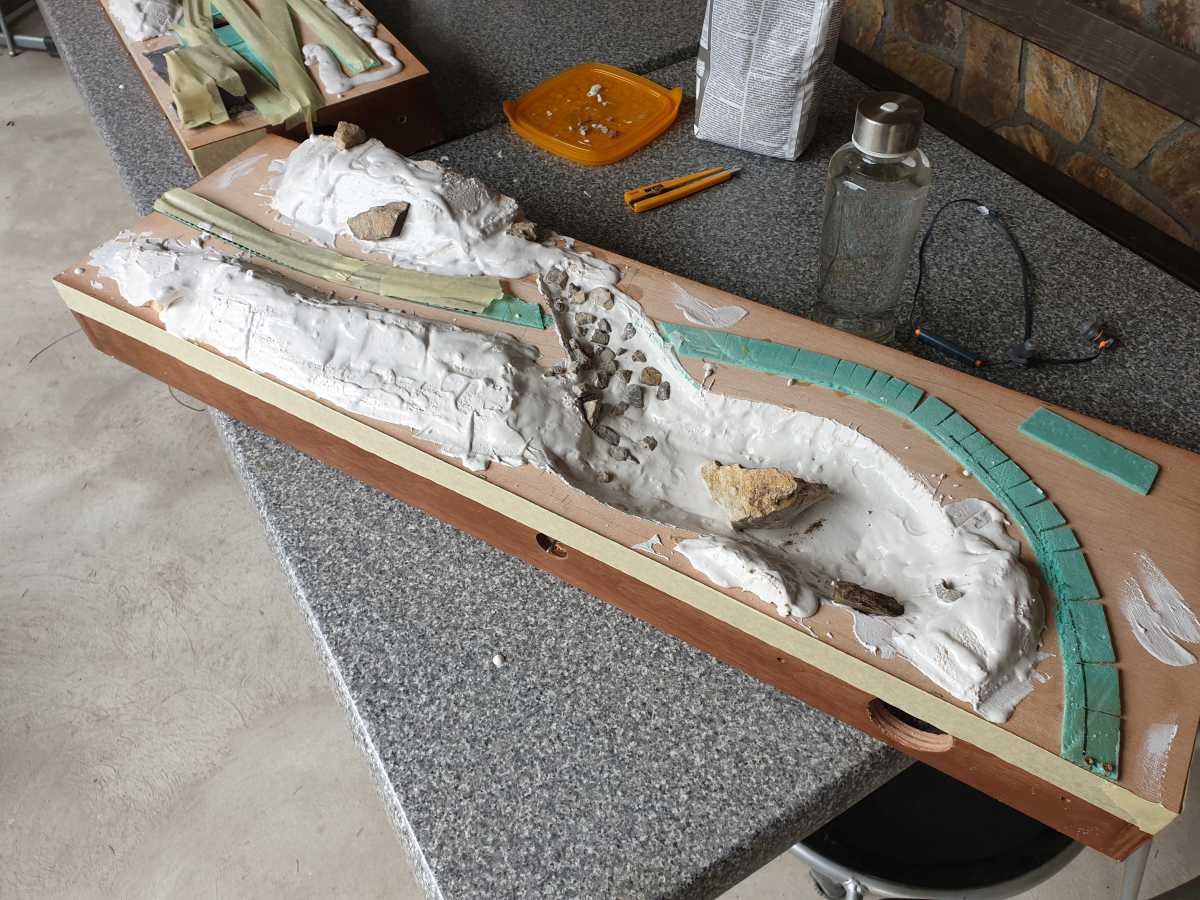

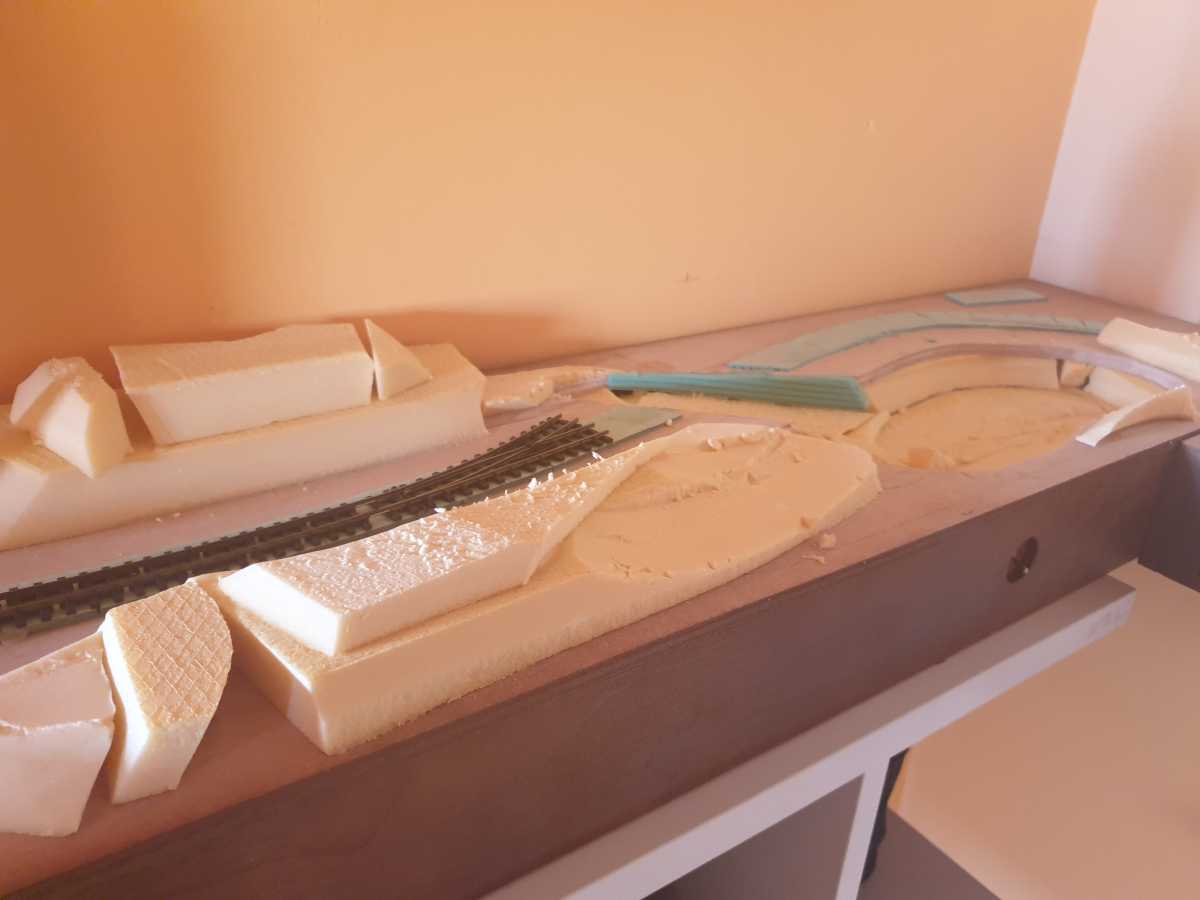

Izrada relijefa, osnova je stirodur
Attachment:
Moduli27.jpg [ 100.02 KiB | Viewed 13901 times ]


Gipsanje
Attachment:
Moduli34.jpg [ 196.97 KiB | Viewed 13901 times ]


Više možete nači na mojoj stranici
https://www.modelne-zeleznice.eu/novi-h0e-moduli-1-del/
https://www.modelne-zeleznice.eu/novi-h0e-moduli-2-del/

_________________
Lp,
Sebastjan

Modelne železnice


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 11 Jun 2020, 06:08
Offline
User avatar

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

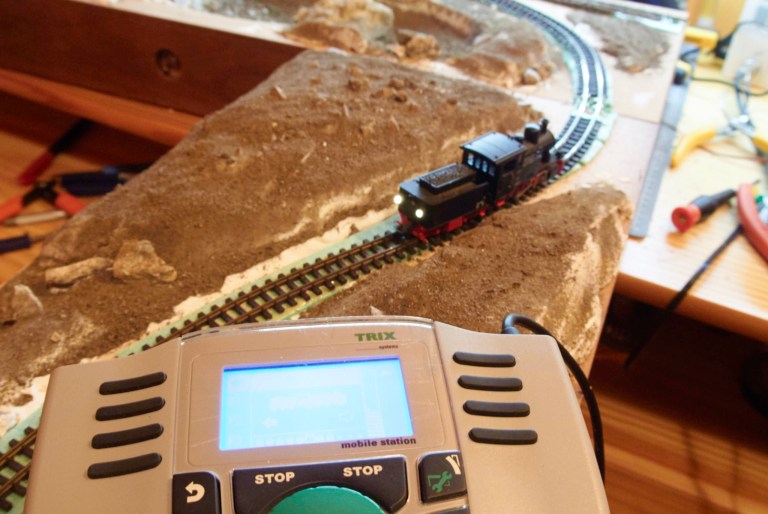

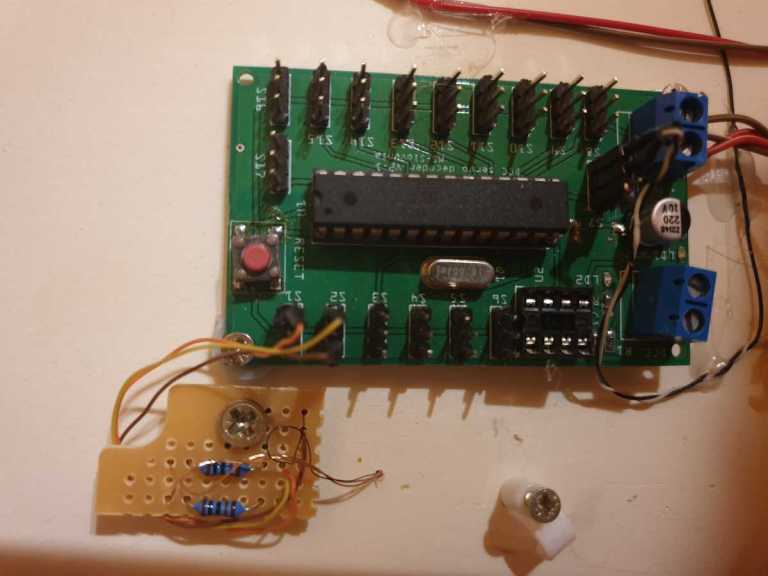

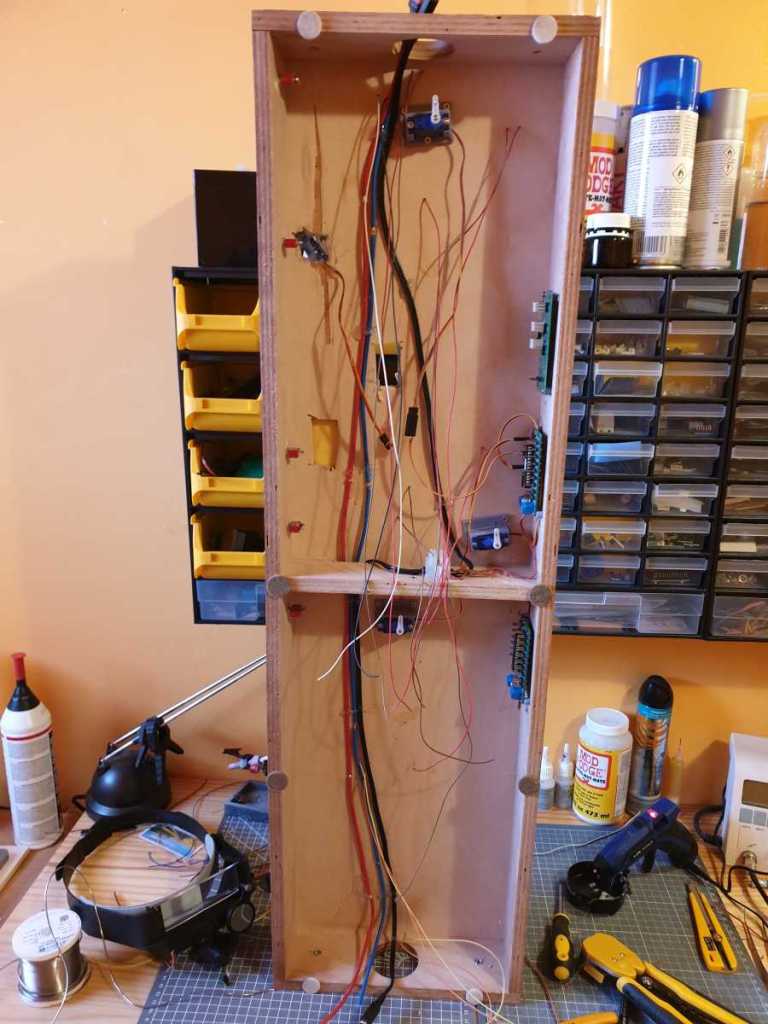

Sledila je ugradnja elektronike, DCC dekodera, rele pločica i servo motora za pogon skretnica.
Na dekoderima imam Arcomora Mardec program, koji ima puno mogužnosti upravljanja.

Attachment:
Moduli50.jpg [ 73.61 KiB | Viewed 13849 times ]

Attachment:
Moduli15.jpg [ 30.63 KiB | Viewed 13849 times ]

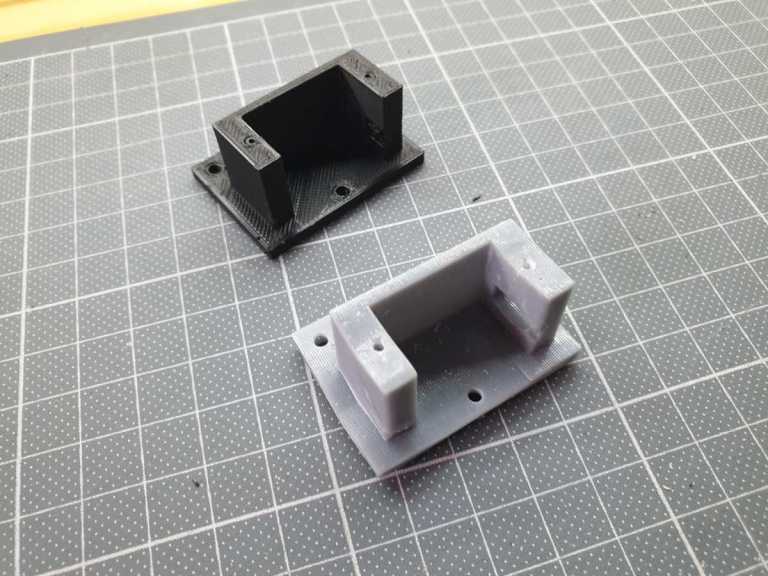

Nosači servo motora su 3D print
Attachment:
Moduli126.jpg [ 51.62 KiB | Viewed 13849 times ]

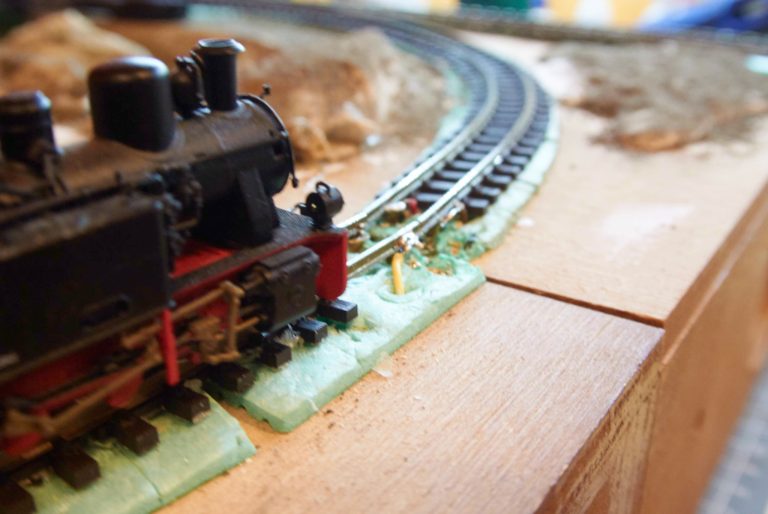

Sledila je testna vožnja i fino podešavanje tračnica na prelazima modula
Attachment:
moduli_AA_24-scaled.jpg [ 82.12 KiB | Viewed 13849 times ]

Attachment:
moduli_AA_26-scaled.jpg [ 52.01 KiB | Viewed 13849 times ]


Više možete nači na mojoj stranici
https://www.modelne-zeleznice.eu/novi-h0e-moduli-3-del/
https://www.modelne-zeleznice.eu/novi-h0e-moduli-4-del/

_________________
Lp,
Sebastjan

Modelne železnice


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 11 Jun 2020, 06:16
Offline
User avatar

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

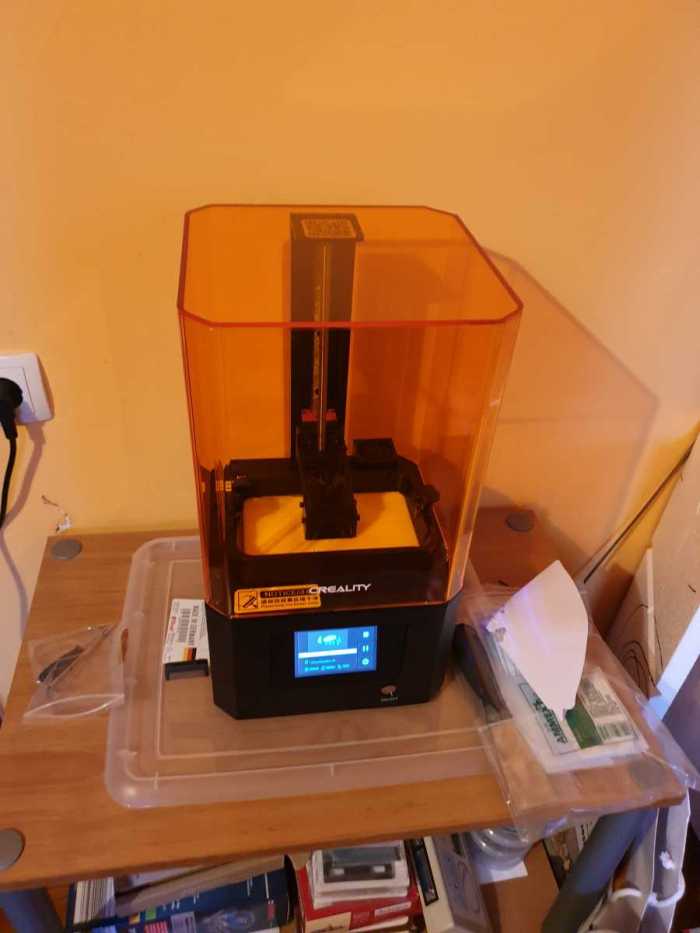

U medjuvremenu sam na 3D resin printeru odštampao bunar za vodu, životinje, itd...
Attachment:
Moduli09.jpg [ 33.56 KiB | Viewed 13849 times ]

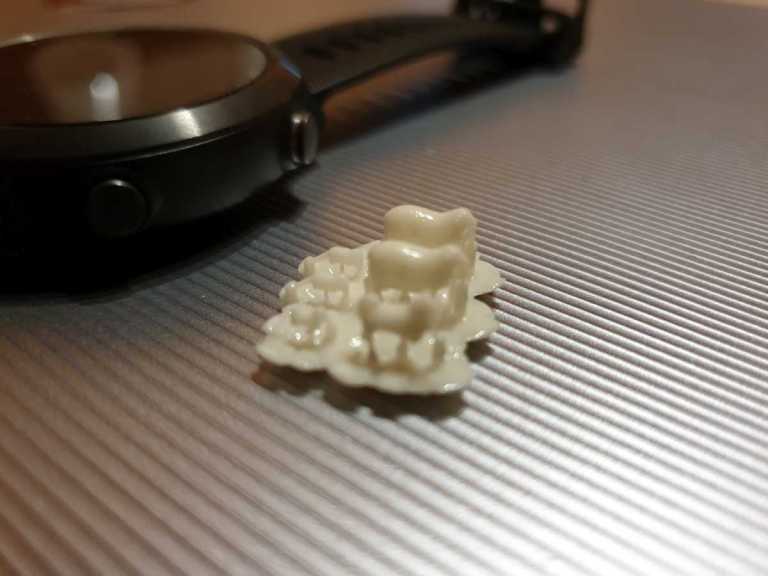

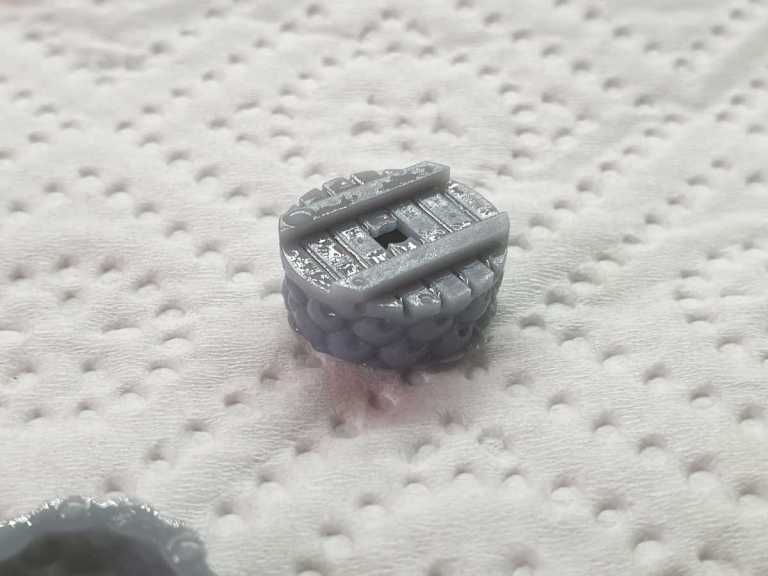

Odštampano
Attachment:
Moduli12.jpg [ 30.39 KiB | Viewed 13849 times ]

Attachment:
Moduli96.jpg [ 29.42 KiB | Viewed 13849 times ]

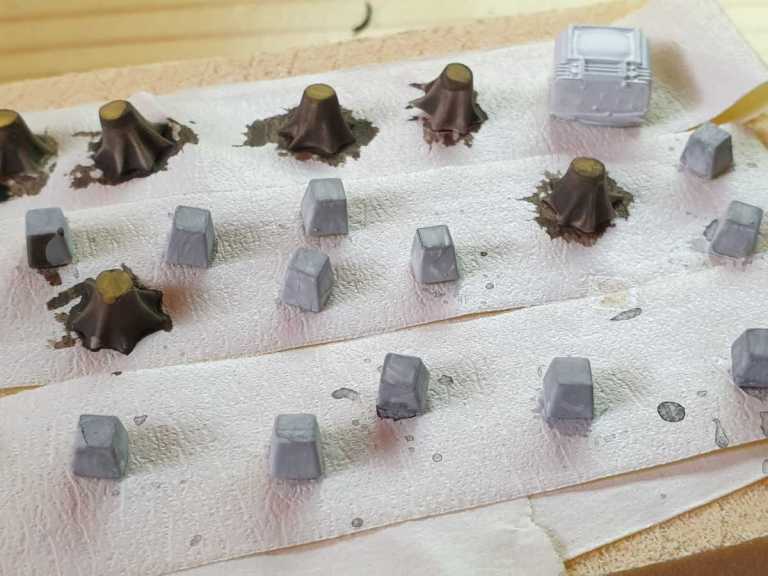

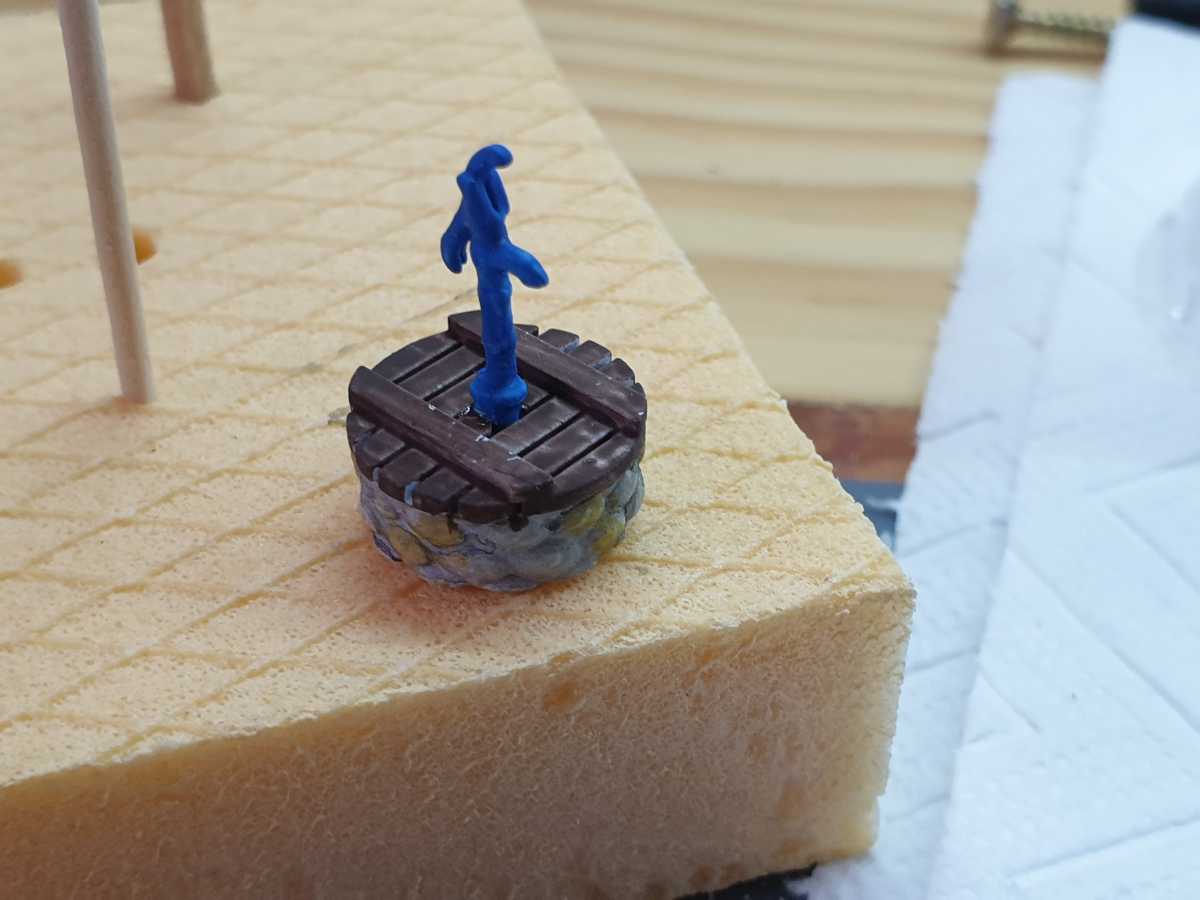

Bojanje
Attachment:
Moduli102.jpg [ 40.6 KiB | Viewed 13849 times ]

Attachment:
Moduli103.jpg [ 115.47 KiB | Viewed 13849 times ]


Odštampan je i gornji dio vagona.
Attachment:
Moduli121.jpg [ 52.14 KiB | Viewed 13849 times ]


Više možete nači na mojoj web stranici
https://www.modelne-zeleznice.eu/novi-h0e-moduli-5-del/

_________________
Lp,
Sebastjan

Modelne železnice


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 13 Jun 2020, 13:33
Offline
User avatar

Joined: 15 Apr 2012, 13:48
Posts: 712
super to izgleda

:text-bravo:

_________________
http://www.facebook.com/groups/malezeljeznice/


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 17 Jun 2020, 05:44
Offline
User avatar

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje
Odlučio sam napraviti vagone za prevoz drveča iz šume. Donji dio je odlitak, koji sam dobio kod Sinija.
Gornji dio - viljuške sam nacrtao u Fusion 360 i isprintao na 3D resin printeru.

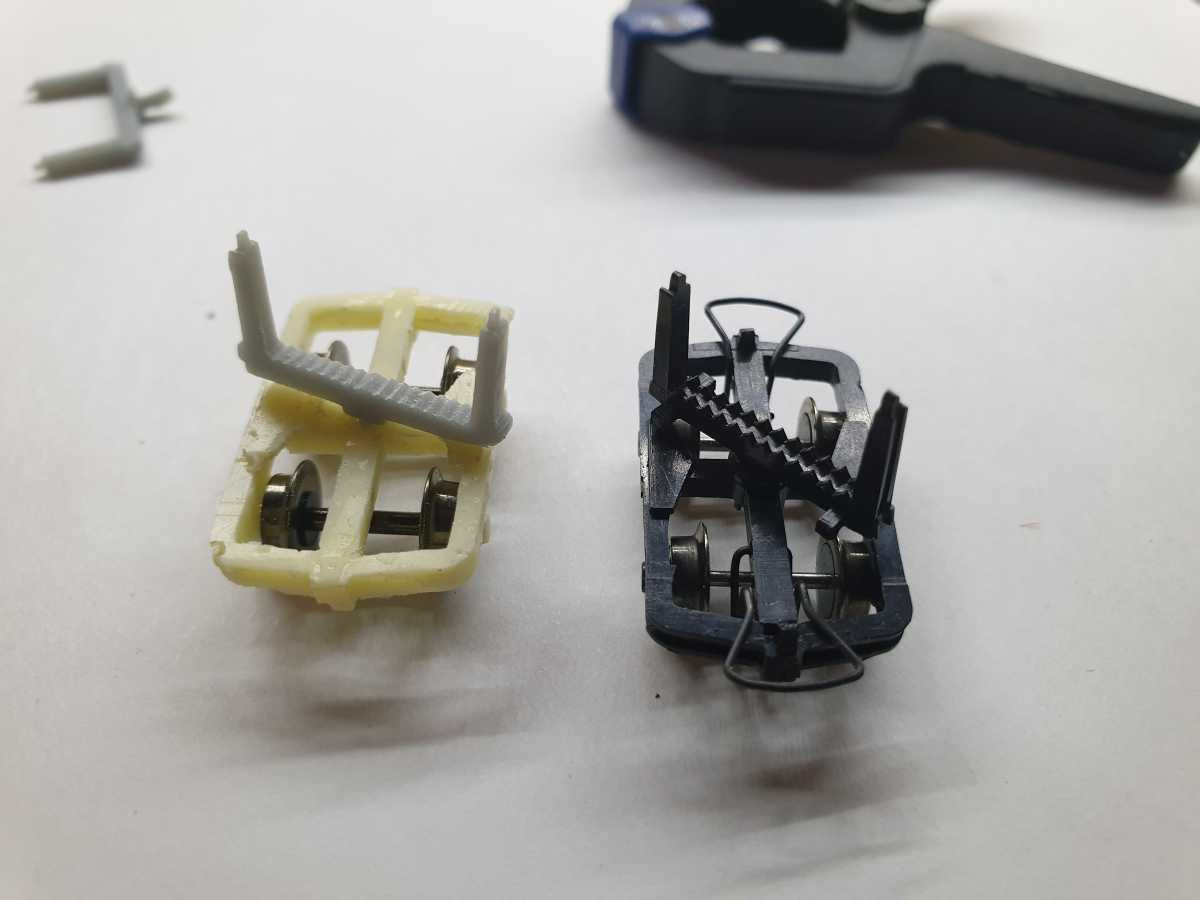

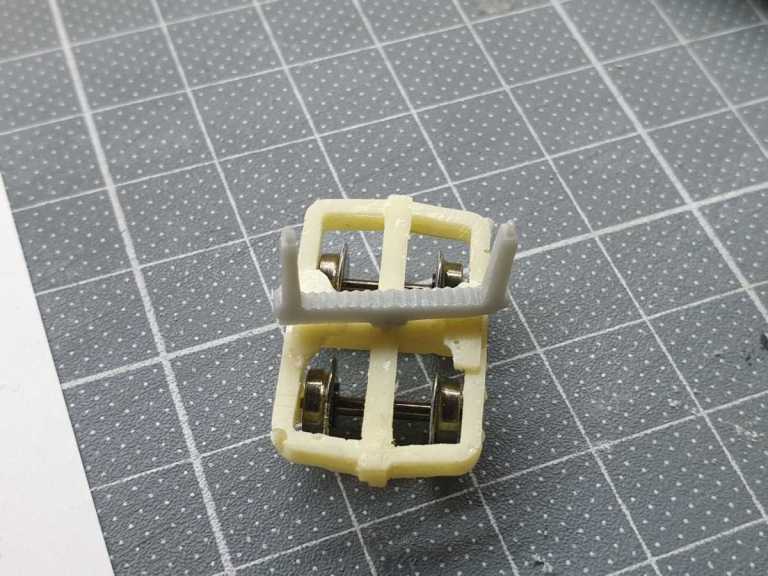

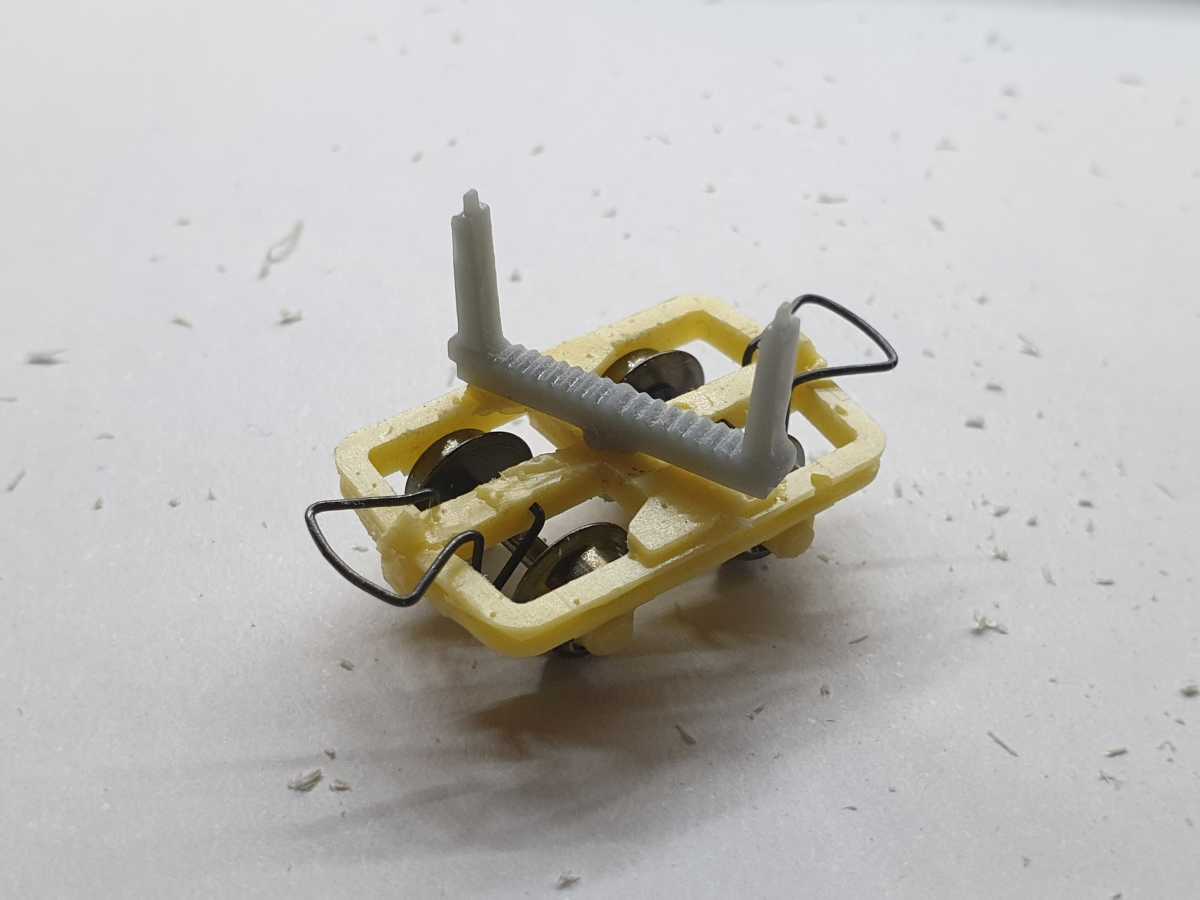

Provjera ako sve štima
Attachment:
vagoni05.jpg [ 101.23 KiB | Viewed 13788 times ]


Usporedba sa Roco vagonom
Attachment:
vagoni03.jpg [ 100.23 KiB | Viewed 13788 times ]


Testna vožnja na maketi
Attachment:
vagoni08.jpg [ 158.17 KiB | Viewed 13788 times ]

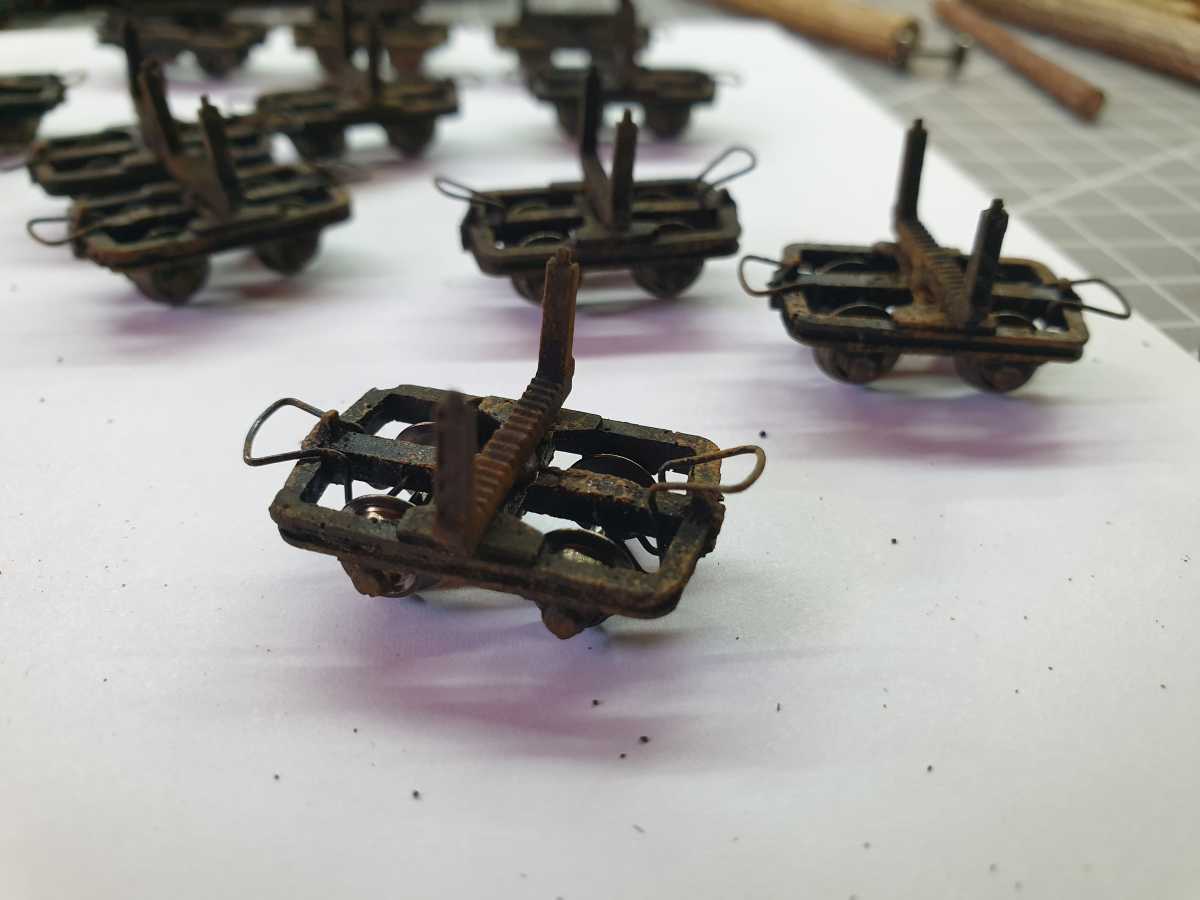

Bojanje i postarivanje vagona
Attachment:
vagoni09.jpg [ 110.46 KiB | Viewed 13788 times ]

_________________
Lp,
Sebastjan

Modelne železnice


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 17 Jun 2020, 05:46
Offline
User avatar

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

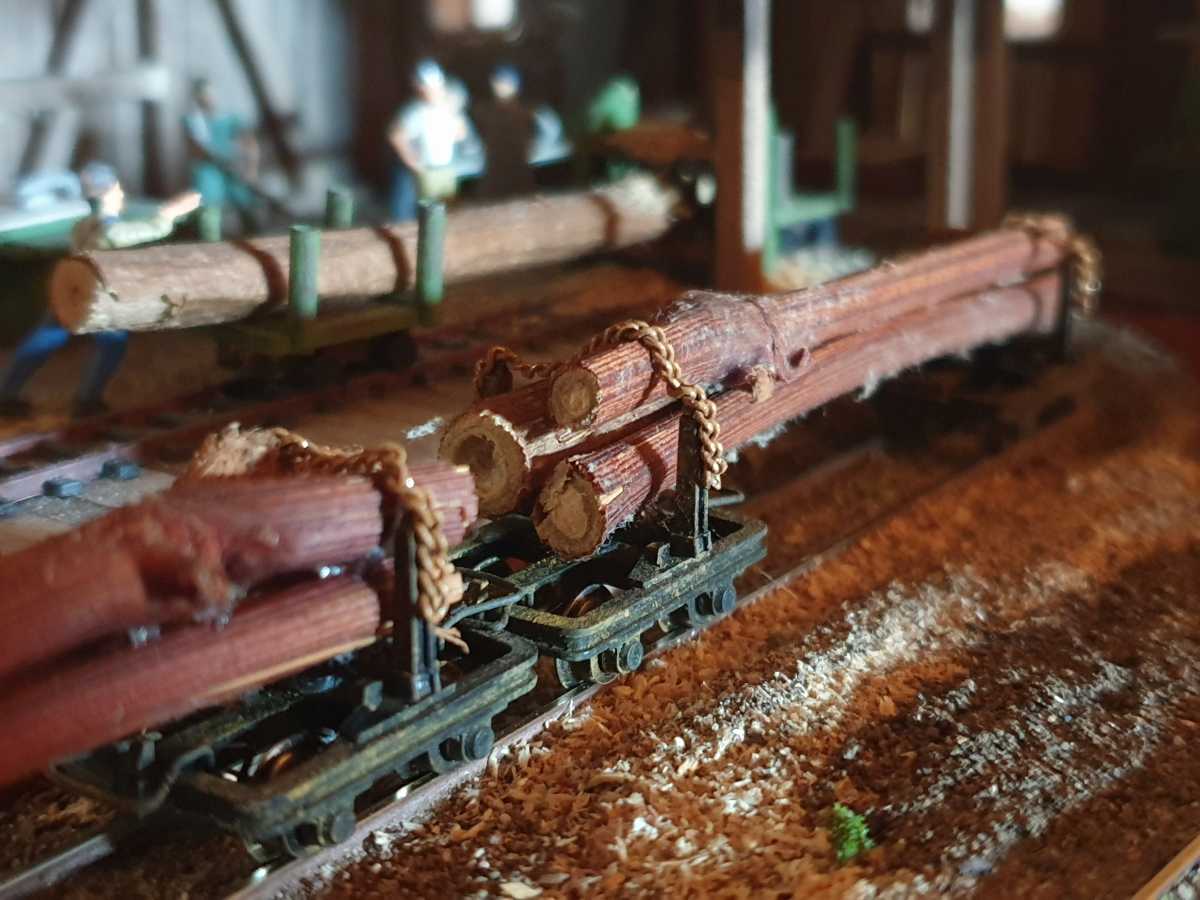

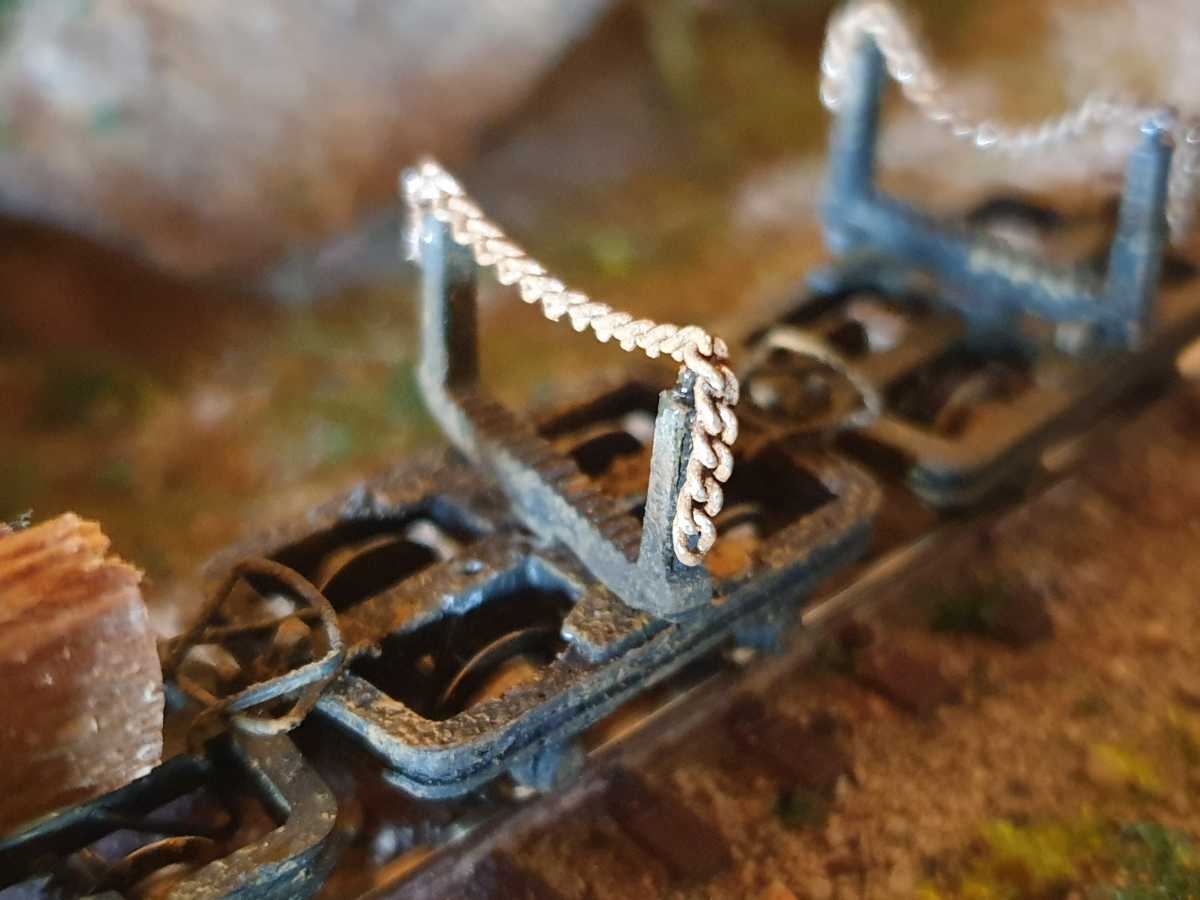

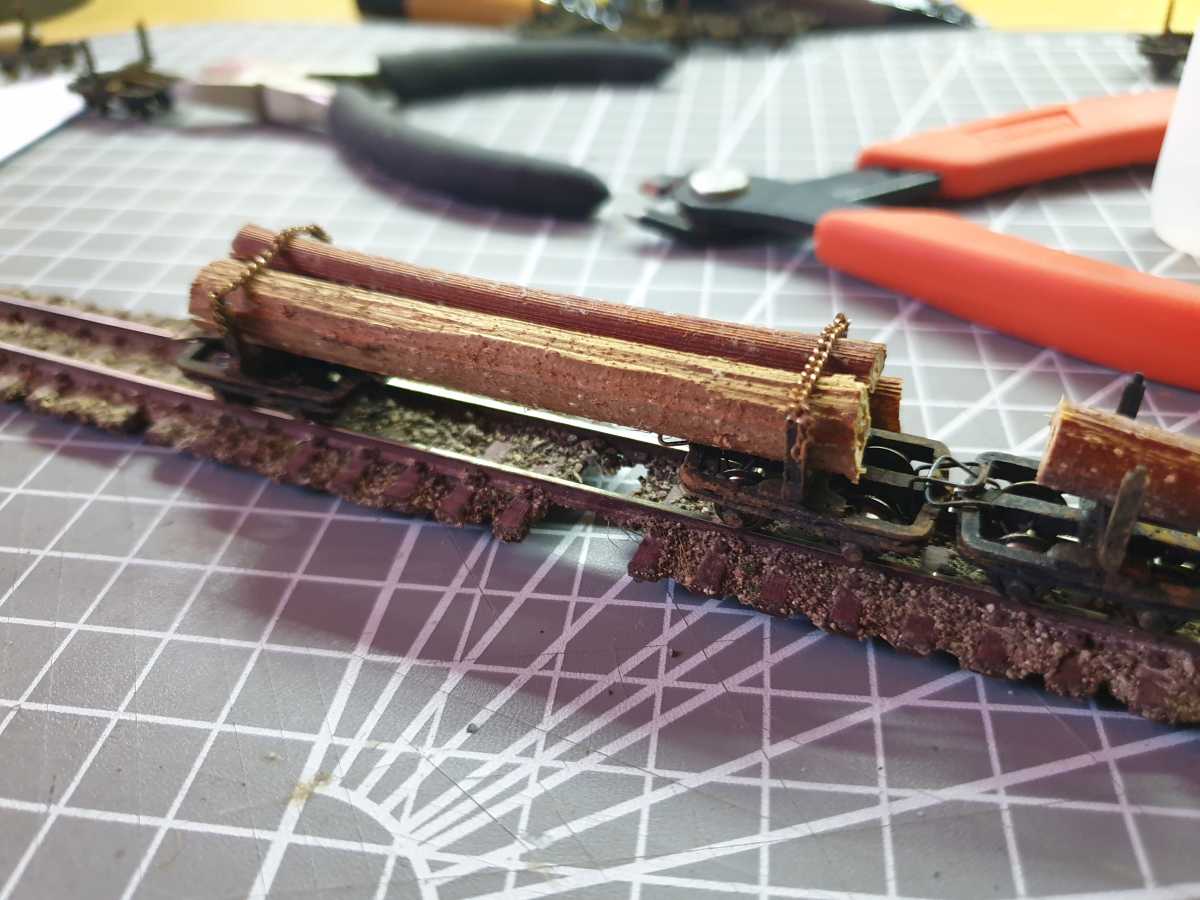

Utovar drveča i vezanje sa lancem
Attachment:
vagoni12.jpg [ 152.38 KiB | Viewed 13788 times ]

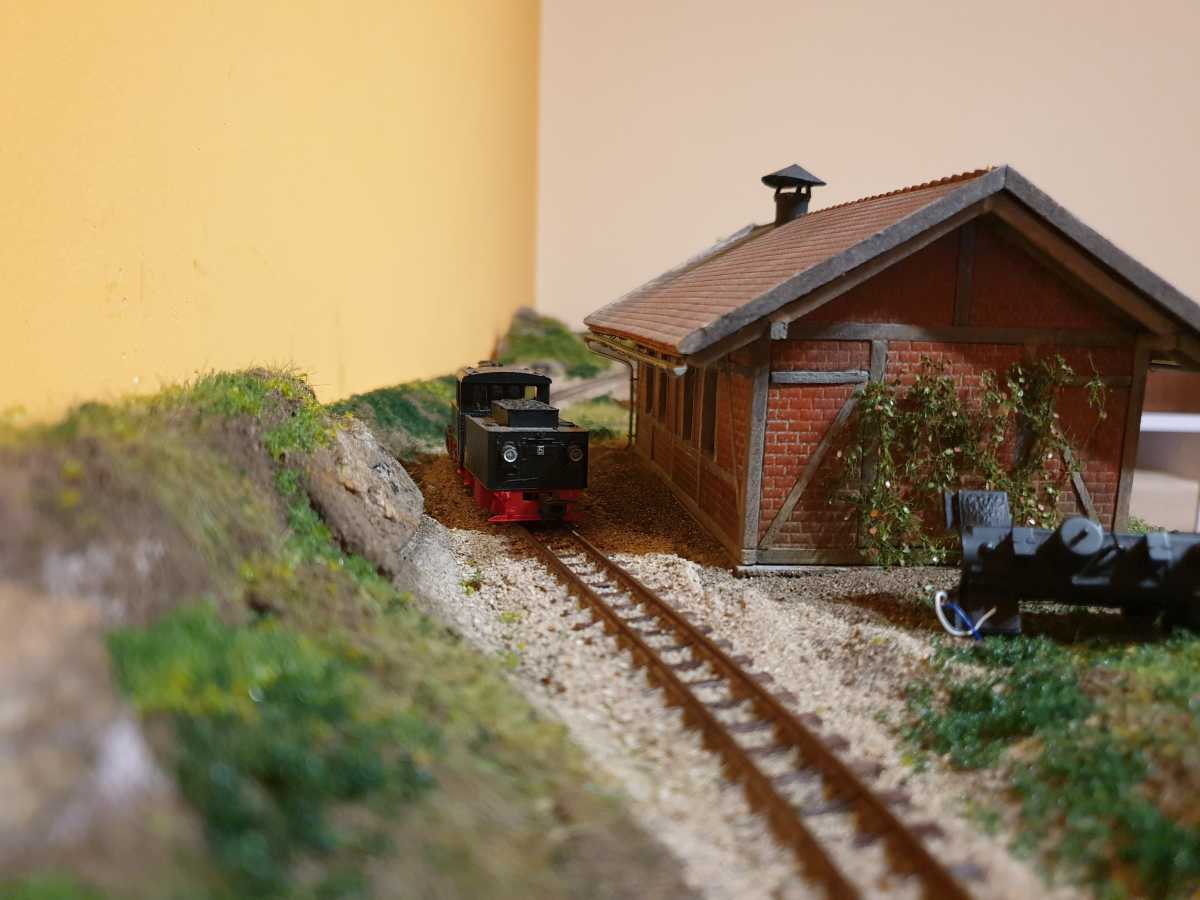

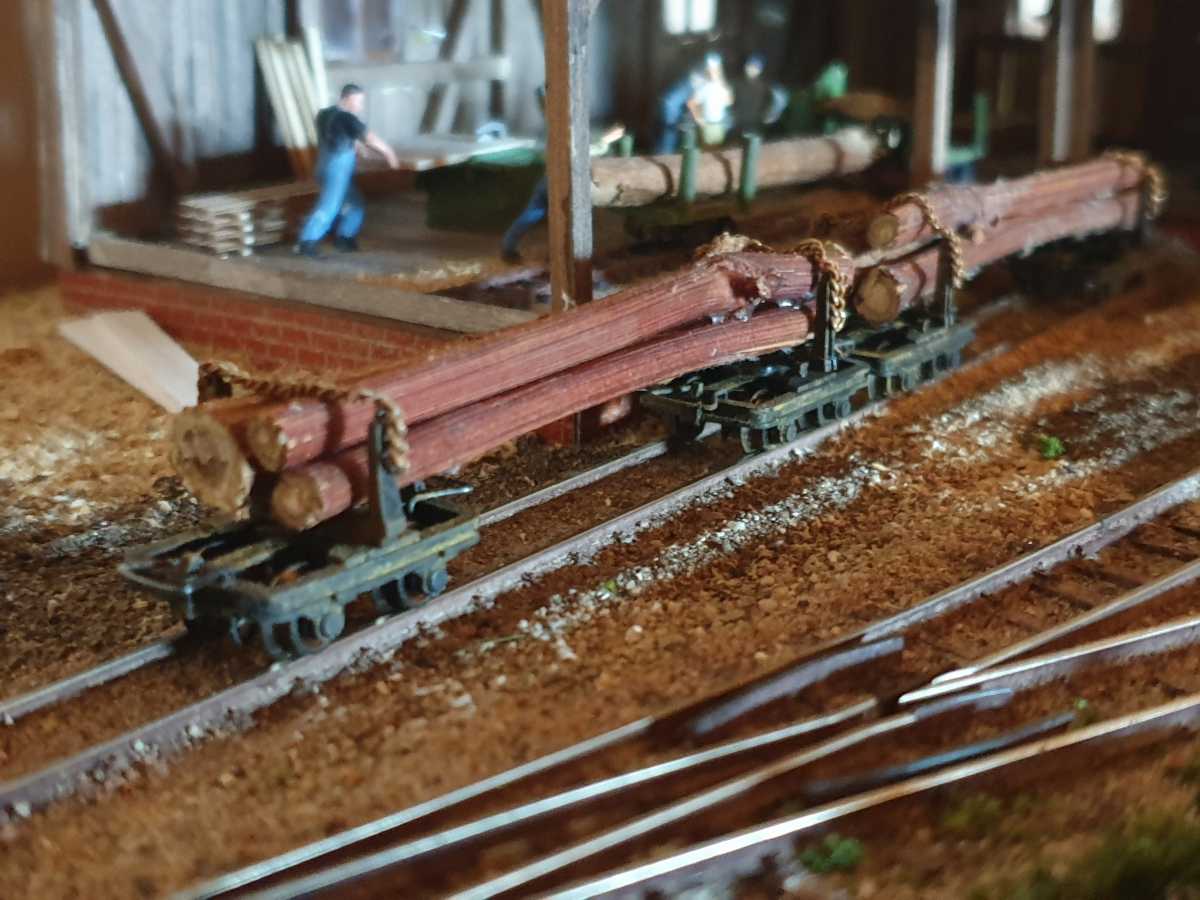

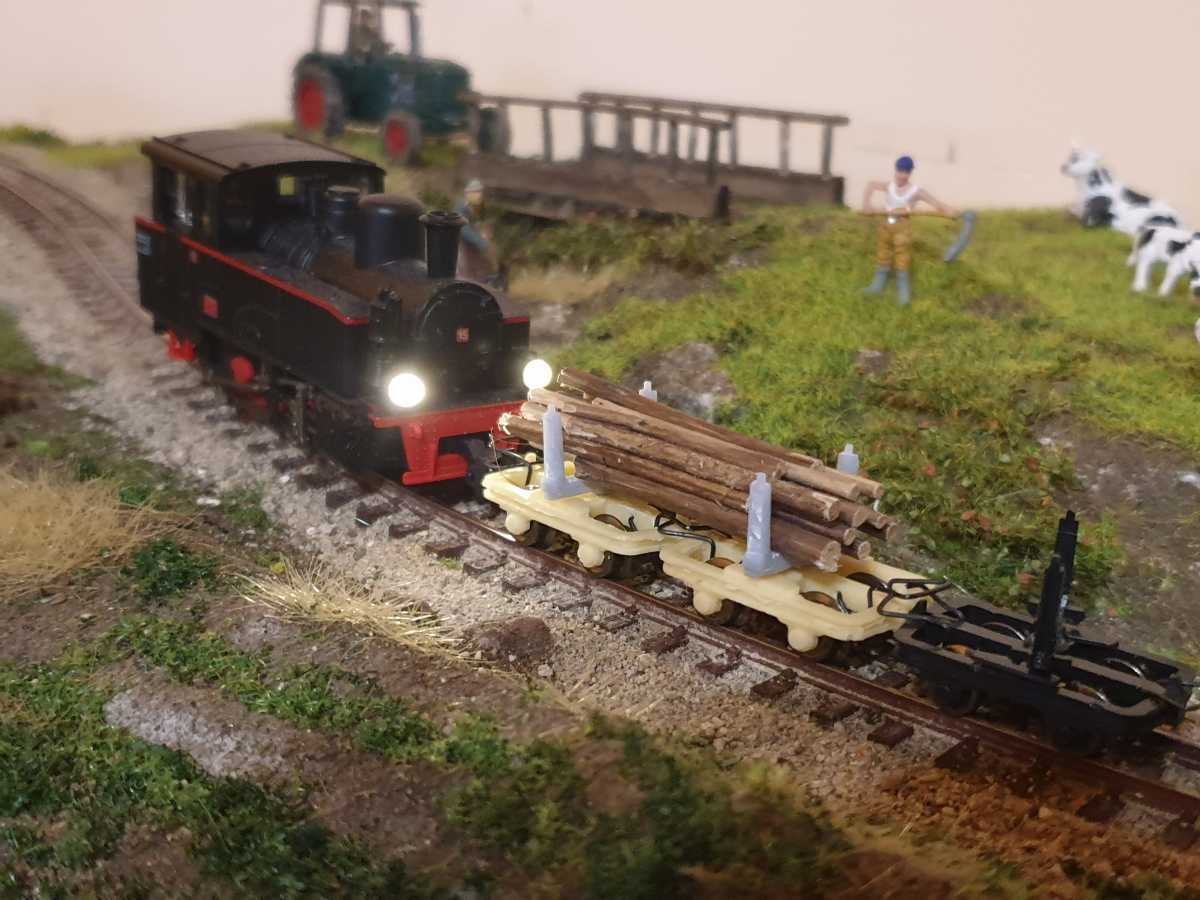

Gotovi vagoni na maketi
Attachment:
vagoni18.jpg [ 122.39 KiB | Viewed 13788 times ]

Attachment:
vagoni15.jpg [ 152.5 KiB | Viewed 13788 times ]

Attachment:
vagoni14.jpg [ 159.75 KiB | Viewed 13788 times ]


Više možete nači na mojoj stranici
https://www.modelne-zeleznice.eu/novi-h0e-moduli-6-del/

_________________
Lp,
Sebastjan

Modelne železnice


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 01 Jul 2020, 20:21
Offline
User avatar

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

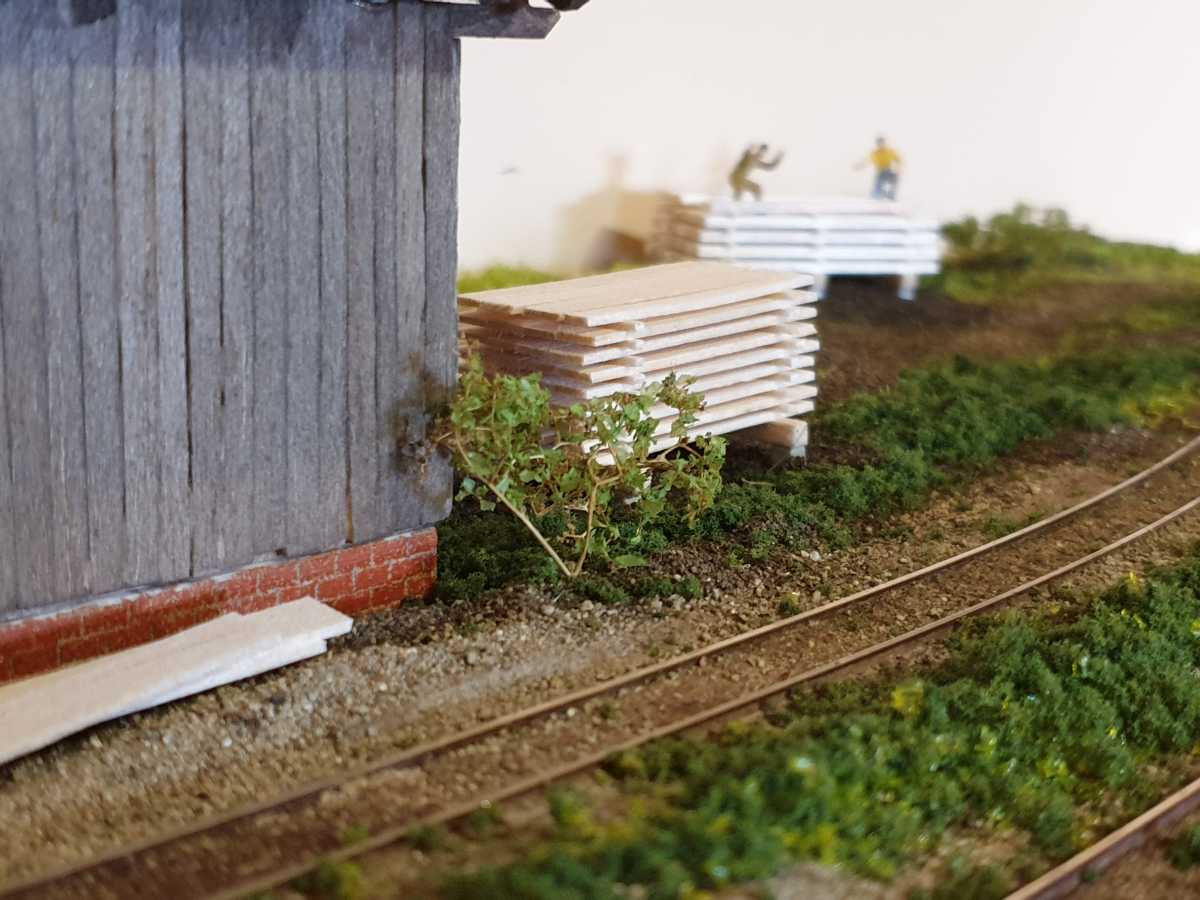

Sledila je izrada okoliša i detajla.

Attachment:
Moduli73.jpg [ 132.81 KiB | Viewed 13635 times ]

Attachment:
Moduli75.jpg [ 123.66 KiB | Viewed 13635 times ]

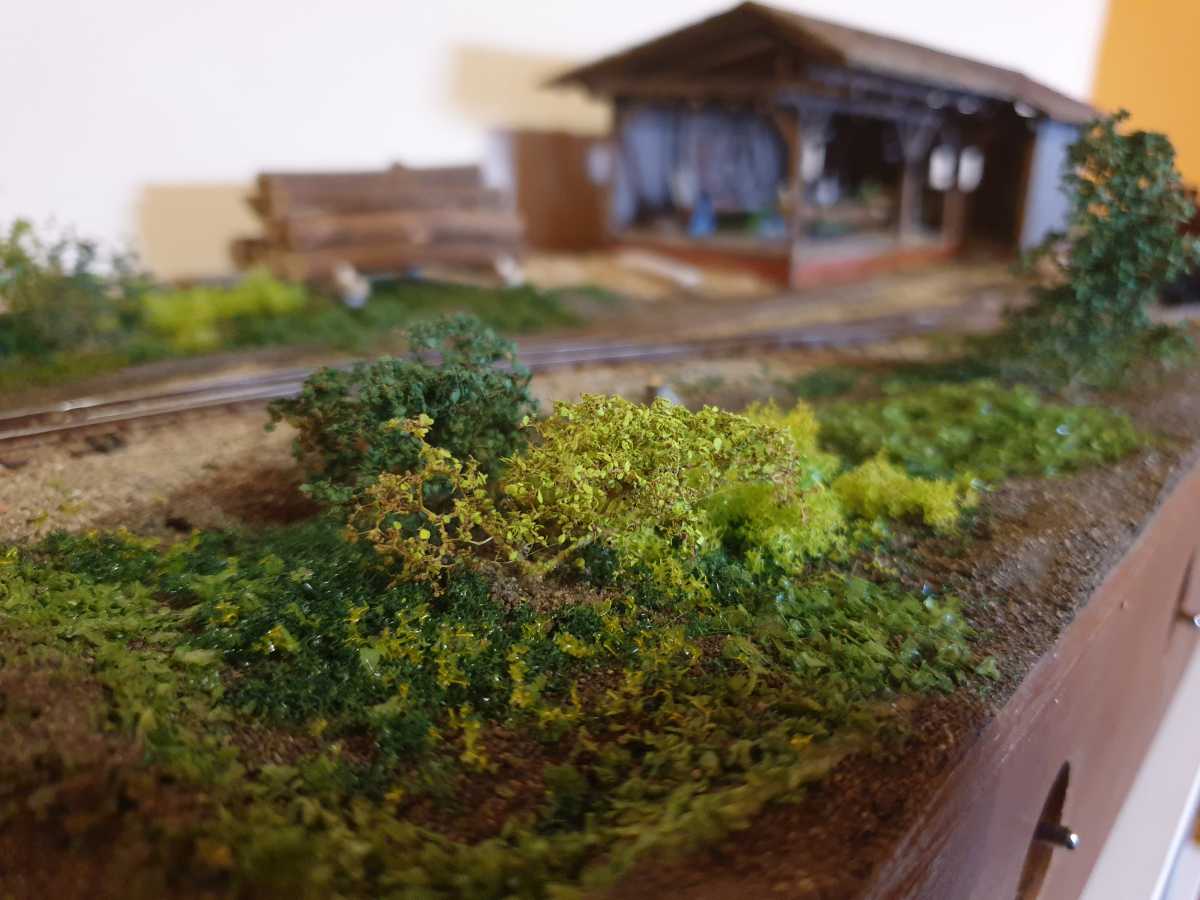

Detajle sam prvo radio na modulu sa žagom, najprije sam učvrstio žagu na modul, sledilo je zelenje i detajli.

Attachment:
Moduli106.jpg [ 149.31 KiB | Viewed 13635 times ]

Attachment:
Moduli110.jpg [ 157.46 KiB | Viewed 13635 times ]

Attachment:
Moduli116.jpg [ 146.45 KiB | Viewed 13635 times ]


Trenutno radim drveče i smreke, sa kojima ču završiti module.

Više možete vidjeti na mojoj stranici
https://www.modelne-zeleznice.eu/novi-h0e-moduli-7-del/

_________________
Lp,
Sebastjan

Modelne železnice


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 04 Jul 2020, 03:16
Offline
User avatar

Joined: 15 Apr 2012, 13:48
Posts: 712
ekipa totalno mi je glupo vise slat postove za odredjene modelare tipa cool photos ili slicno
puno puta ne komentiram jer mi se neda ponavljati
samo sjedim uz svoju jutarnju kavicu i uzivam u vasom fotkama
:lol:
eto ziva istina

:text-coolphotos:

aj nek bude jos jednom

:lol:

_________________
http://www.facebook.com/groups/malezeljeznice/


Top
 Profile

 Post subject: Re: Modulna maketa H0e
PostPosted: 05 Jul 2020, 07:50
Offline
User avatar

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje
Hvala, @mrva150

Idemo dalje, za module sam odlučio izraditi smreke. Ideja nije moja nego je preuzeta od Luka


Za izradu nam treba okrugla balsa debljine 5mm, vrtnarska žica, ljepio u špreju i gel sekundno ljepilo,
treba nam presejana zemlja, braun boja, nešto bucika, i statička trava 6.5 - 7 mm za granice i 2 mm bež,
svjetlo i tamno zelena za konačni posip. Smreke su visine od 10 do cca 20 cm.

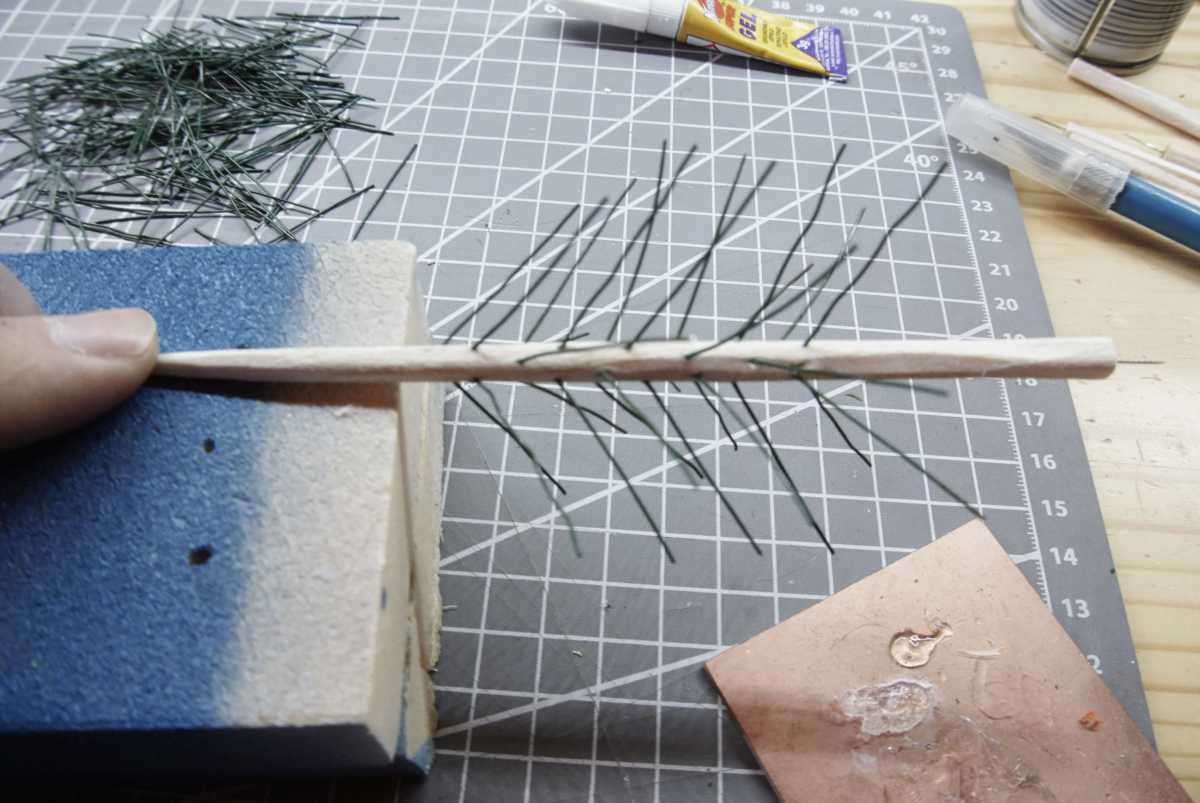

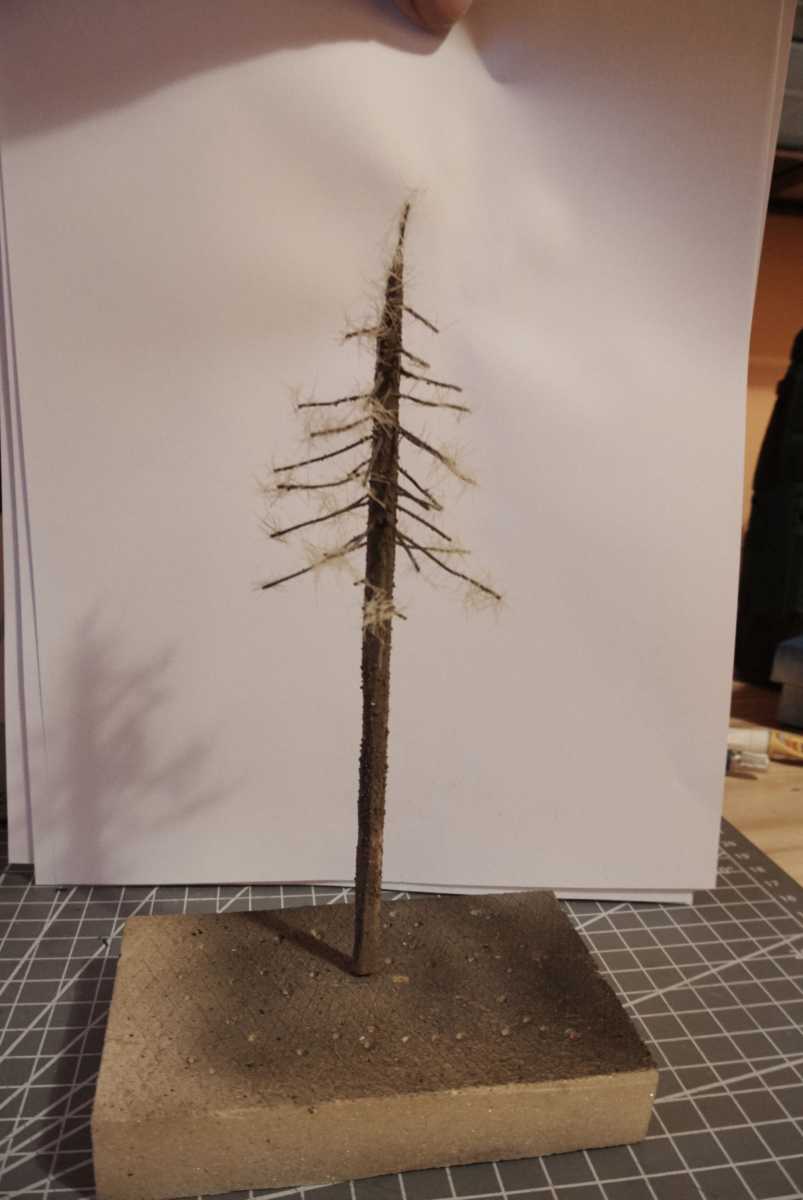

Najprije moramo narezati žicu na duljinu cca 3 cm. Sledi lepljenje grana u balsu.

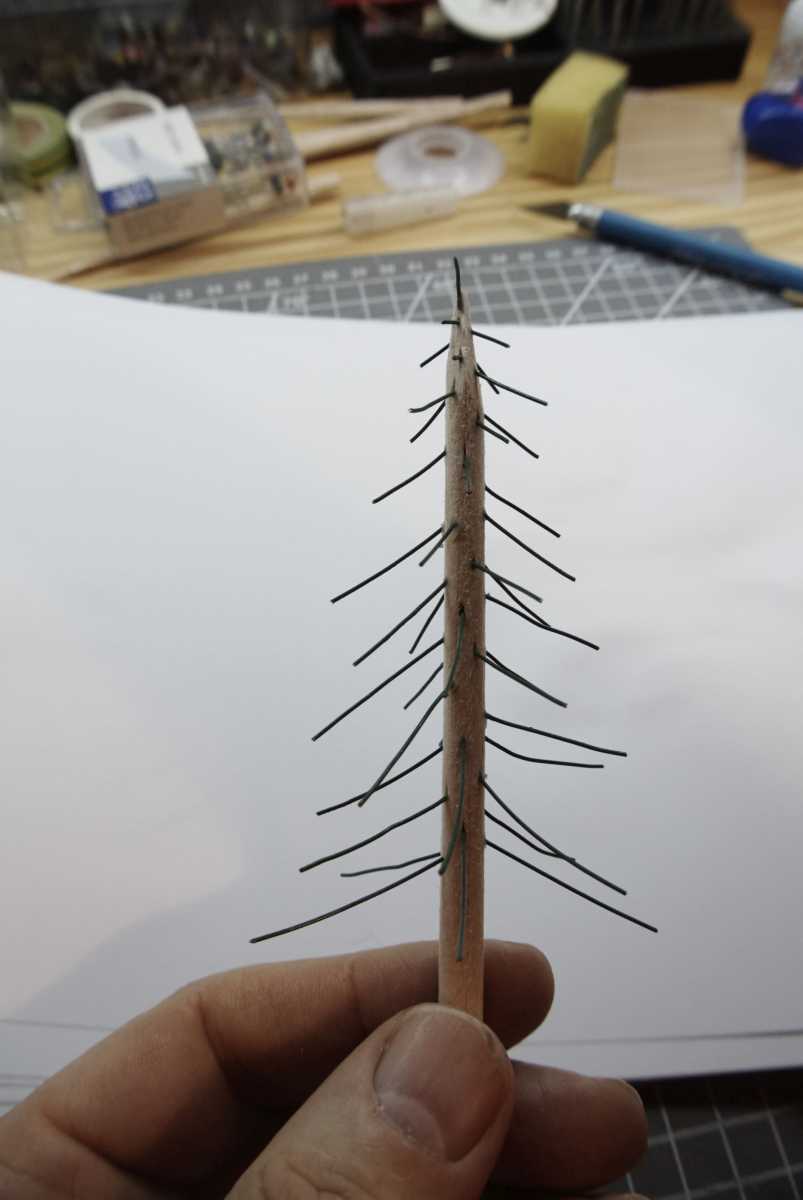

Attachment:
smreka04.jpg [ 90.85 KiB | Viewed 13577 times ]

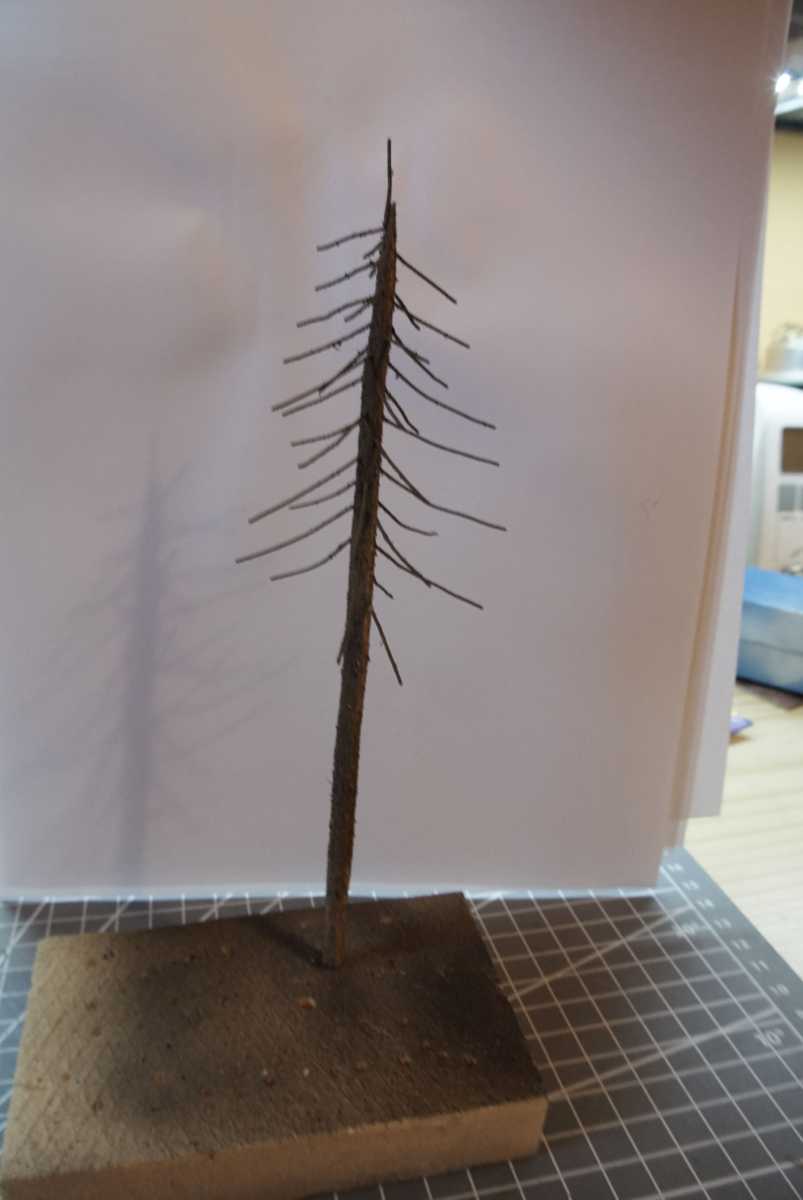

Kada se sve osuši, porežemo grane da dobijemo oblik smreke.
Attachment:
smreka07.jpg [ 47.19 KiB | Viewed 13577 times ]


Sledi lepljene zemlje, da dobijemo strukturu na smeki.
Attachment:
smreka08.jpg [ 40.7 KiB | Viewed 13577 times ]


Sa vanjske strane zaljepimo statičnu 6,5 mm travu
Attachment:
smreka10.jpg [ 50.89 KiB | Viewed 13577 times ]


Sledi bojanje sa braun bojom.
