Post subject: Modulna maketa H0e

Posted: 04 Jan 2019, 07:24

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

Pozdrav, svima.

Prošlo je dosta vremena od mojih objava oko izrade maketa. Sve skupa je bil sklop okolnosti, zbog kojih sam i razstavio obje makete.
Prije neko vreme sam počeo raditi na H0e maketi, koja še biti napravljena iz modula veličine 44x25 cm i 25x25 cm. Ideju sam dobio od Gerda. Njegovu ideju možete vidjeti na https://waldbahner.de/2014/06/das-anlagenkonzept-meiner-h0e-waldbahn-steht/

Za početak sam krenuo u izradu lok šupe. Slična lokšupa je nekada bila u Zabukovici na uskotračnoj željeznici. Sam nacrt možete vidjeti na https://www.kamra.si/digitalne-zbirke/item/priprave-na-gradnjo-ozkotirne-proge-zalec-zabukovica.html. Ja sam lokšupu produžio zbog lokomotiva sa tenderom.

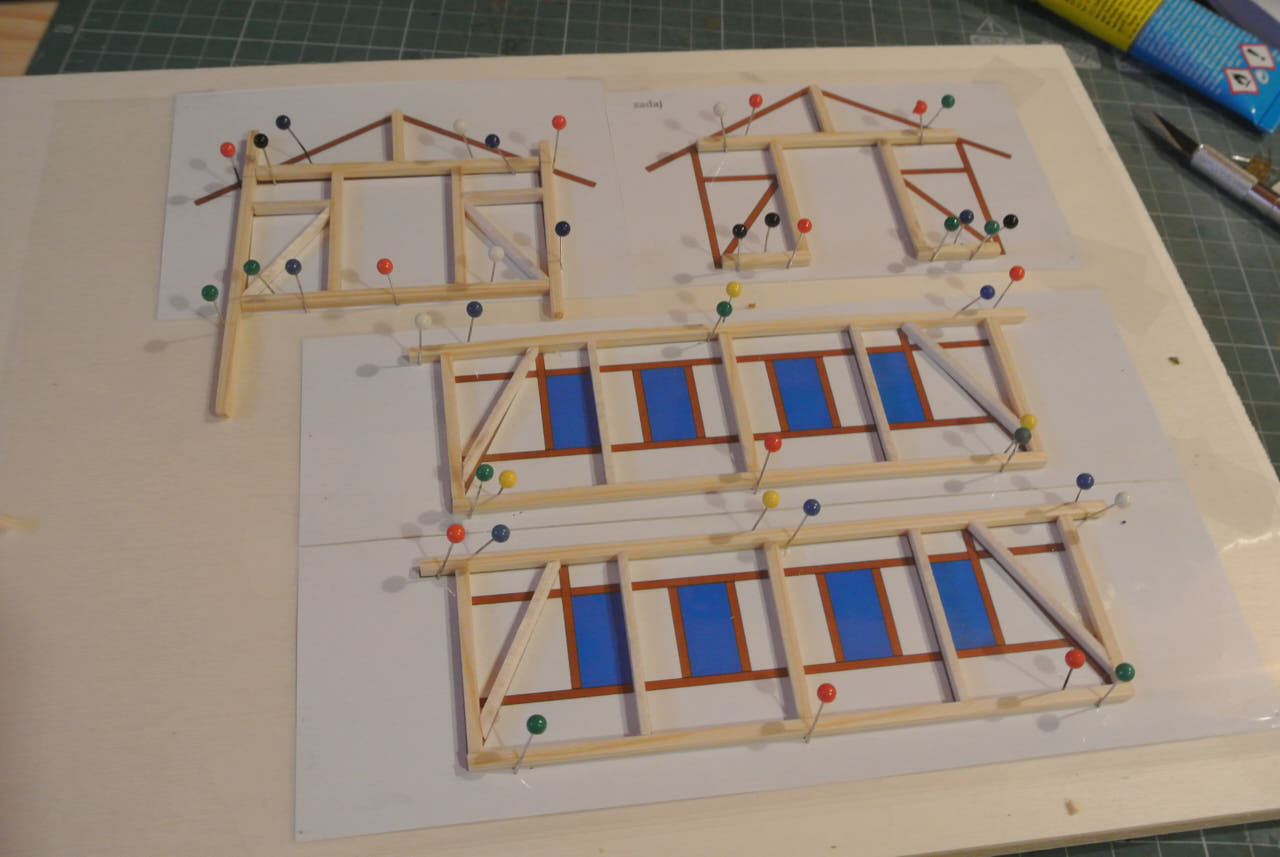

Osnova za izradu su smrekove letvice 3x3 mm i balsa debljine 2 mm.

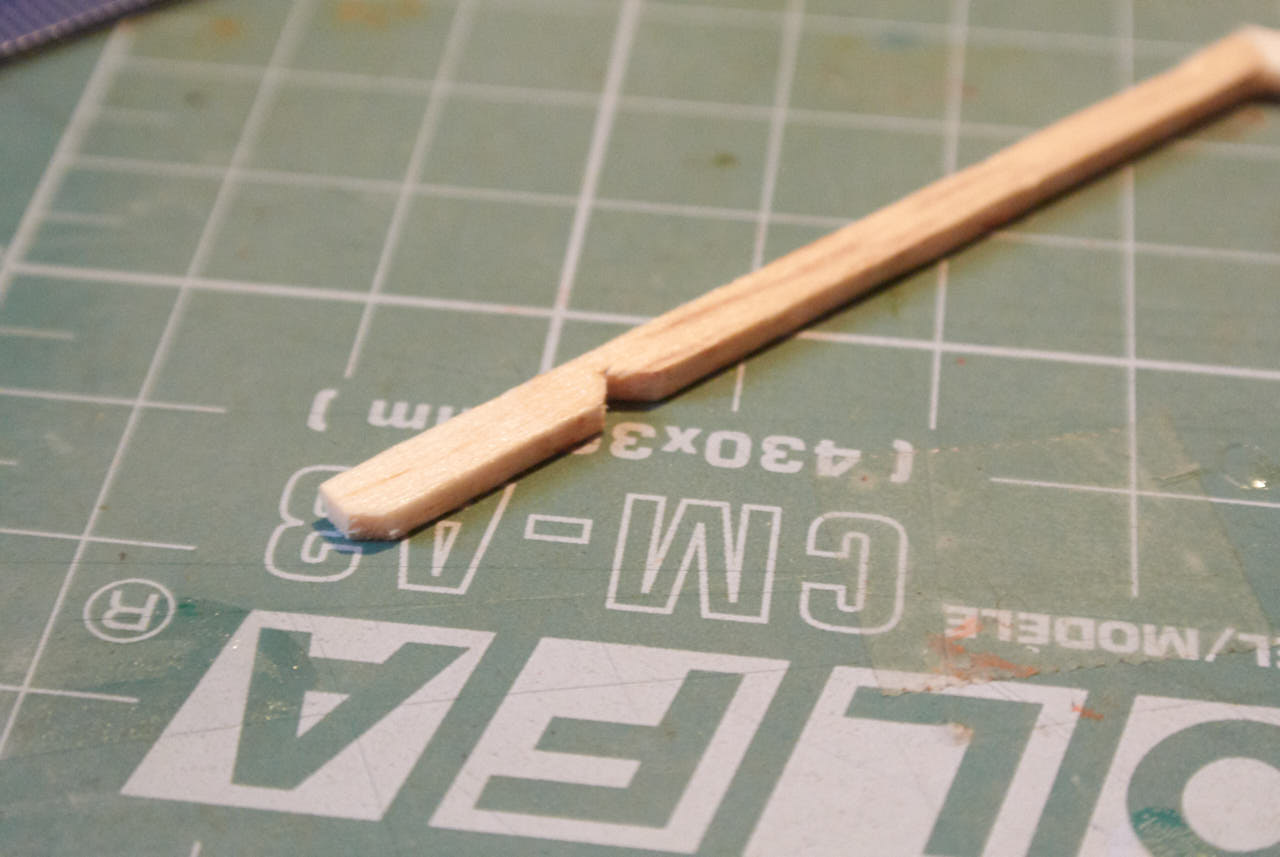

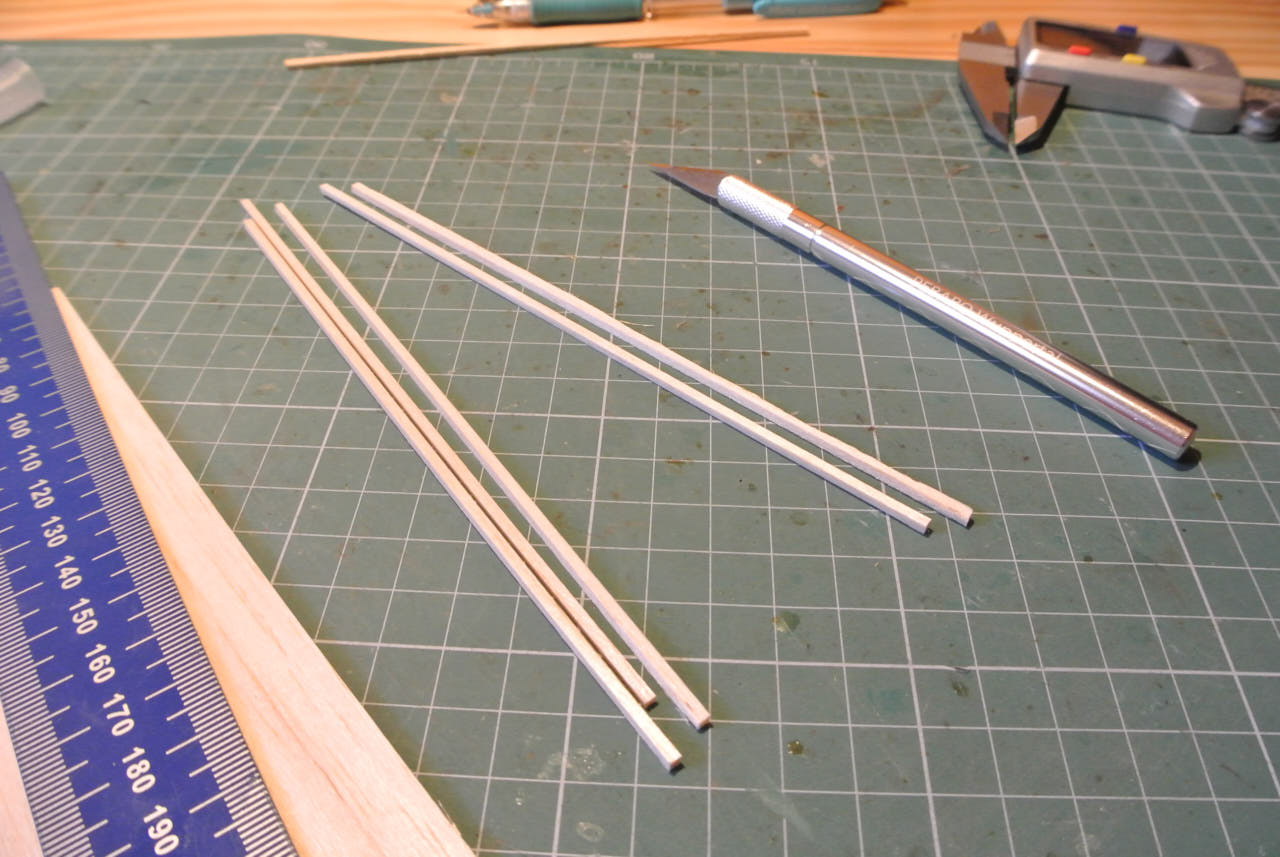

Rezanje letvica iz balse

Attachment:

loksupa_01.jpg [ 156.25 KiB | Viewed 24996 times ]

Sastavljanje zidova

Attachment:

loksupa_08.jpg [ 106.87 KiB | Viewed 24996 times ]

Osnova je gotova

Attachment:

loksupa_10.jpg [ 110.18 KiB | Viewed 24996 times ]

Za zidove sam uzeo gotovu stenu od Prosesa. Stenu je ofarbao majstor Jure.

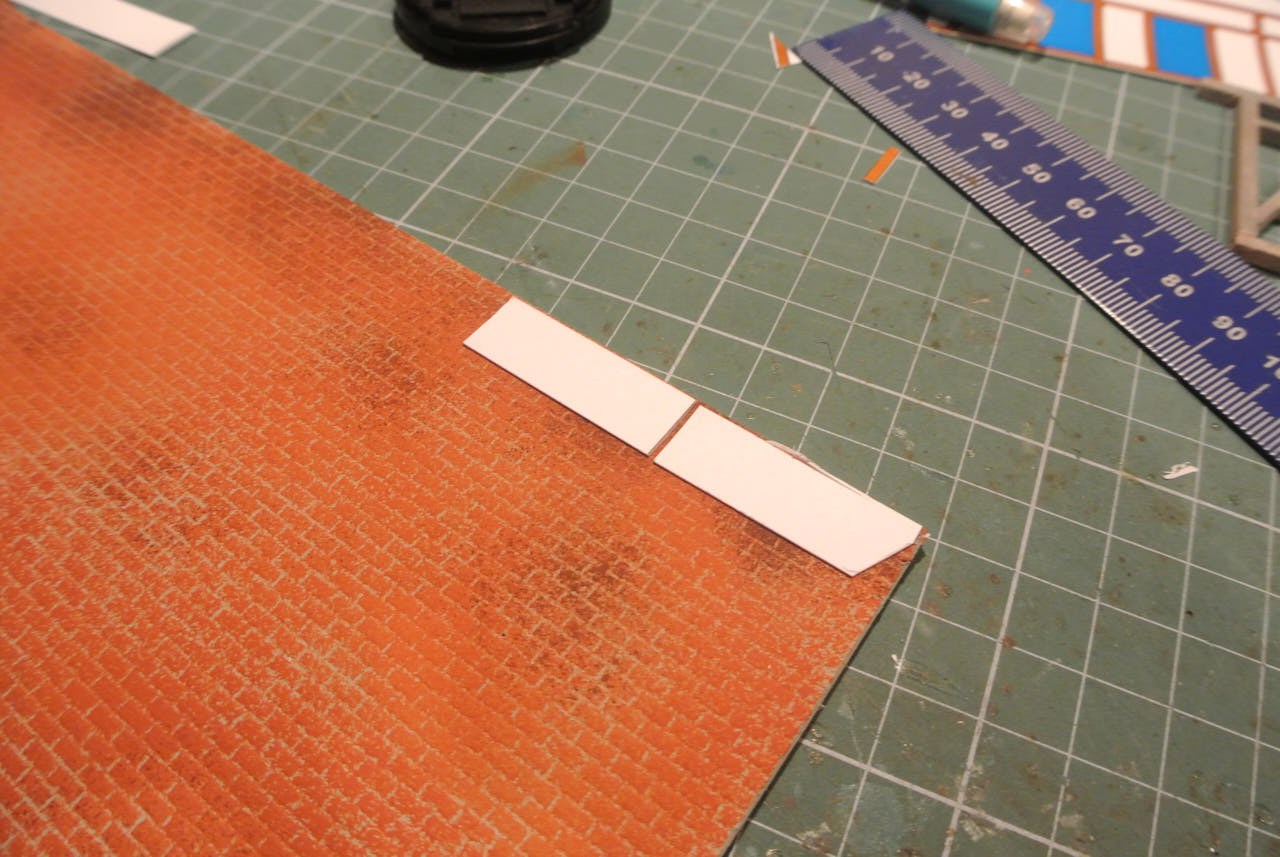

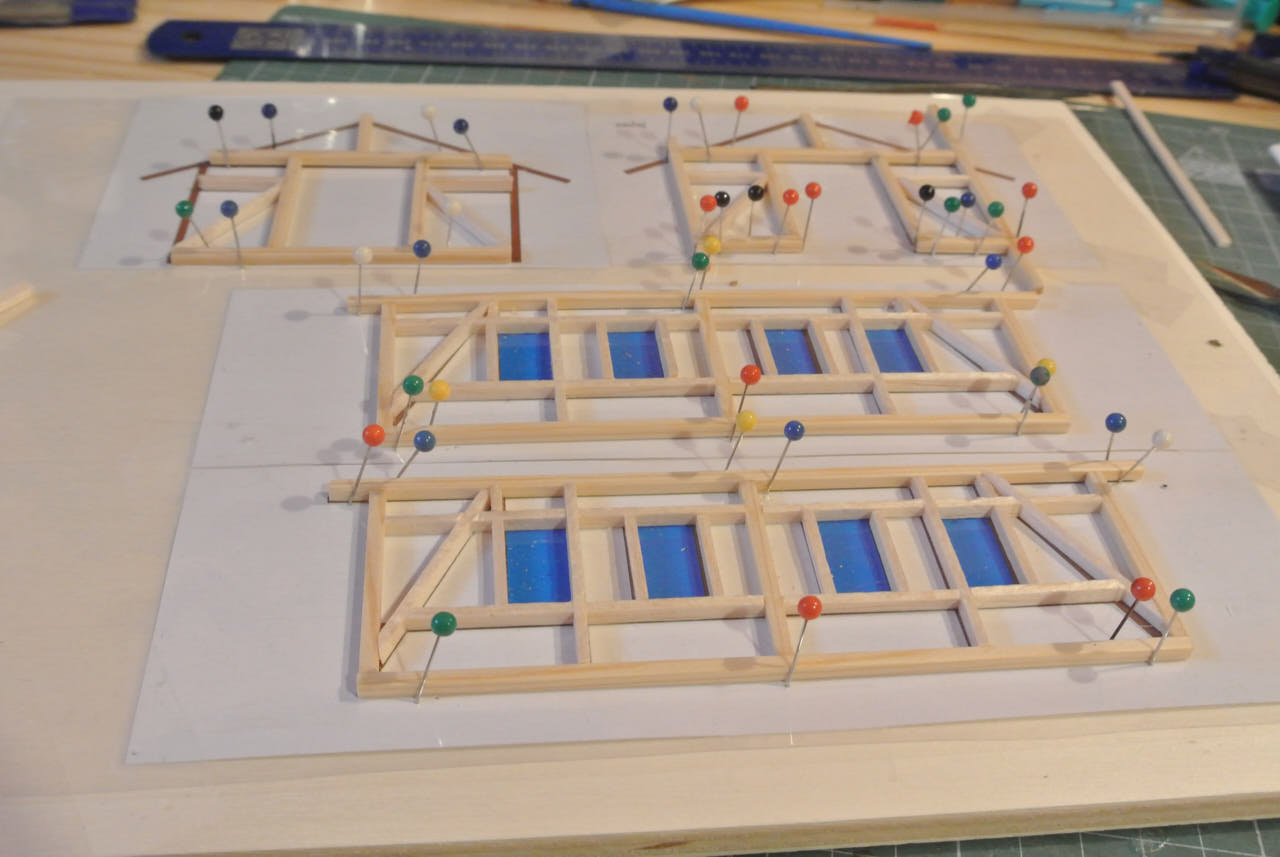

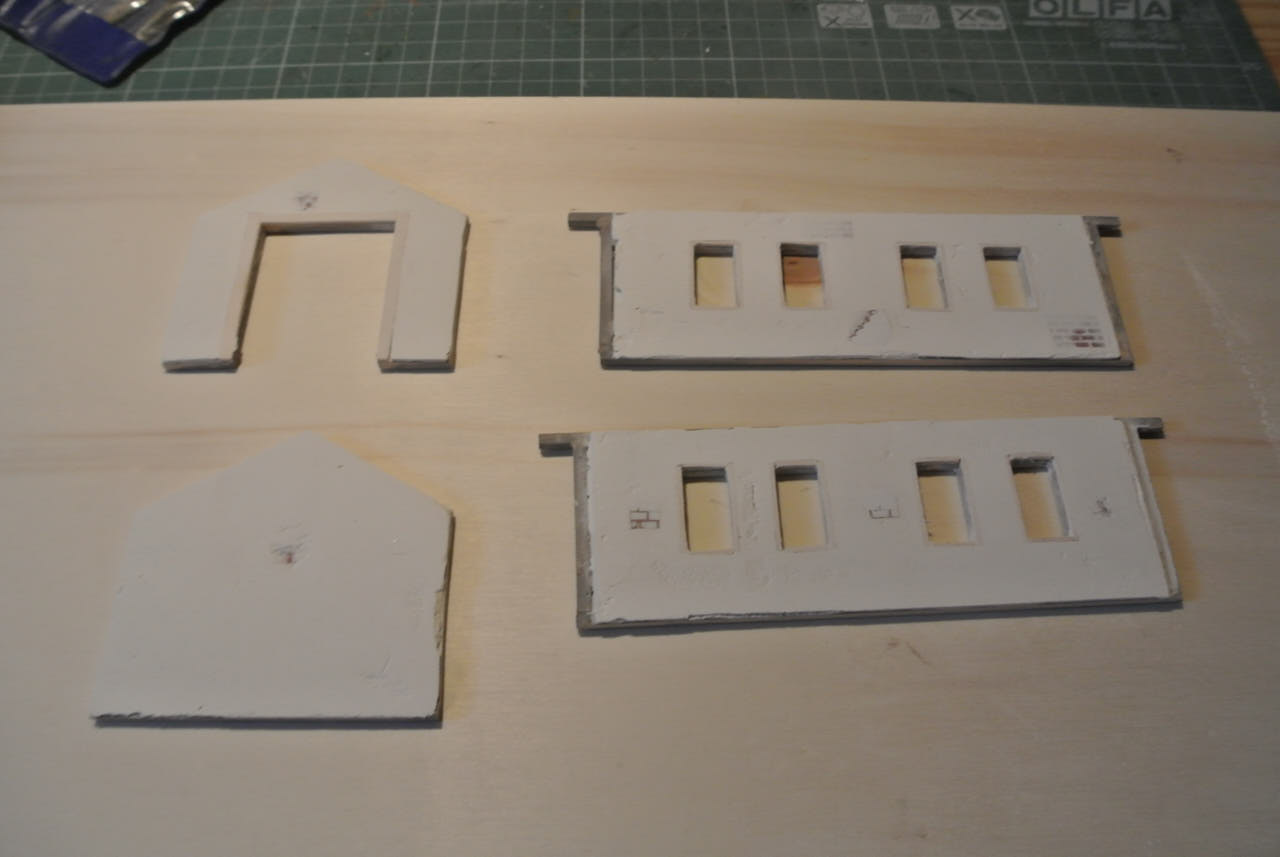

Za rezanje sam si napravio šablone

Attachment:

loksupa_12.jpg [ 166.45 KiB | Viewed 24996 times ]

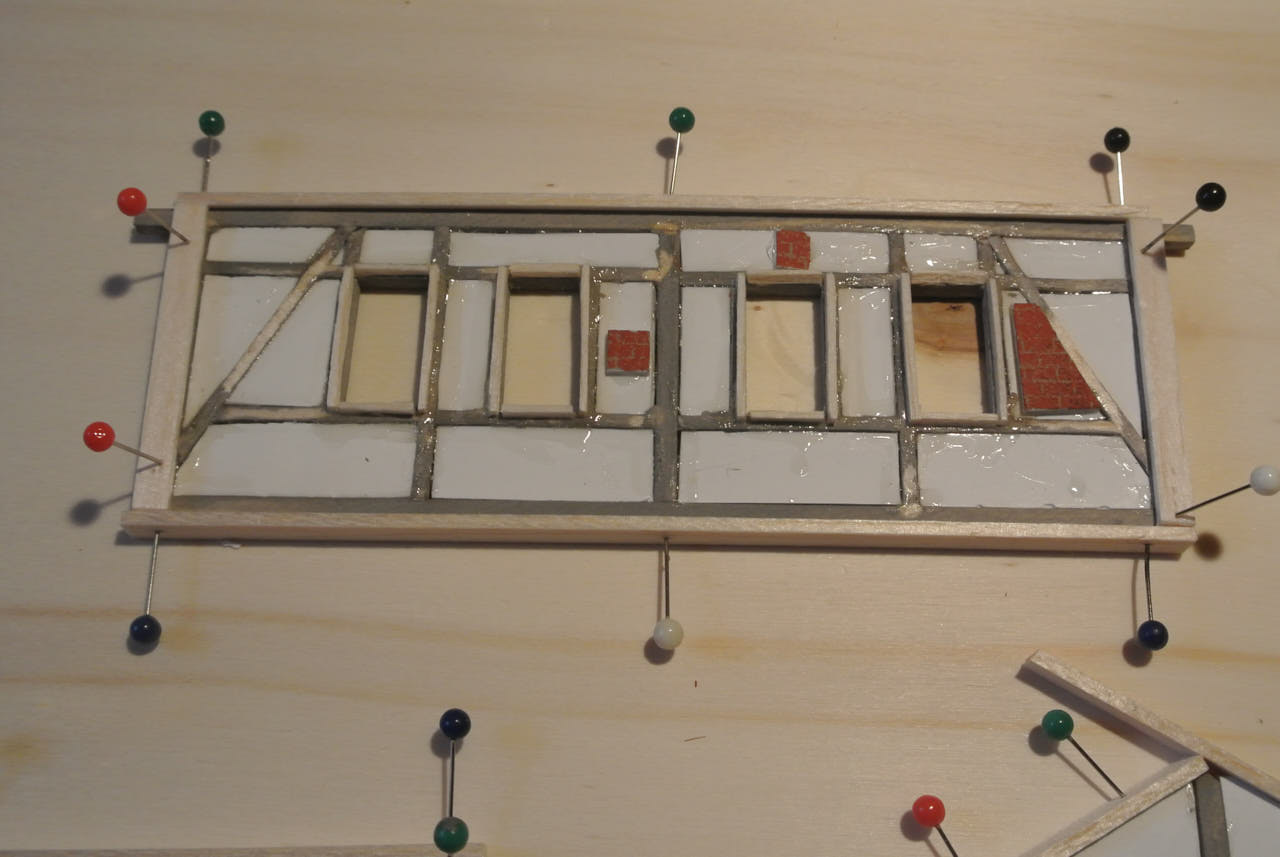

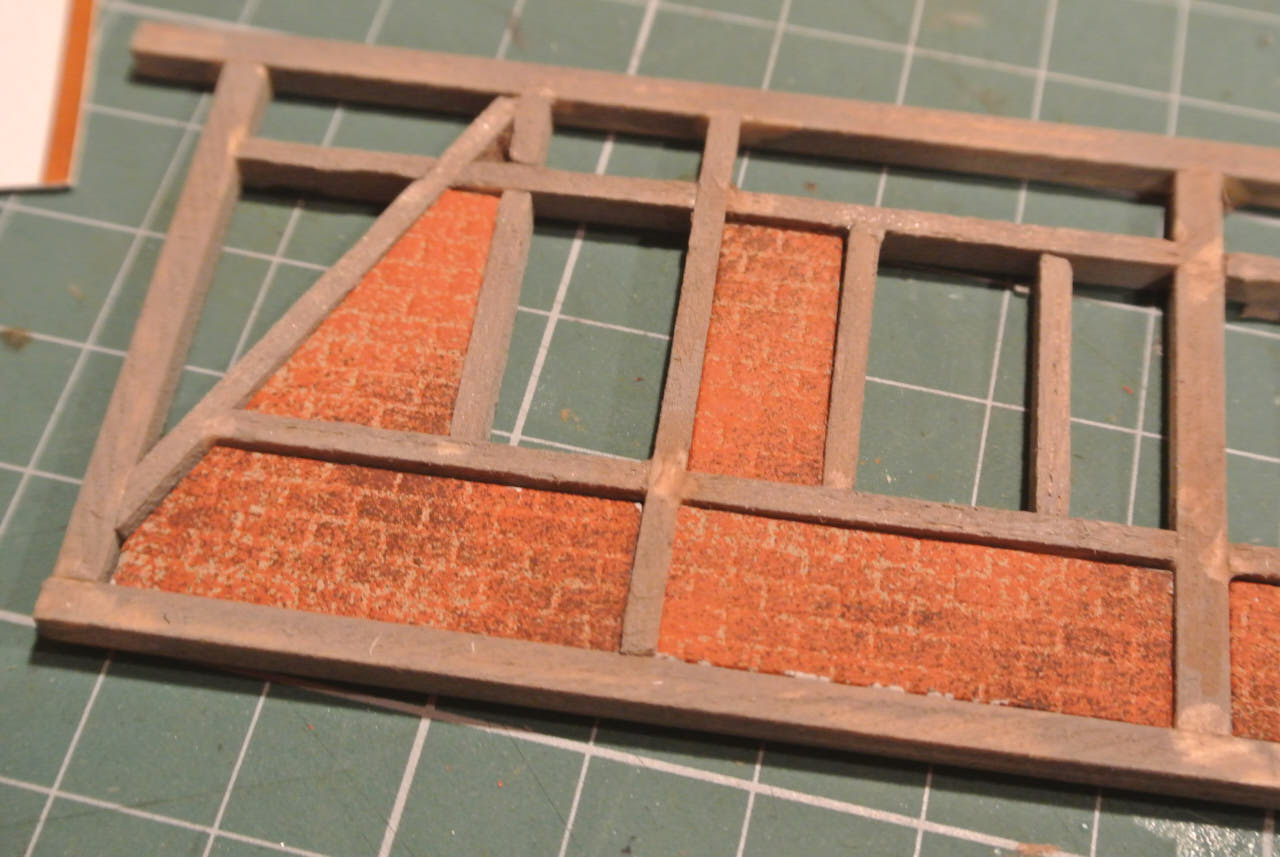

Sastavljanje stena

Attachment:

loksupa_15.jpg [ 137.11 KiB | Viewed 24996 times ]

Nastavlja se...

_________________
Lp,
Sebastjan

Modelne železnice

Last edited by Tjan70 on 04 Jan 2019, 07:43, edited 1 time in total.

Top

Tjan70

Post subject: Re: Modulna maketa H0e

Posted: 04 Jan 2019, 07:29

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

Probno sastavljanje

Attachment:

loksupa_16.jpg [ 111.37 KiB | Viewed 24995 times ]

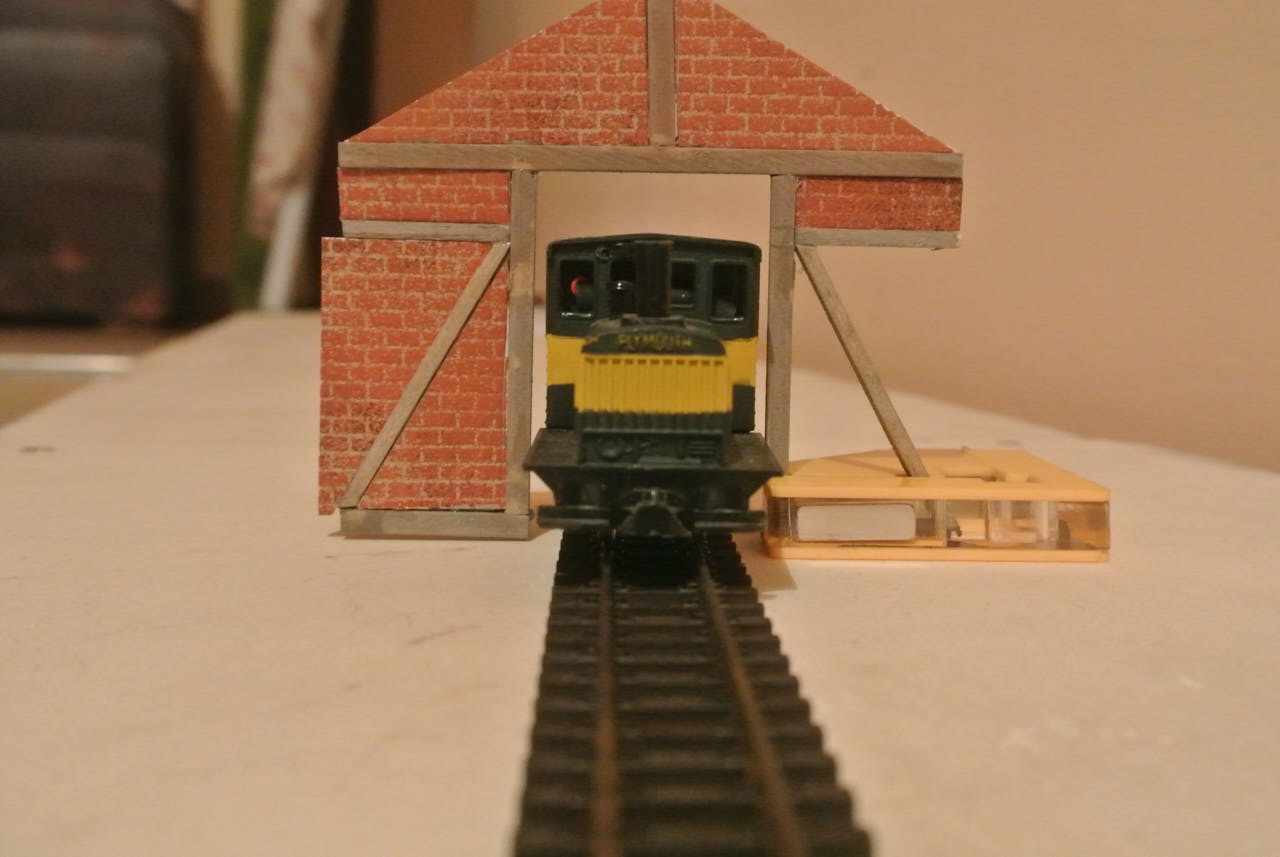

Testiranje širine vrata i manje korekture zbog različitih širina loksi

Attachment:

loksupa_17.jpg [ 78.78 KiB | Viewed 24995 times ]

Attachment:

loksupa_18.jpg [ 90.04 KiB | Viewed 24995 times ]

Attachment:

loksupa_19.jpg [ 85.1 KiB | Viewed 24995 times ]

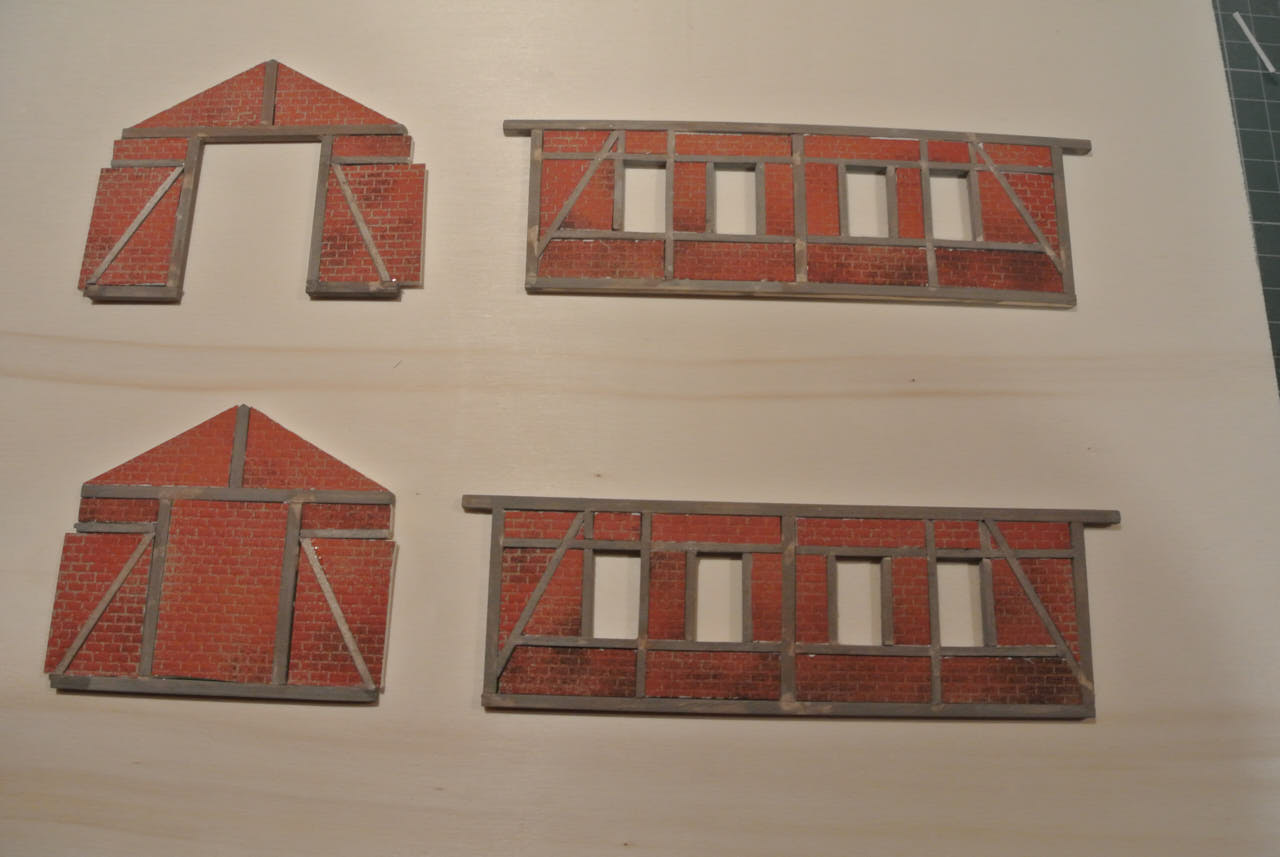

Stene su gotove sa vanjske strane

Attachment:

loksupa_20.jpg [ 96.13 KiB | Viewed 24995 times ]

Priprema kalupa za izradu unutrašnjih zidova

Attachment:

loksupa_28.jpg [ 93.62 KiB | Viewed 24995 times ]

Nastavlja se...

_________________
Lp,
Sebastjan

Modelne železnice

Top

Tjan70

Post subject: Re: Modulna maketa H0e

Posted: 04 Jan 2019, 07:34

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

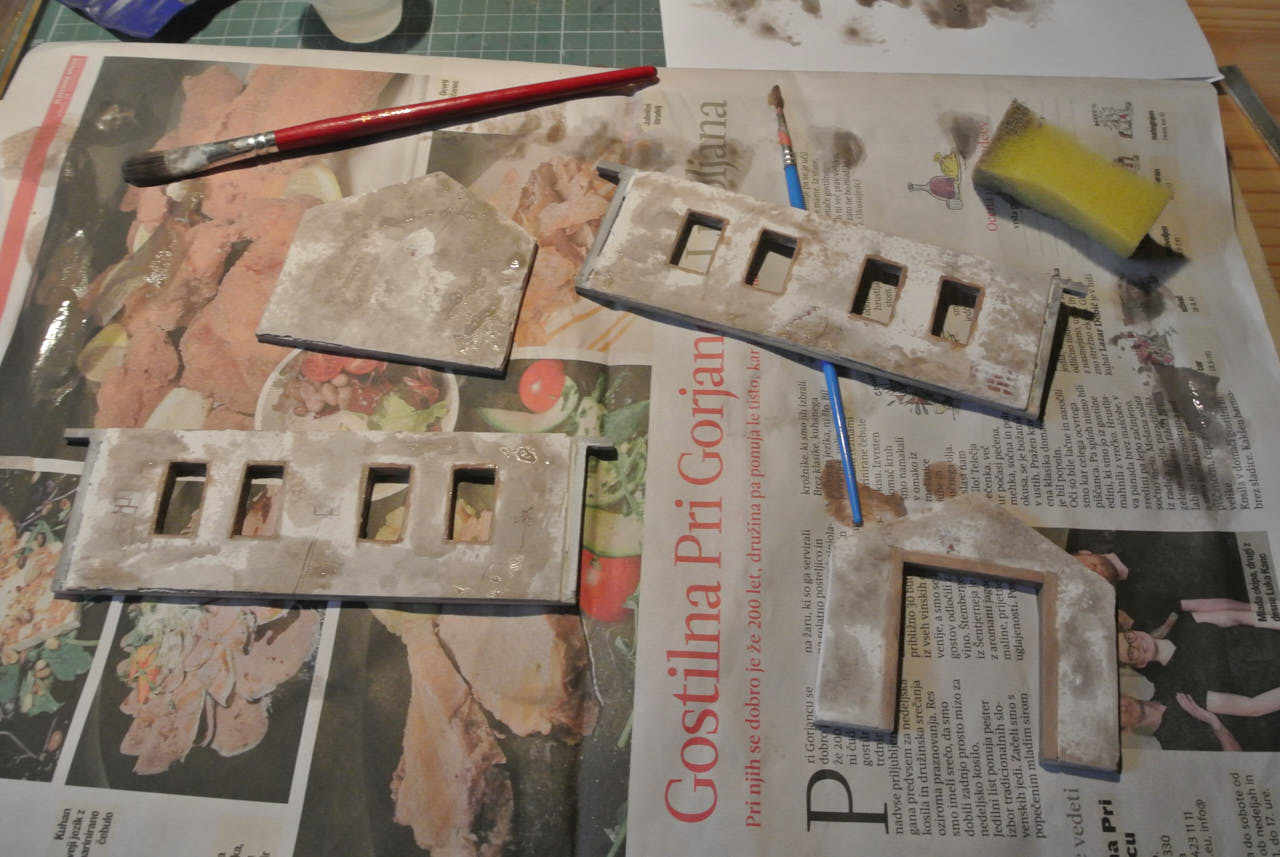

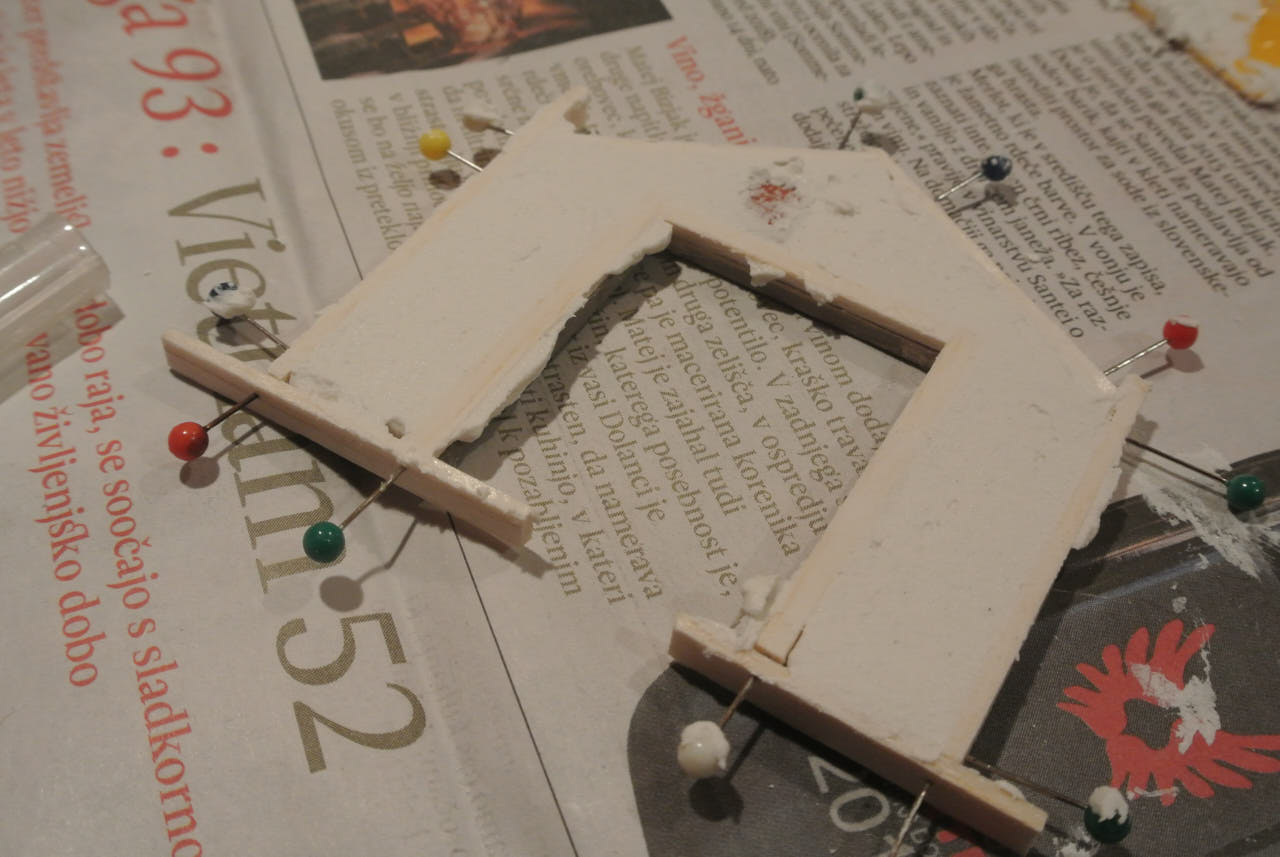

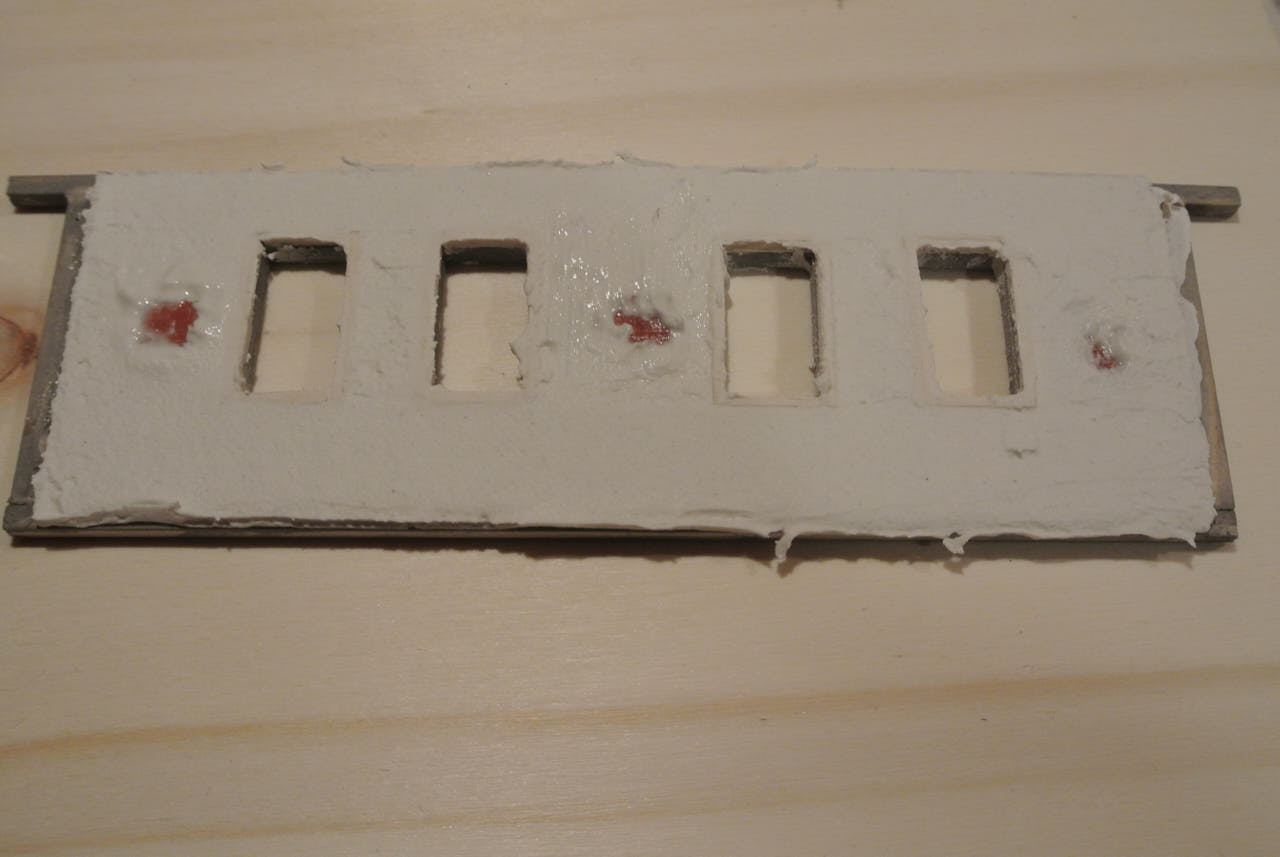

Izrada unutrašnjih stena. Stene sam radio sa Jubolin kitom

Attachment:

loksupa_29.jpg [ 117.88 KiB | Viewed 24995 times ]

Attachment:

loksupa_30.jpg [ 70.81 KiB | Viewed 24995 times ]

Gotove stene prije staranja

Attachment:

loksupa_31.jpg [ 66.5 KiB | Viewed 24995 times ]

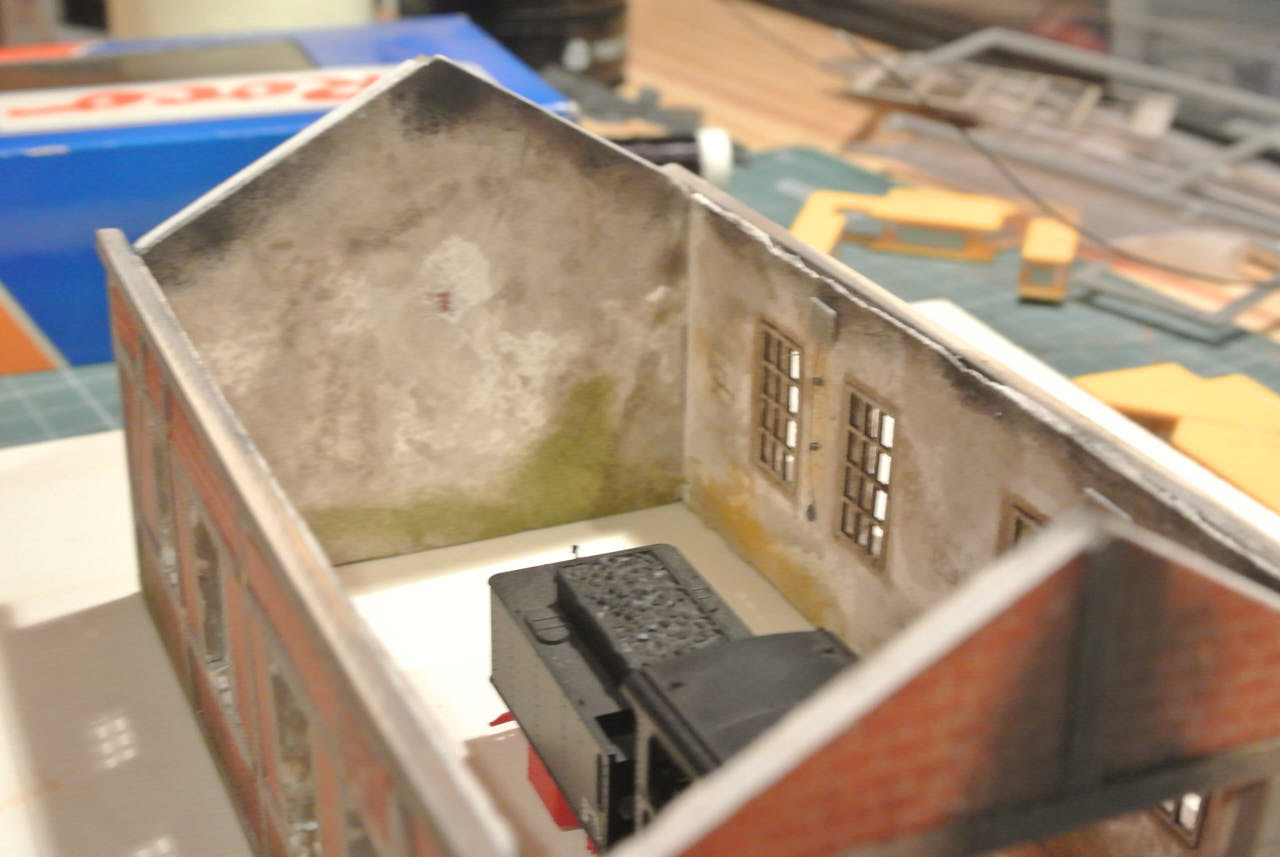

Testno sastavljanje

Attachment:

loksupa_33.jpg [ 93.34 KiB | Viewed 24995 times ]

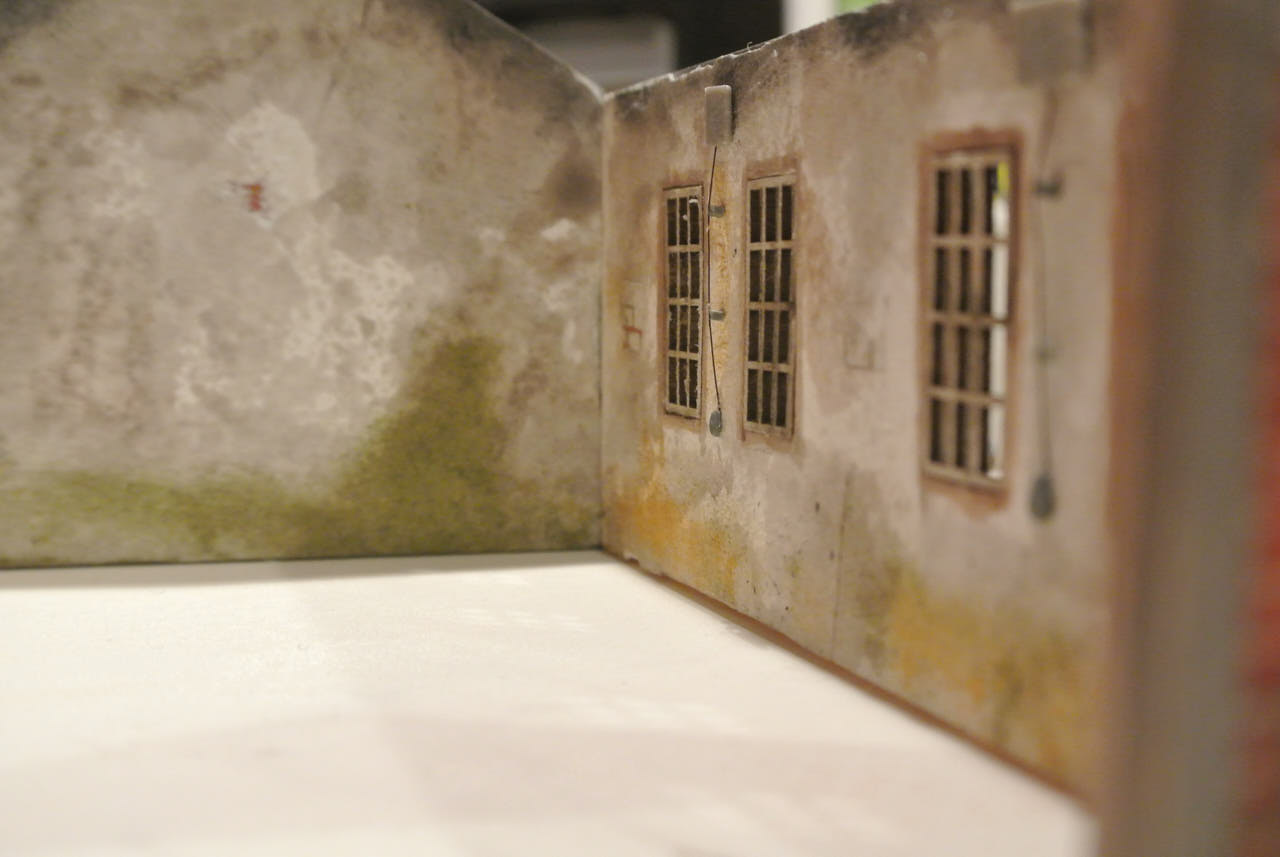

Staranje stena

Attachment:

loksupa_36.jpg [ 152.37 KiB | Viewed 24995 times ]

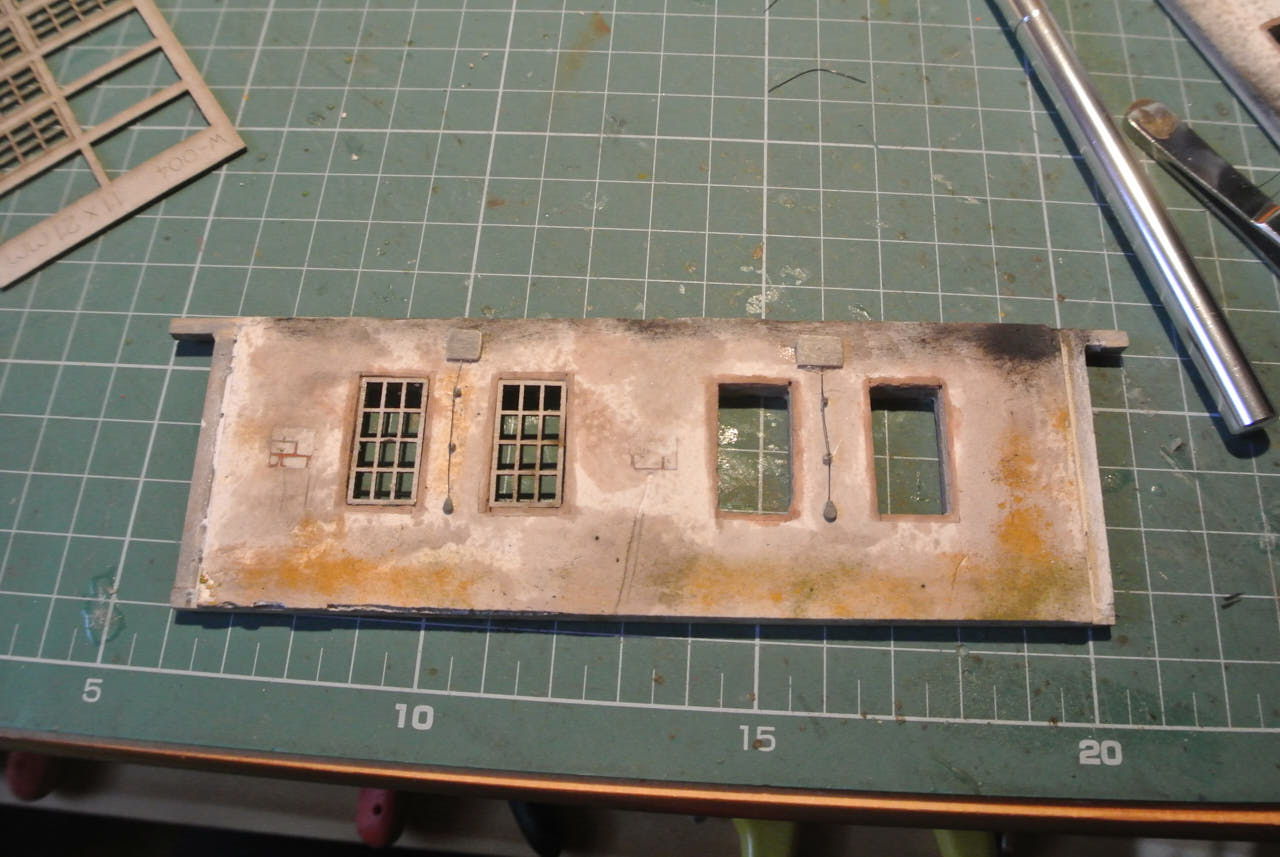

Manji detajli na stenama

Attachment:

loksupa_37.jpg [ 144.81 KiB | Viewed 24995 times ]

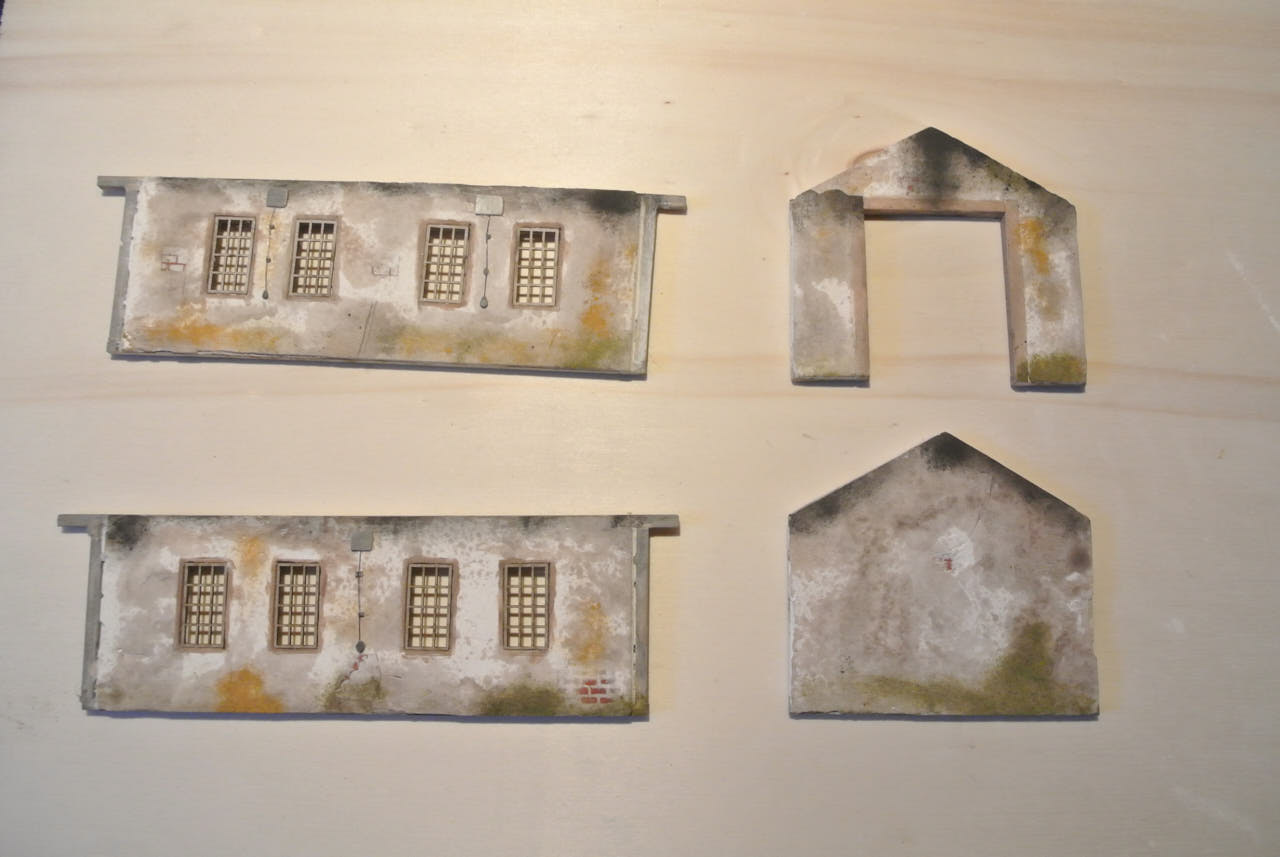

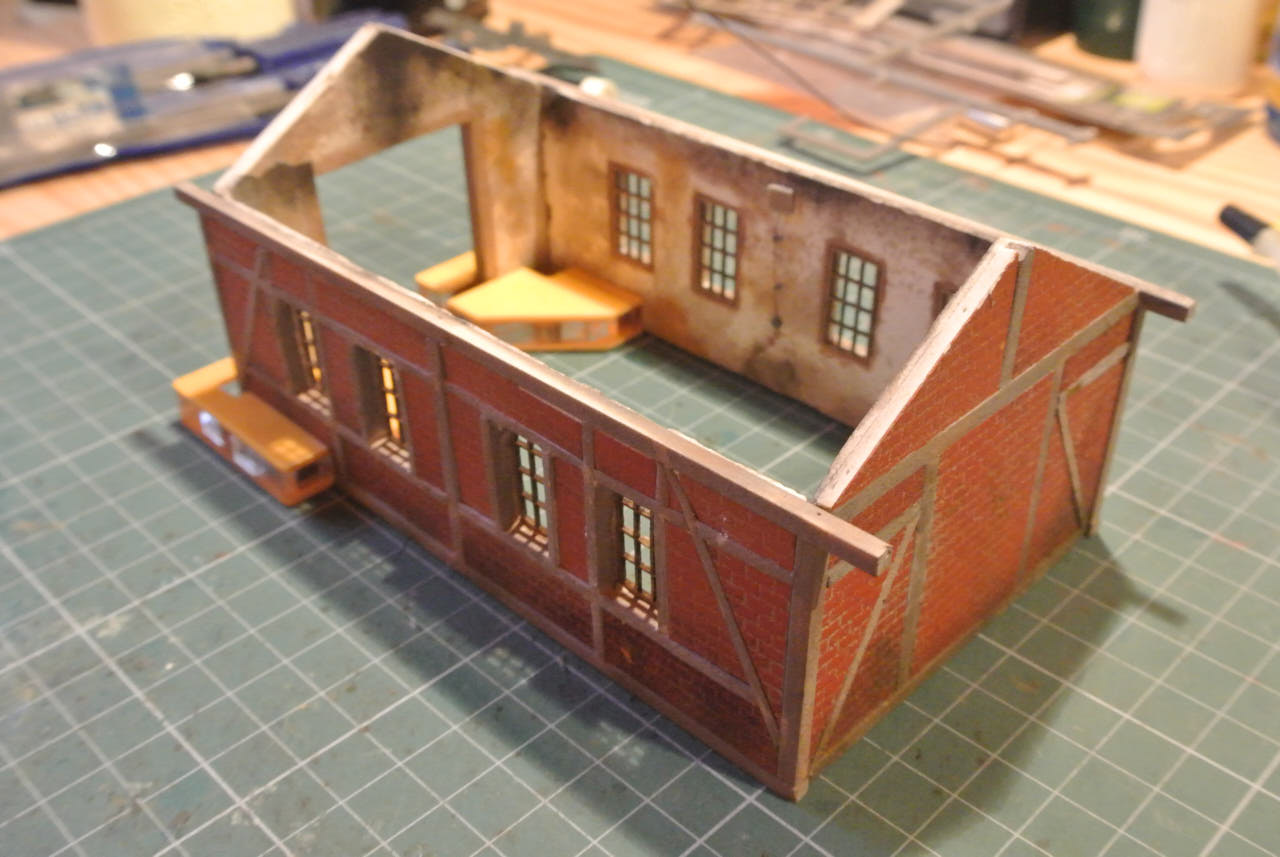

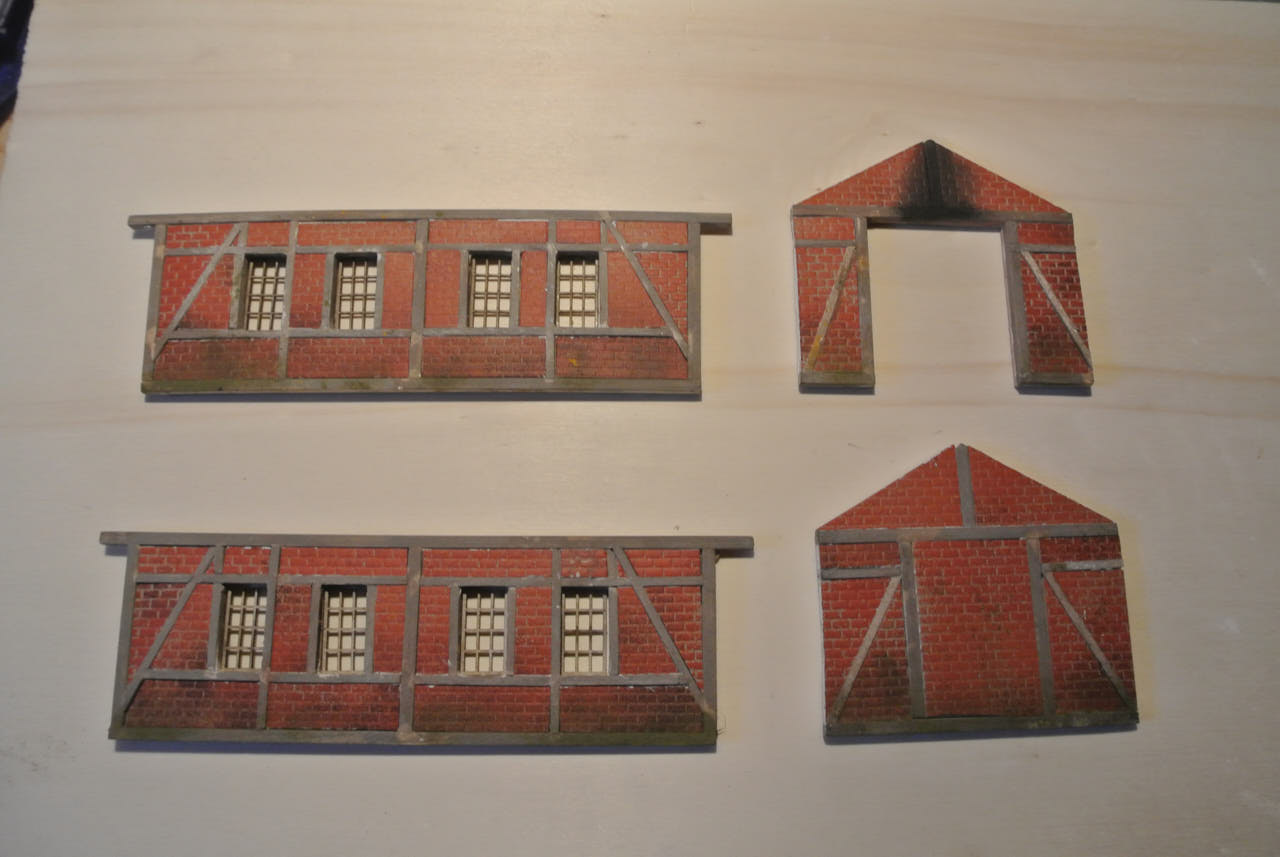

I gotove stene,
sa vanjske strane

Attachment:

loksupa_38.jpg [ 99.69 KiB | Viewed 24995 times ]

i sa druge strane

Attachment:

loksupa_39.jpg [ 91.87 KiB | Viewed 24995 times ]

Nastavlja se...

_________________
Lp,
Sebastjan

Modelne železnice

Top

Tjan70

Post subject: Re: Modulna maketa H0e

Posted: 04 Jan 2019, 07:38

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

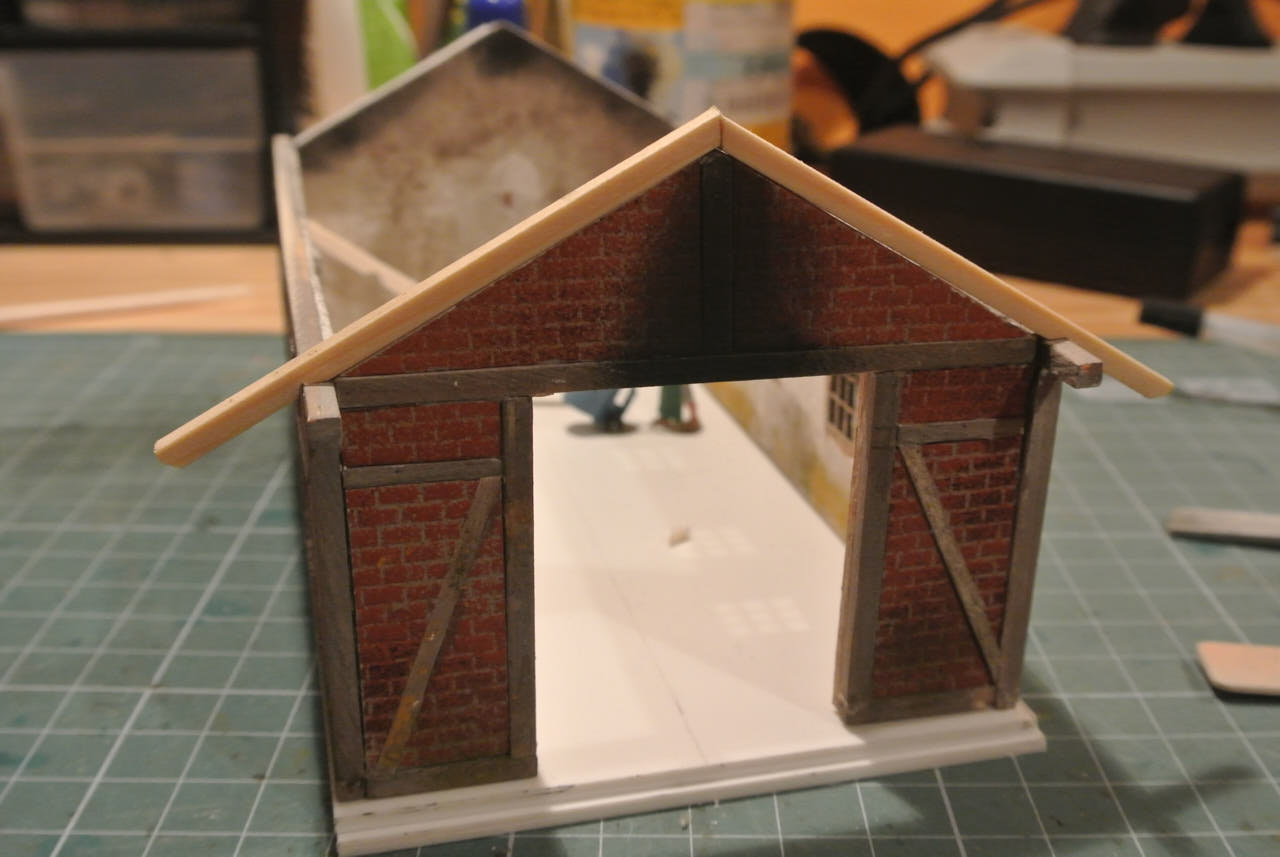

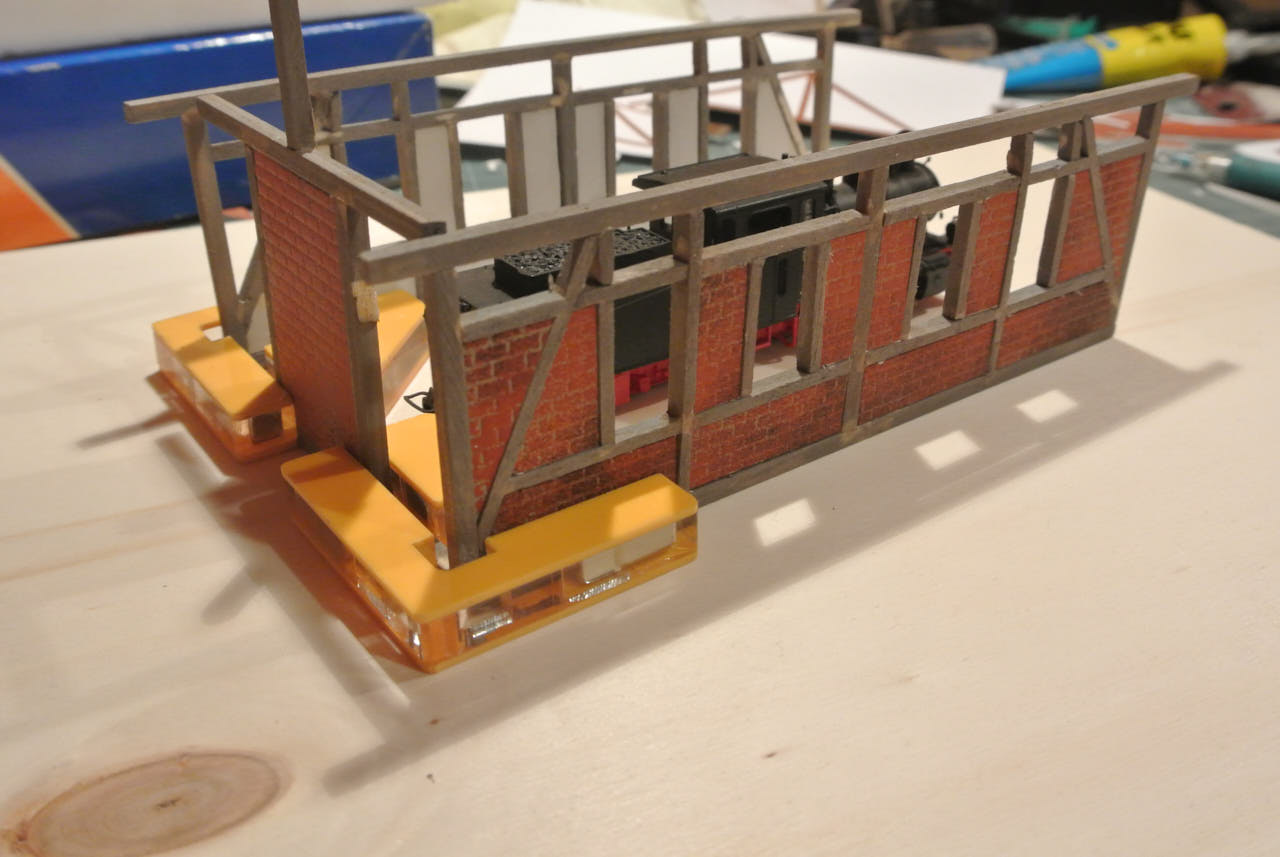

Konačno sastavljanje

Attachment:

loksupa_40.jpg [ 131.72 KiB | Viewed 24995 times ]

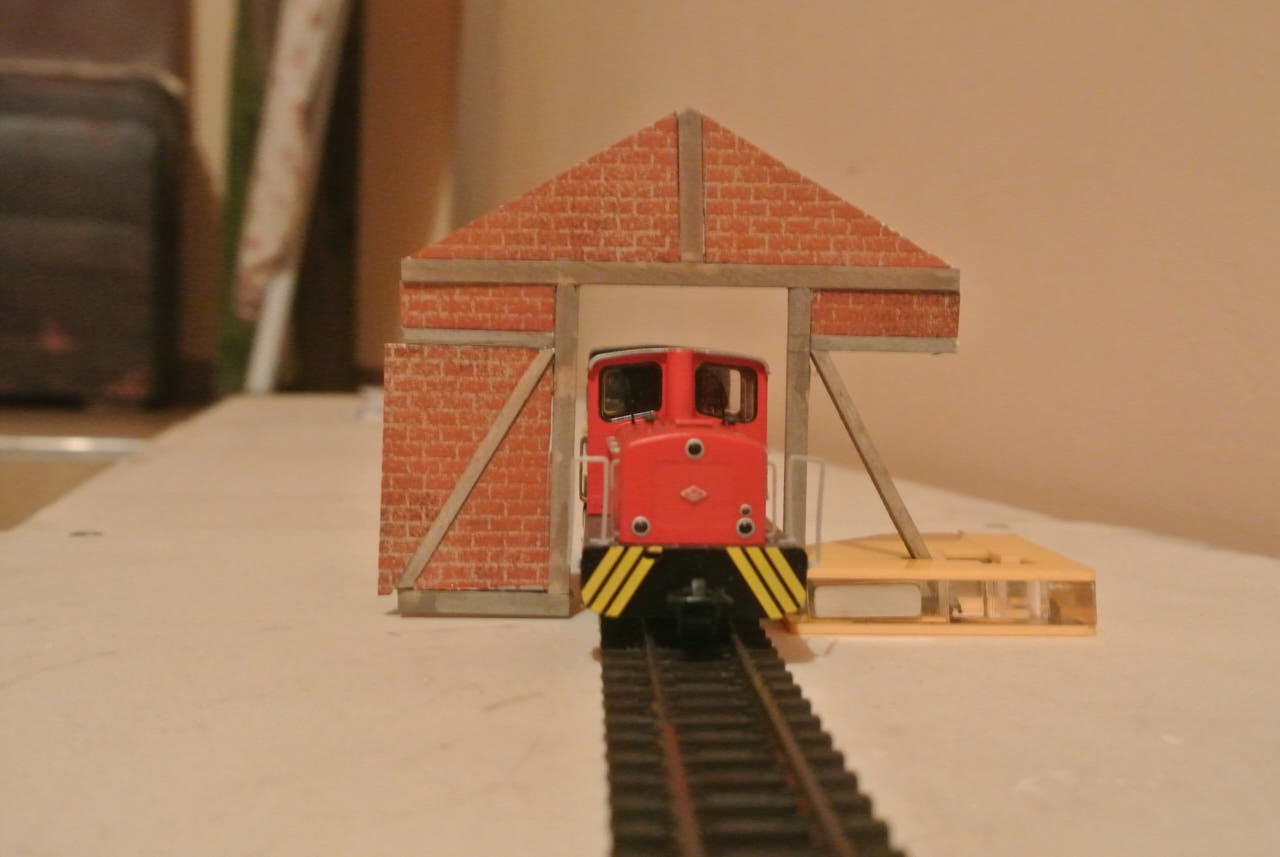

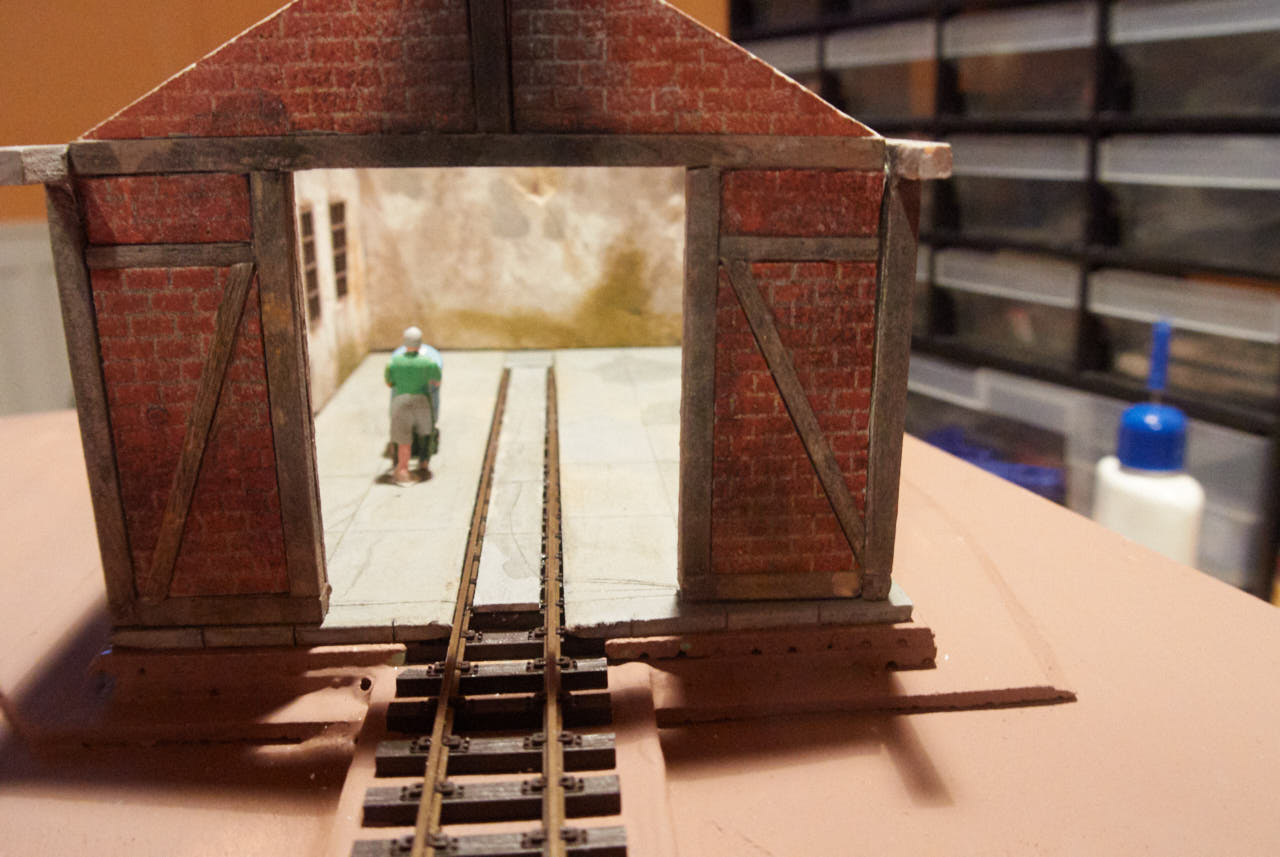

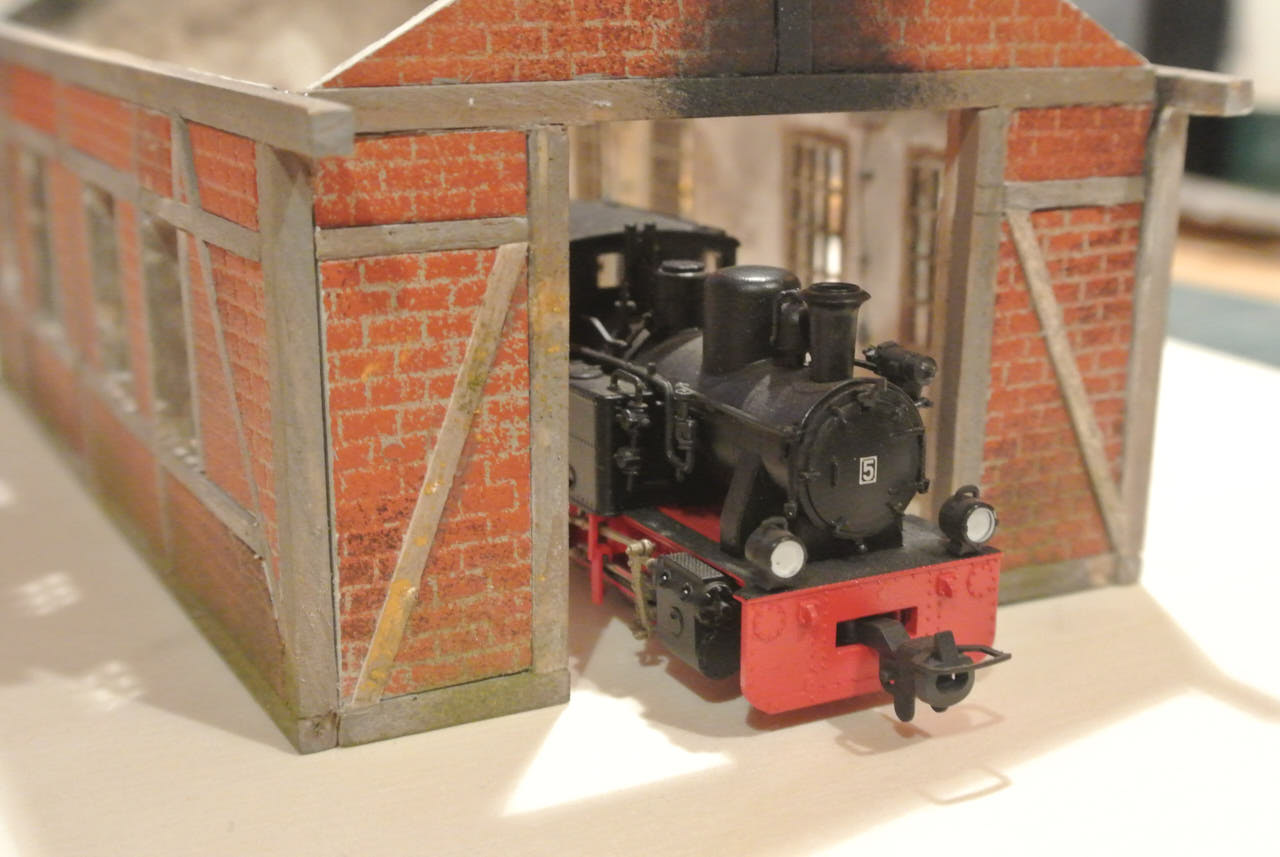

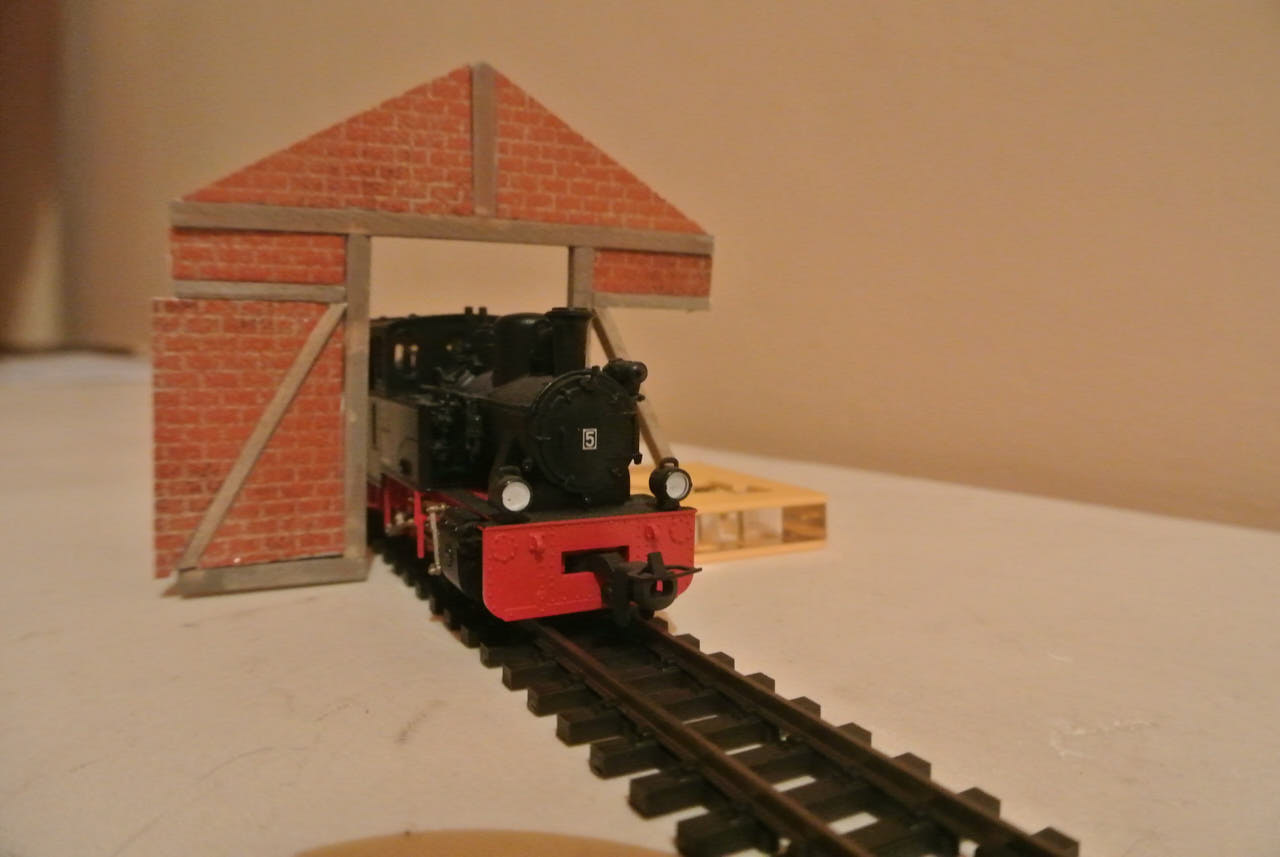

I test sa lokomotivom

Attachment:

loksupa_42.jpg [ 124.35 KiB | Viewed 24995 times ]

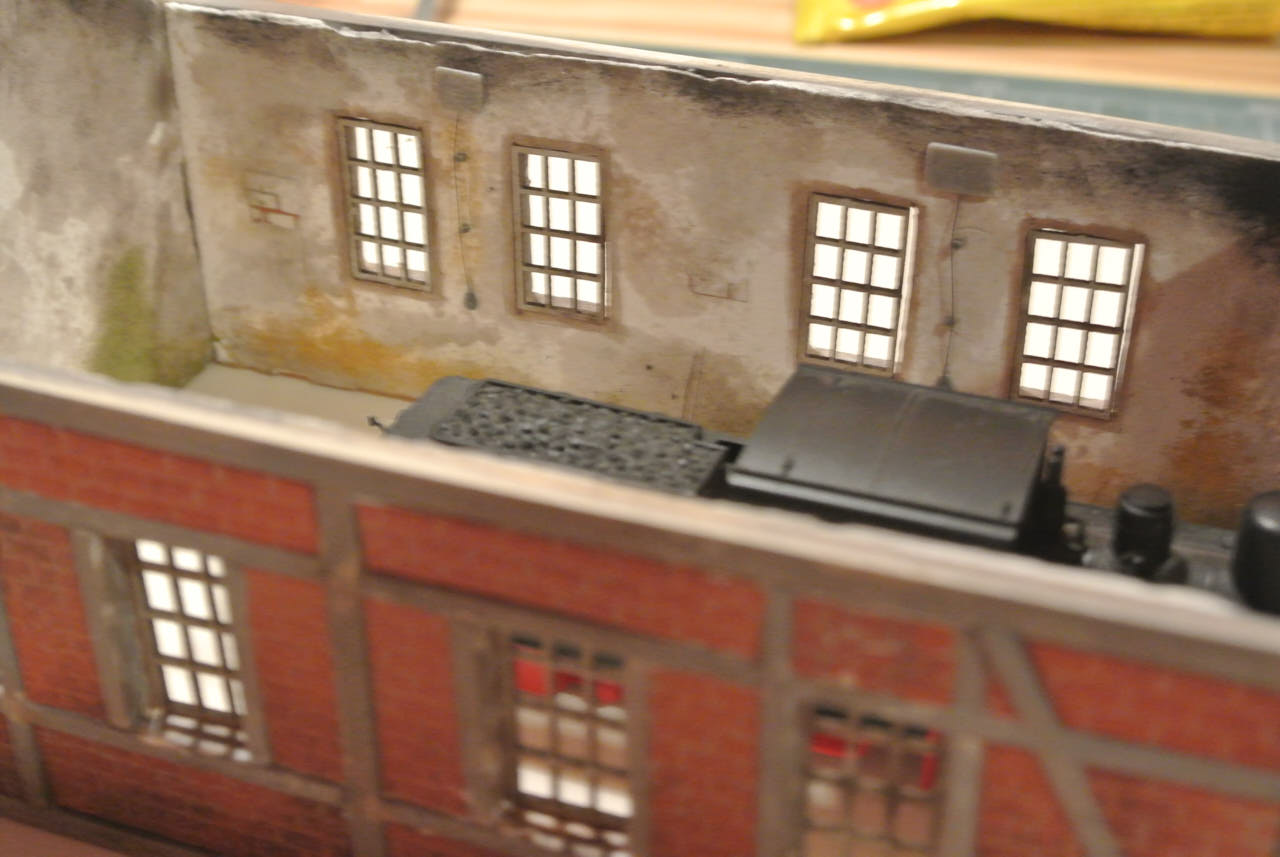

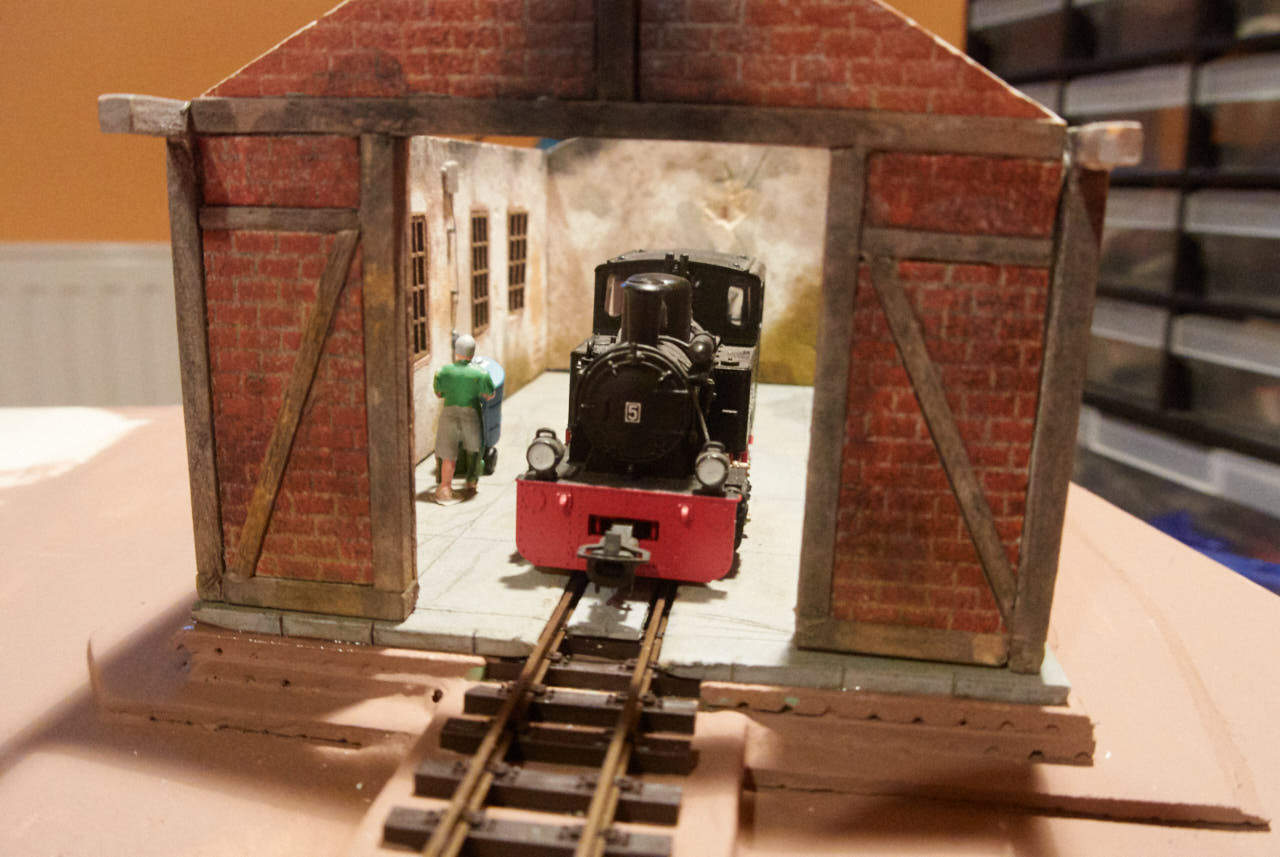

Ovako izgleda lokšupa po 1. fazi.

Attachment:

loksupa_43.jpg [ 110.22 KiB | Viewed 24995 times ]

Attachment:

loksupa_44.jpg [ 115.24 KiB | Viewed 24995 times ]

Attachment:

loksupa_46.jpg [ 84.78 KiB | Viewed 24995 times ]

Toliko za danas.

Više o samoj izradi možete vidjeti na mojoj web stranici
https://www.potepanja.eu/modelarstvo/de ... no-maketo/

_________________
Lp,
Sebastjan

Modelne železnice

Top

Daco

Post subject: Re: Modulna maketa H0e

Posted: 04 Jan 2019, 07:47

Site Admin

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb

Hvala na prezentaciji novog projekta!

Pratimo dalje... prugica

Top

sini

Post subject: Re: Modulna maketa H0e

Posted: 04 Jan 2019, 08:47

Joined: 25 Sep 2012, 15:10
Posts: 3353

Hojla,

lepo da si se vrnil in nam pokazal kaj sedaj nastaja pri tebi,

lok šupa bo ko bo končana zelo detaljno narejena,sam tak naprej

LP Sini

Top

mrva150

Post subject: Re: Modulna maketa H0e

Posted: 04 Jan 2019, 19:13

Joined: 15 Apr 2012, 13:48
Posts: 712

vidim stize novi projekt
jedva cekam nastavak radova i nove fotke

:greetings-wavegreen:

_________________
http://www.facebook.com/groups/malezeljeznice/

Top

Tjan70

Post subject: Re: Modulna maketa H0e

Posted: 05 Jan 2019, 14:49

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

Hvala, momci.

Idemo dalje sa izradom betonskog poda u lokšupi.
Za osnovu sam uzeo 2 mm stiren.

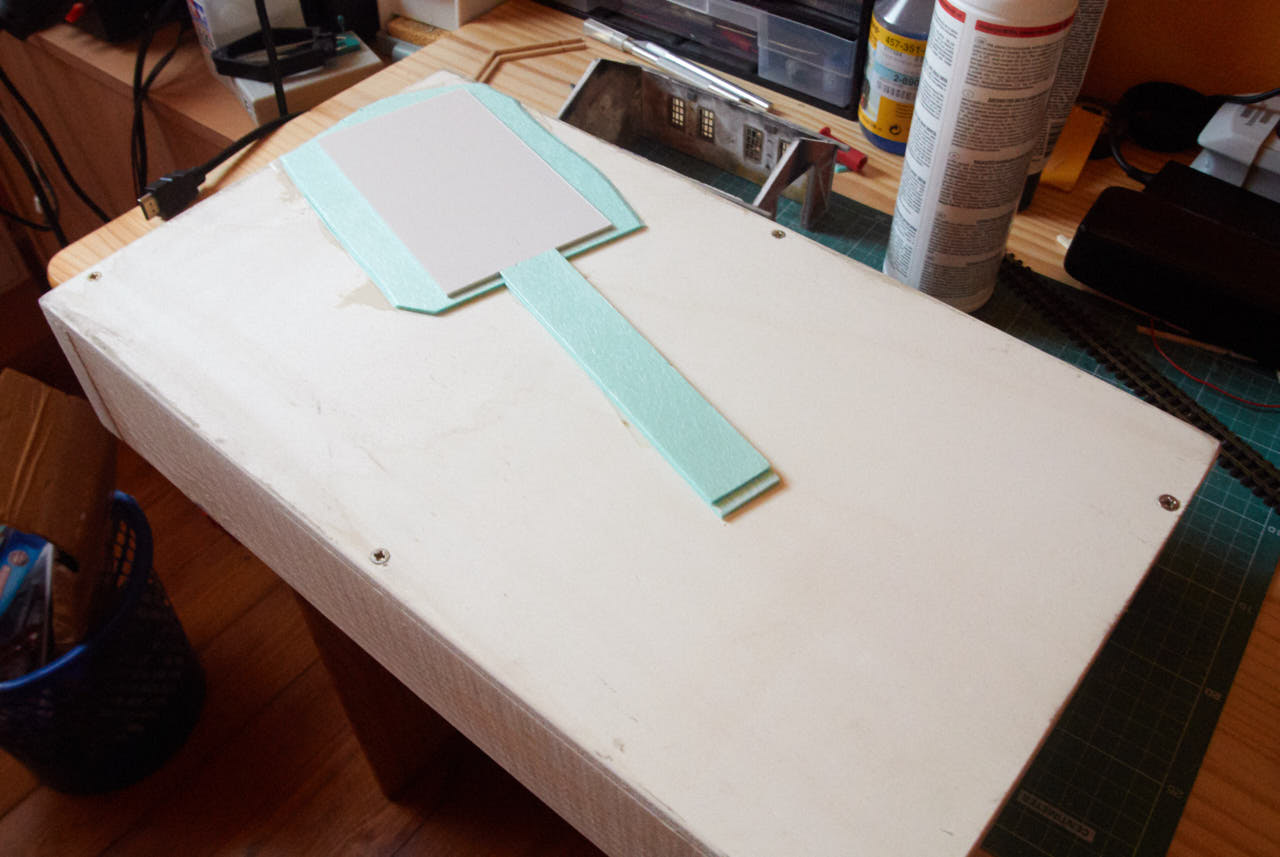

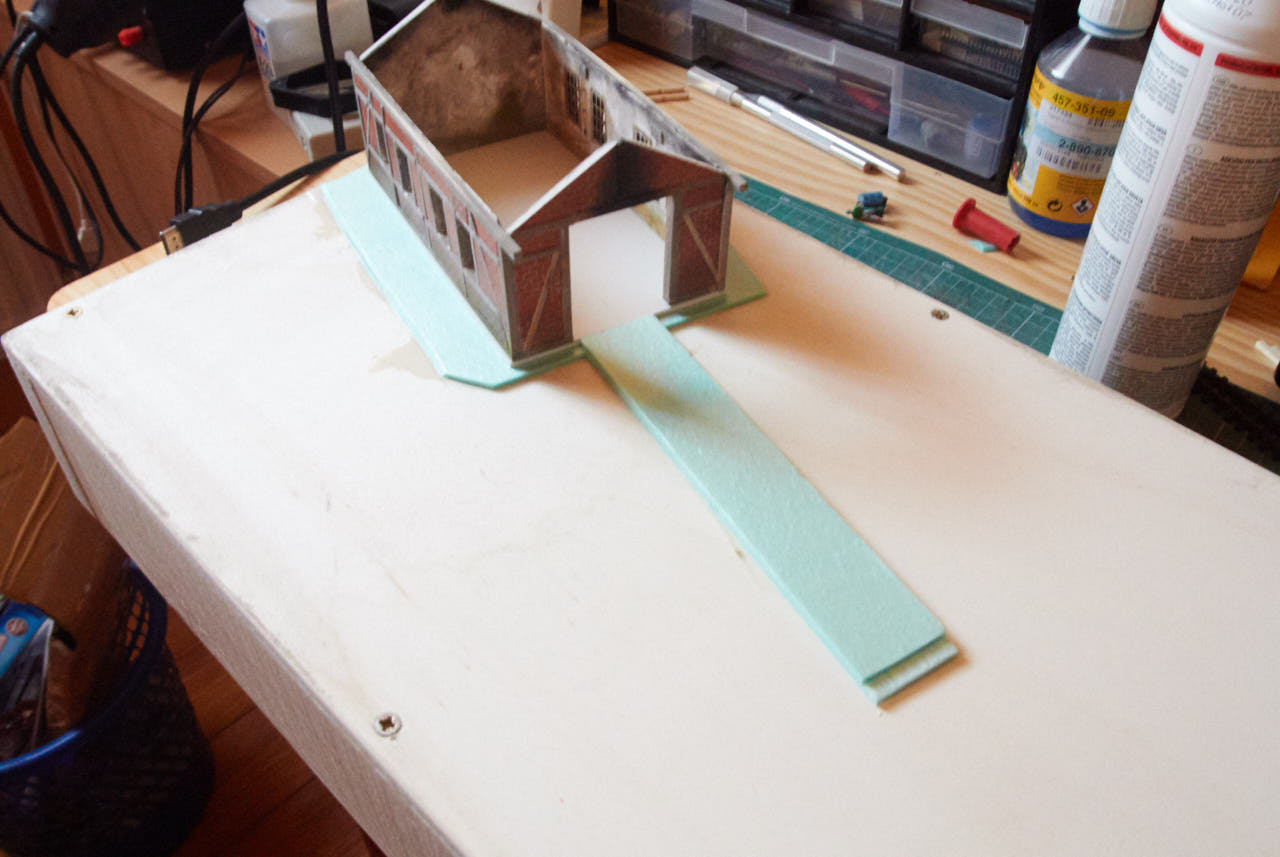

Postavljanje podloge na modul. Osnovna podloga je 2 mm podloga za laminat.

Attachment:

loksupa_50.jpg [ 111.23 KiB | Viewed 24966 times ]

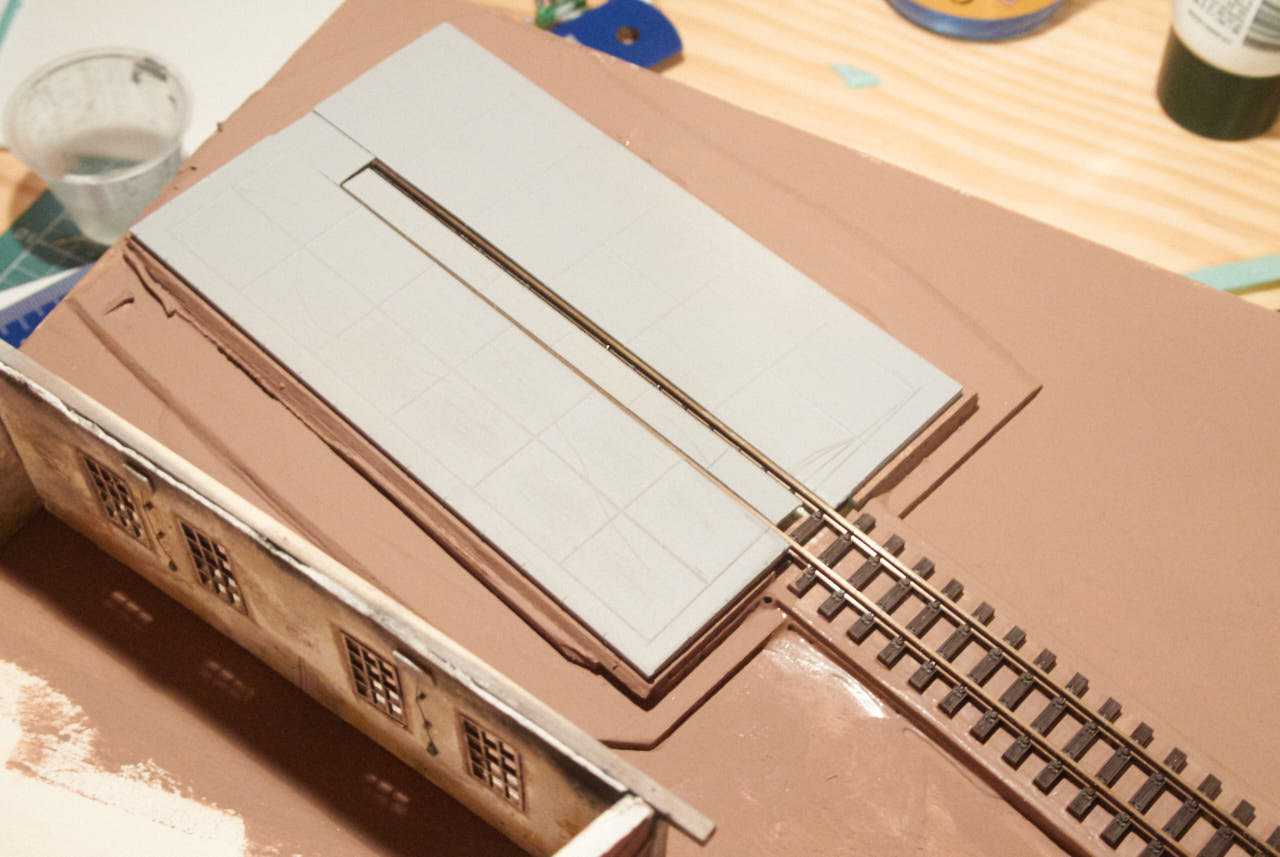

Provjera, ako sve štima.

Attachment:

loksupa_51.jpg [ 115.94 KiB | Viewed 24966 times ]

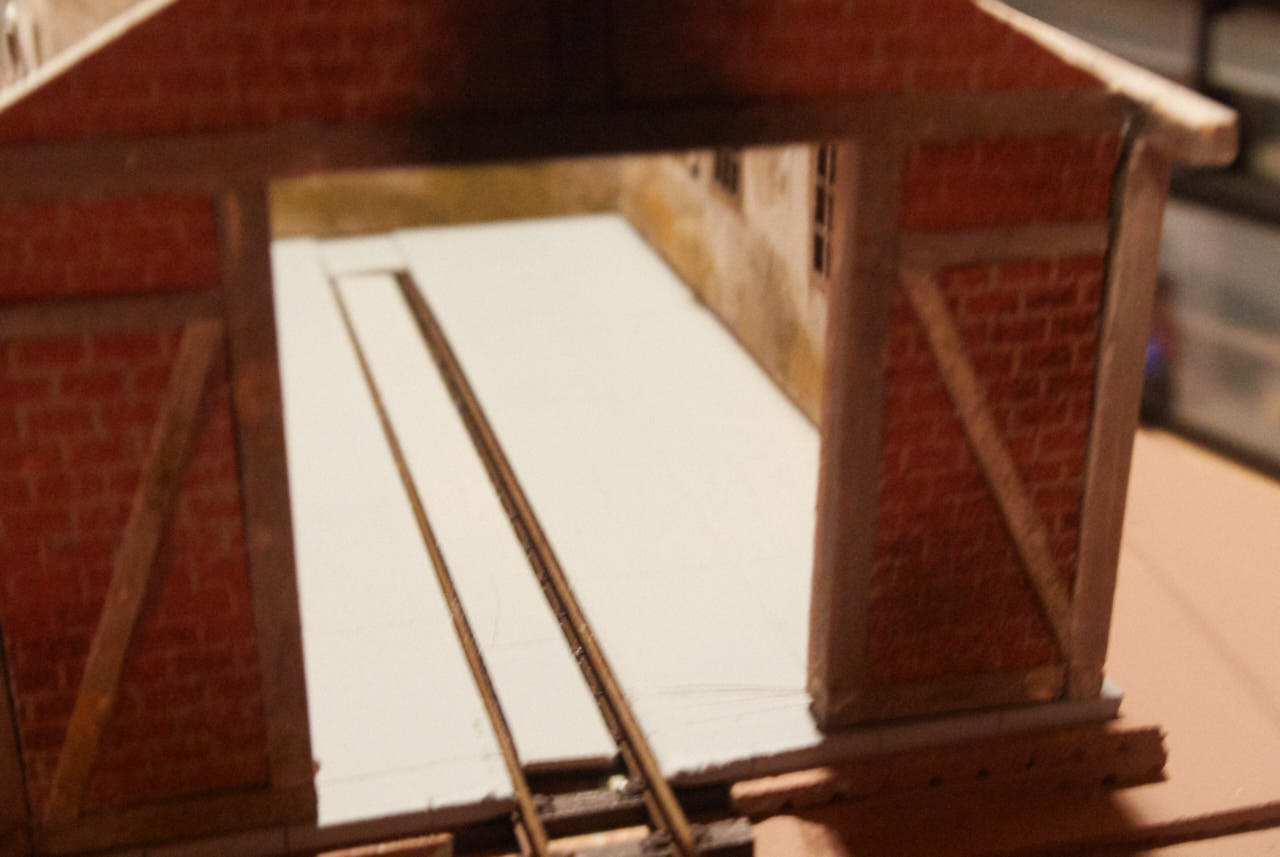

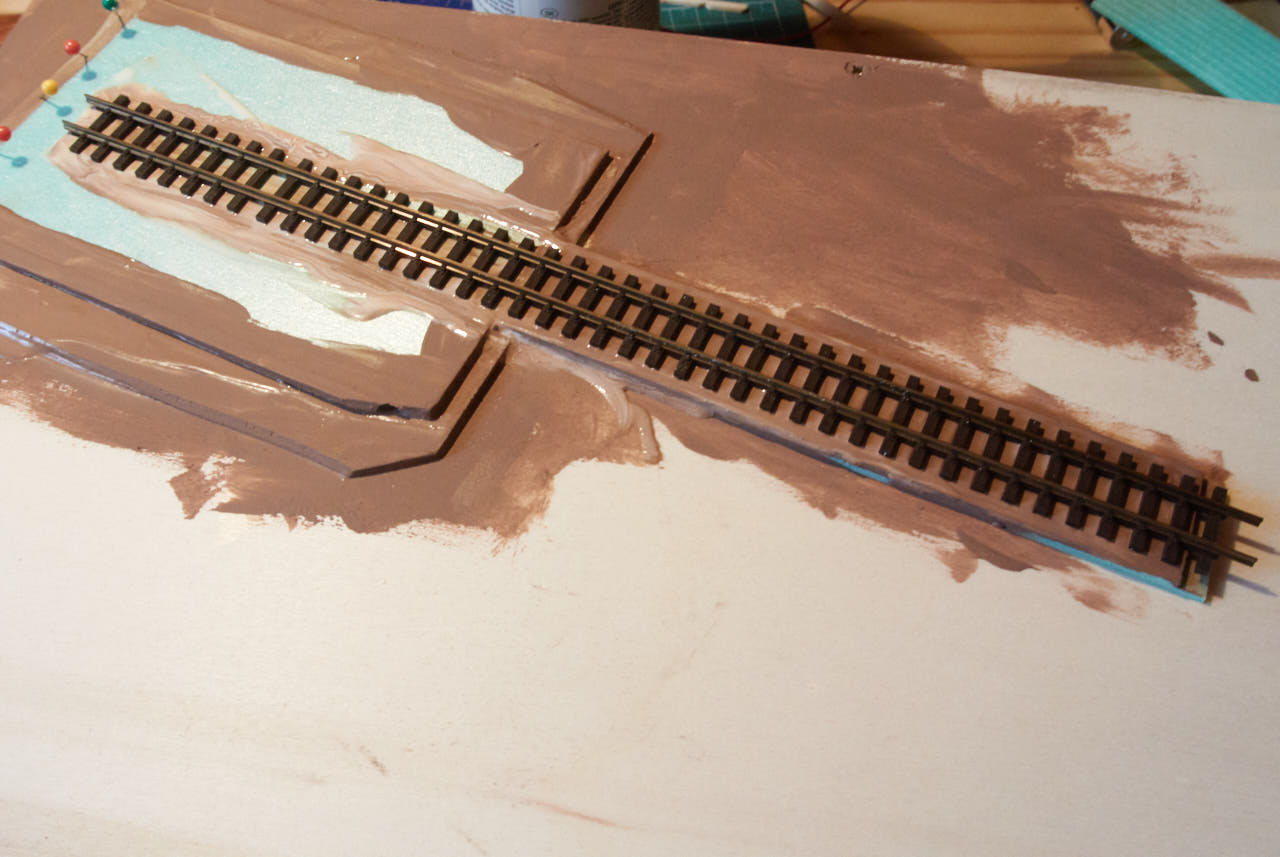

Poslije bojanja sam zaljepio tračnice

Attachment:

loksupa_52.jpg [ 122.61 KiB | Viewed 24966 times ]

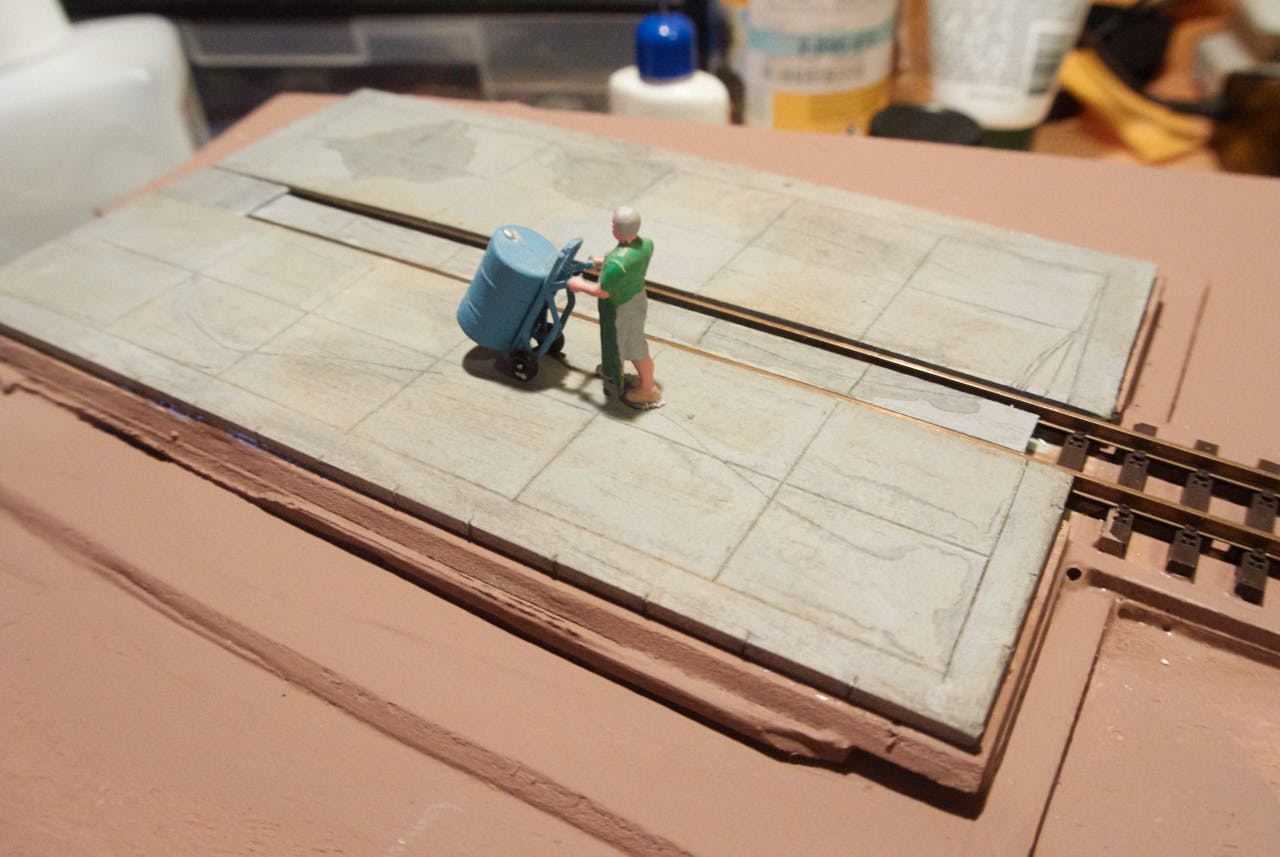

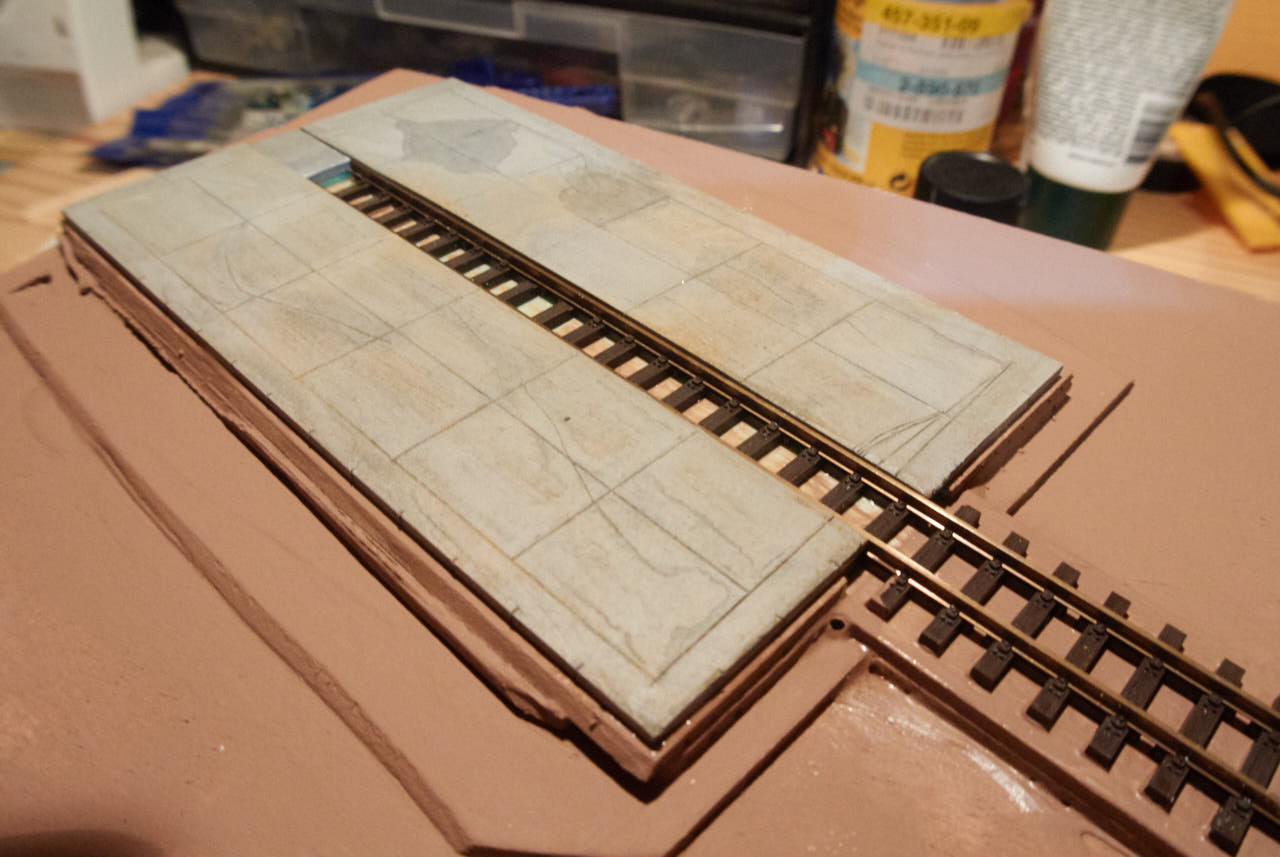

Test betonske podloge i lokšupe

Attachment:

loksupa_53.jpg [ 125.76 KiB | Viewed 24966 times ]

Attachment:

loksupa_54.jpg [ 94.36 KiB | Viewed 24966 times ]

Nastavlja se...

_________________
Lp,
Sebastjan

Modelne železnice

Top

Tjan70

Post subject: Re: Modulna maketa H0e

Posted: 05 Jan 2019, 14:55

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

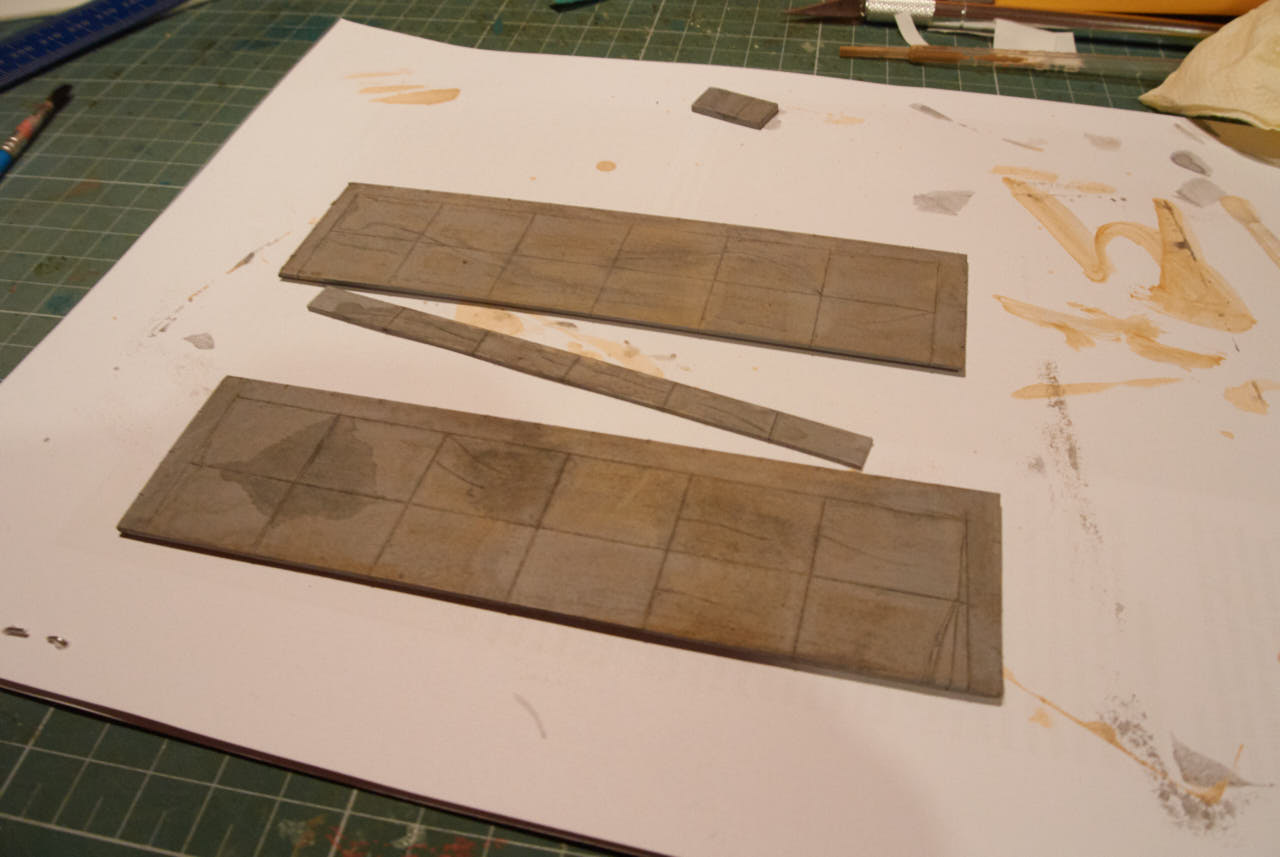

Postarena betonska osnova

Attachment:

loksupa_56.jpg [ 94.13 KiB | Viewed 24966 times ]

I zaljepljena na modul

Attachment:

loksupa_57.jpg [ 131.59 KiB | Viewed 24966 times ]

I prvi test radnika ako sve štima

Attachment:

loksupa_59.jpg [ 121.42 KiB | Viewed 24966 times ]

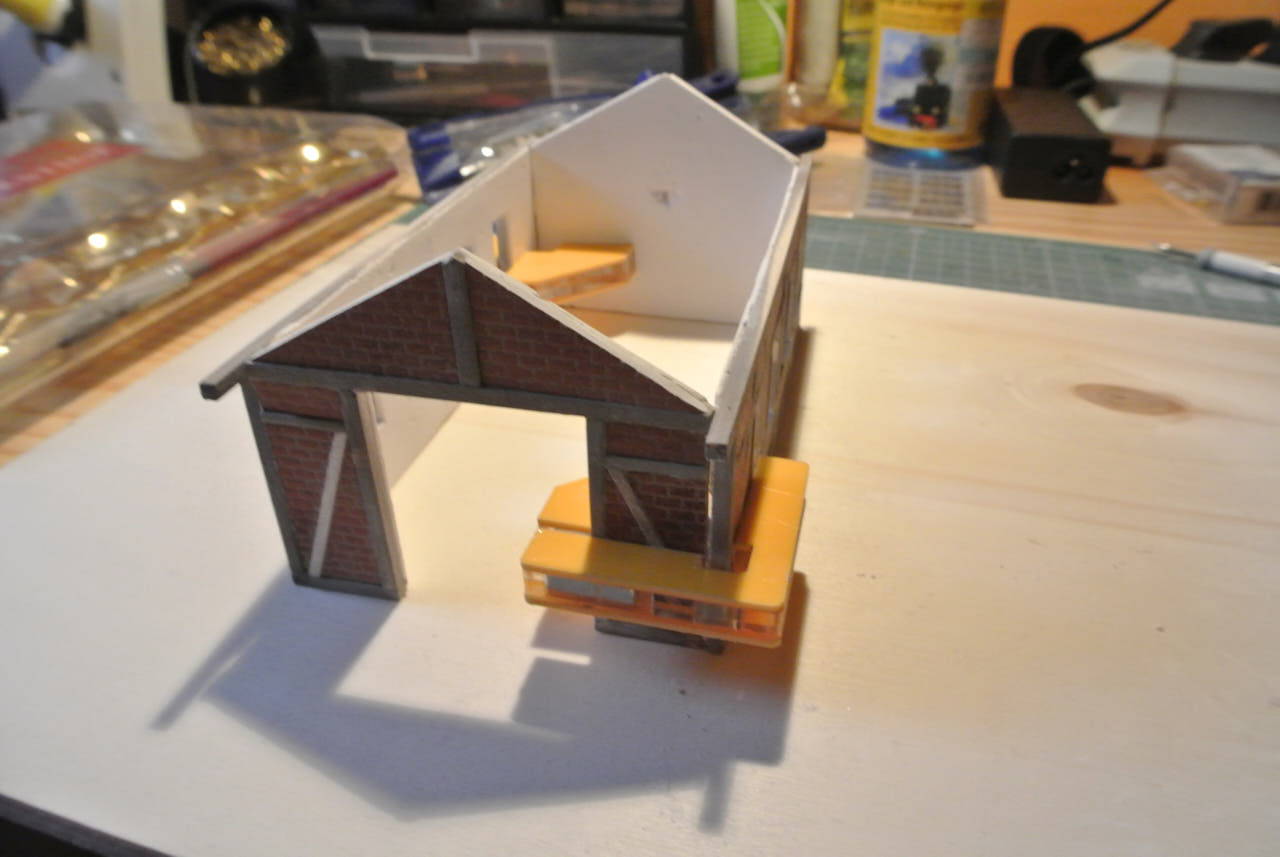

Ovako izgleda lokšupa na kraju druge faze

Attachment:

loksupa_60.jpg [ 132.18 KiB | Viewed 24966 times ]

Attachment:

loksupa_62.jpg [ 137.03 KiB | Viewed 24966 times ]

Toliko za danas.

Gradnju možete pratiti i mojoj web stranici
https://www.potepanja.eu/modelarstvo

_________________
Lp,
Sebastjan

Modelne železnice

Top

Tjan70

Post subject: Re: Modulna maketa H0e

Posted: 10 Jan 2019, 07:10

Joined: 01 Dec 2013, 20:19
Posts: 530
Location: Parižlje

Idemo dalje.

Sledila je izrada strehe.

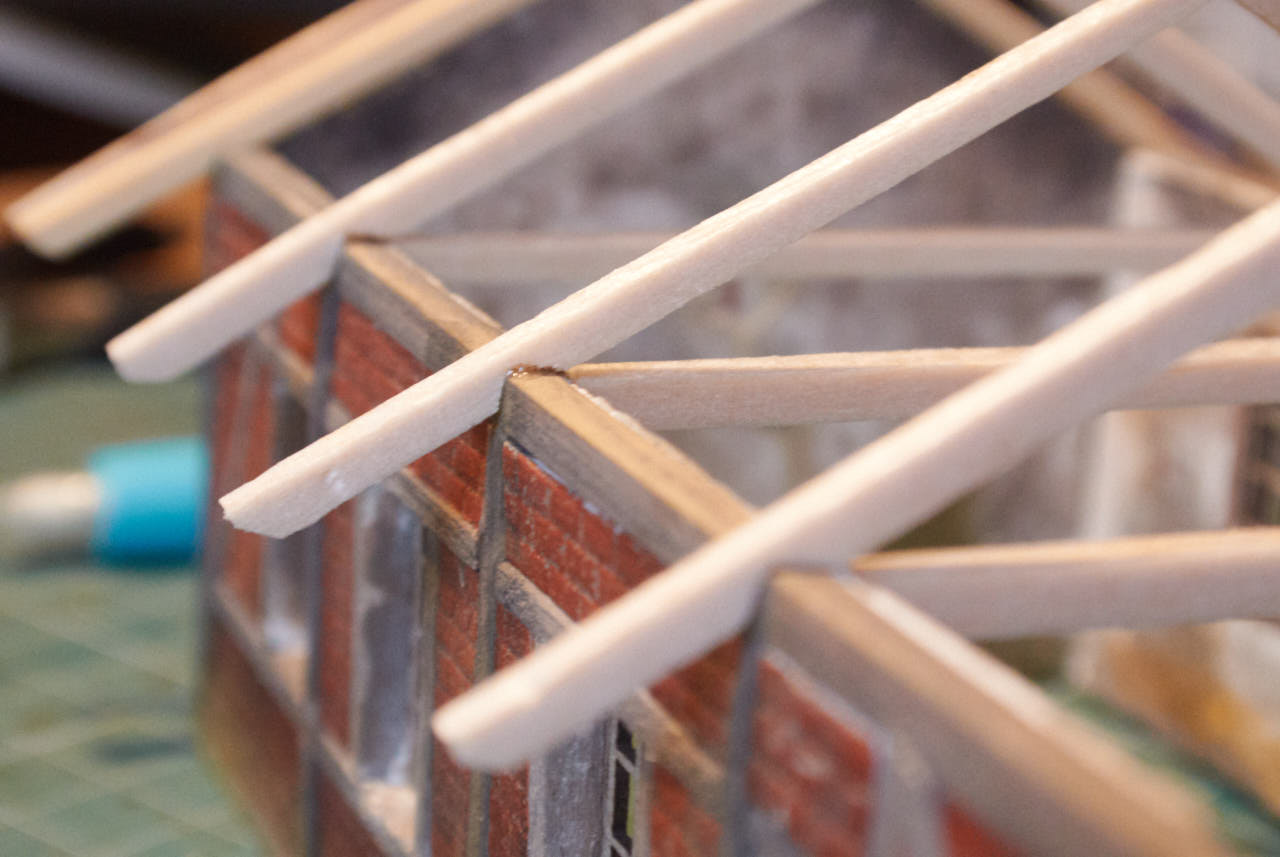

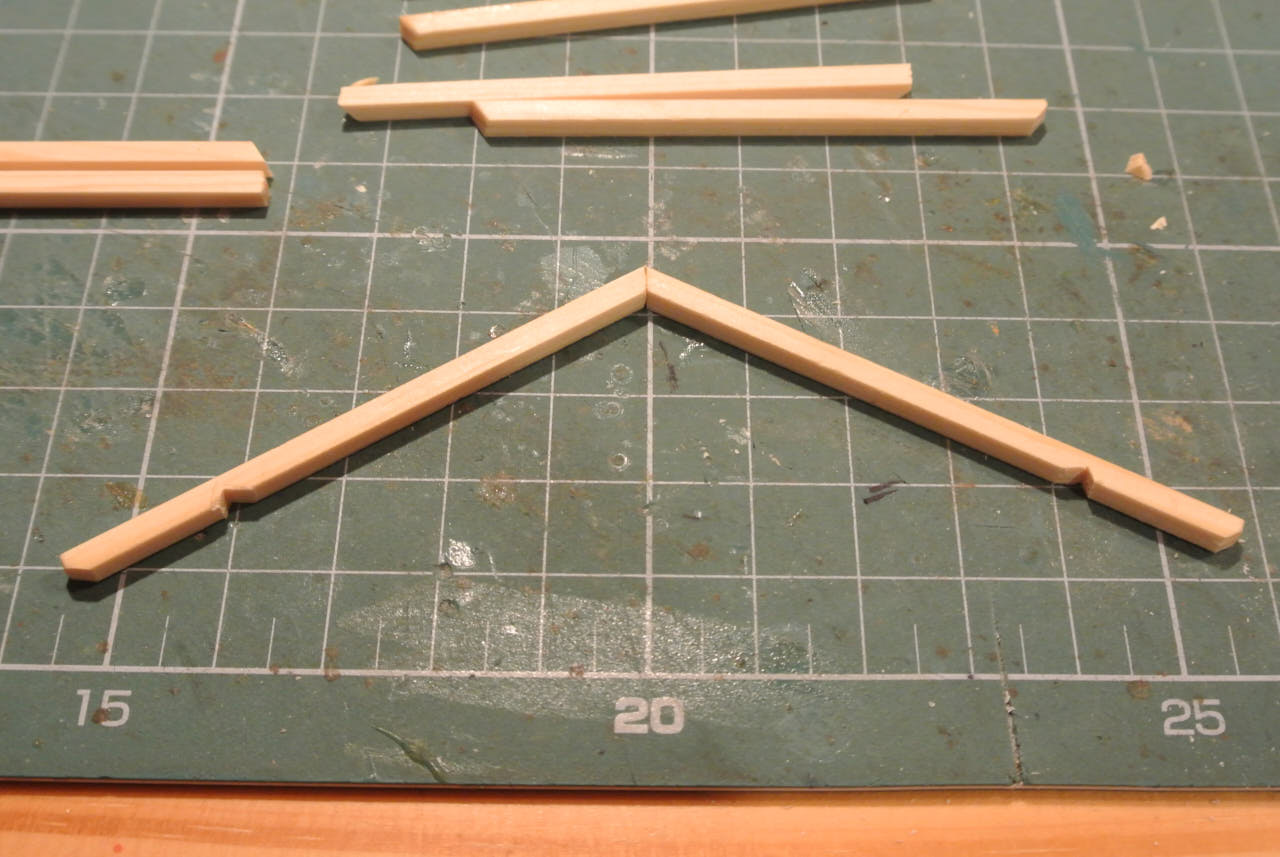

Izrada rogova

Attachment:

loksupa_49.jpg [ 137.45 KiB | Viewed 24934 times ]

Test na zidu

Attachment:

loksupa_48.jpg [ 103.91 KiB | Viewed 24934 times ]

Rogovi

Attachment:

loksupa_64.jpg [ 99.45 KiB | Viewed 24934 times ]

Attachment:

loksupa_65.jpg [ 107.28 KiB | Viewed 24934 times ]

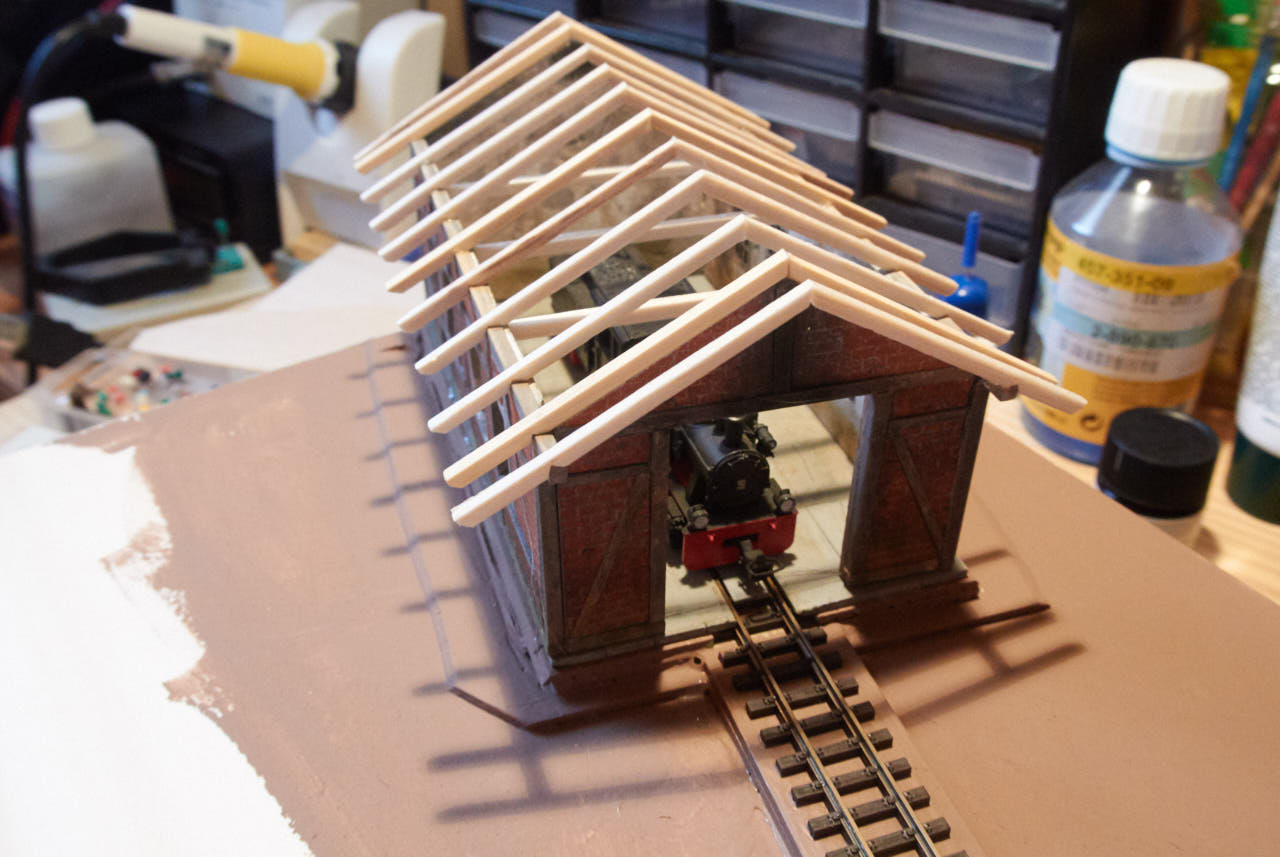

I gotova osnova

Attachment:

loksupa_66.jpg [ 144.49 KiB | Viewed 24934 times ]
