Prošle godine ovakav jedan model je digitalizirao naš Kapo po šabloni H0 modelara.
I ja sam koristio tu istu šablonu za digitalizaciju svoje,ali jedina je razlika što je Kapo imao mini dekoder,a ja normalne veličine.
Za ugurati tako veliki dekoder u malu loksu jednostavno mi je bio izazov,pa da više ne duljim fotke će sve pokazati.

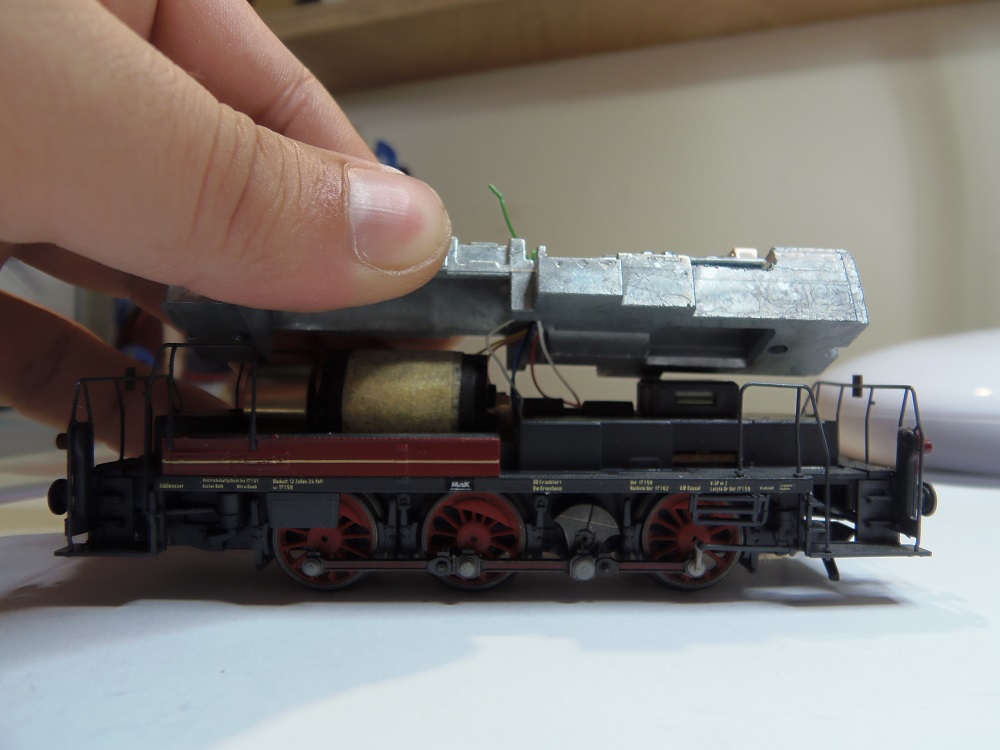

Ovako to sve izgleda kada se rastavi loksa...

Attachment:
P6263486.JPG [ 181.15 KiB | Viewed 11211 times ]


Top
 Profile

Damir
 Post subject: Re: Roco V 60 i DCC
PostPosted: 26 Jun 2014, 13:38
Offline
User avatar

Joined: 15 Apr 2012, 11:40
Posts: 2465
Location: Rijeka

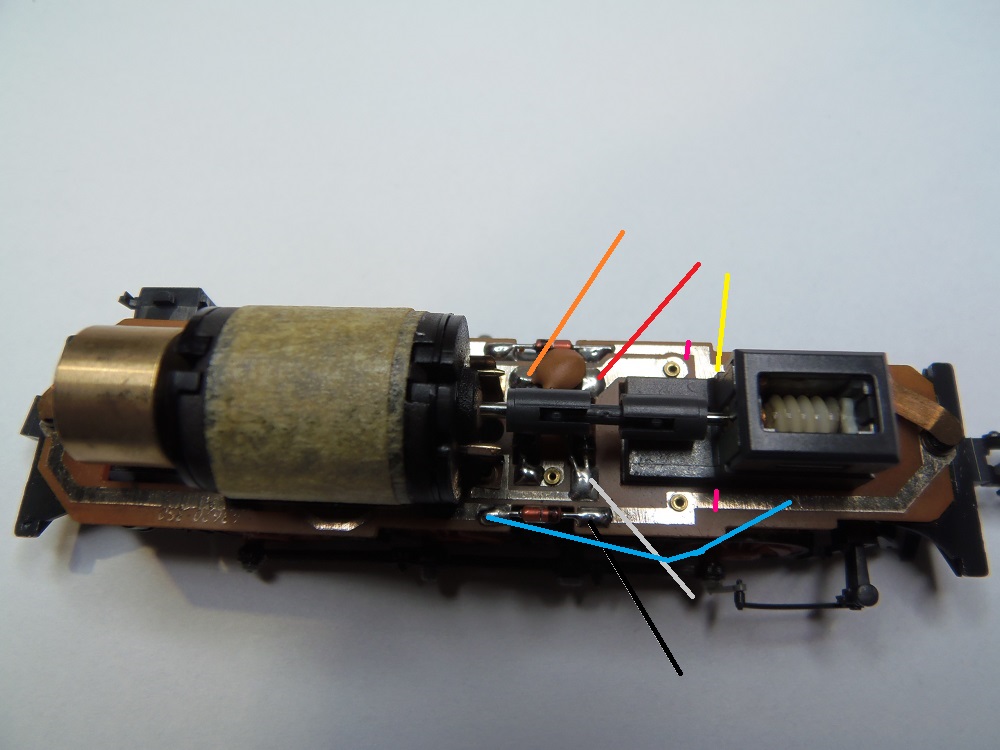

Na olovu sam ocrtao gdije treba zarezati tj. odstraniti dio istoga radi uglavljivanja dekodera.

Attachment:
P6263494.JPG [ 152.97 KiB | Viewed 11210 times ]


Attachment:
P6263496.JPG [ 2.05 MiB | Viewed 11210 times ]


Attachment:
P6263495.JPG [ 144.1 KiB | Viewed 11210 times ]


Top
 Profile

Damir
 Post subject: Re: Roco V 60 i DCC
PostPosted: 26 Jun 2014, 13:40
Offline
User avatar

Joined: 15 Apr 2012, 11:40
Posts: 2465
Location: Rijeka

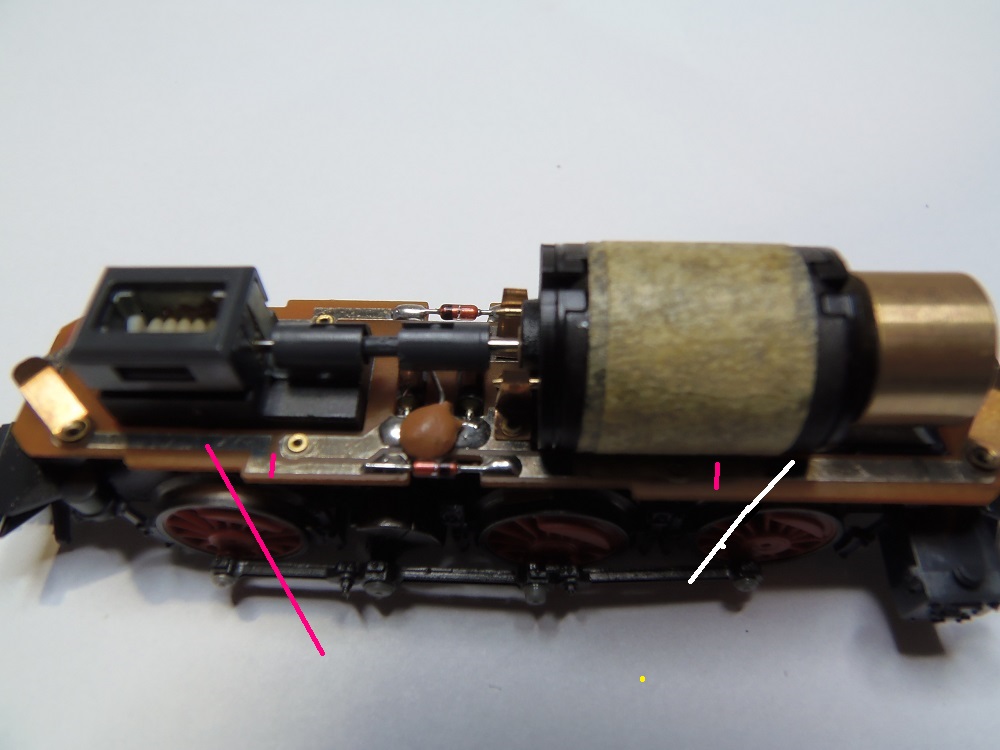

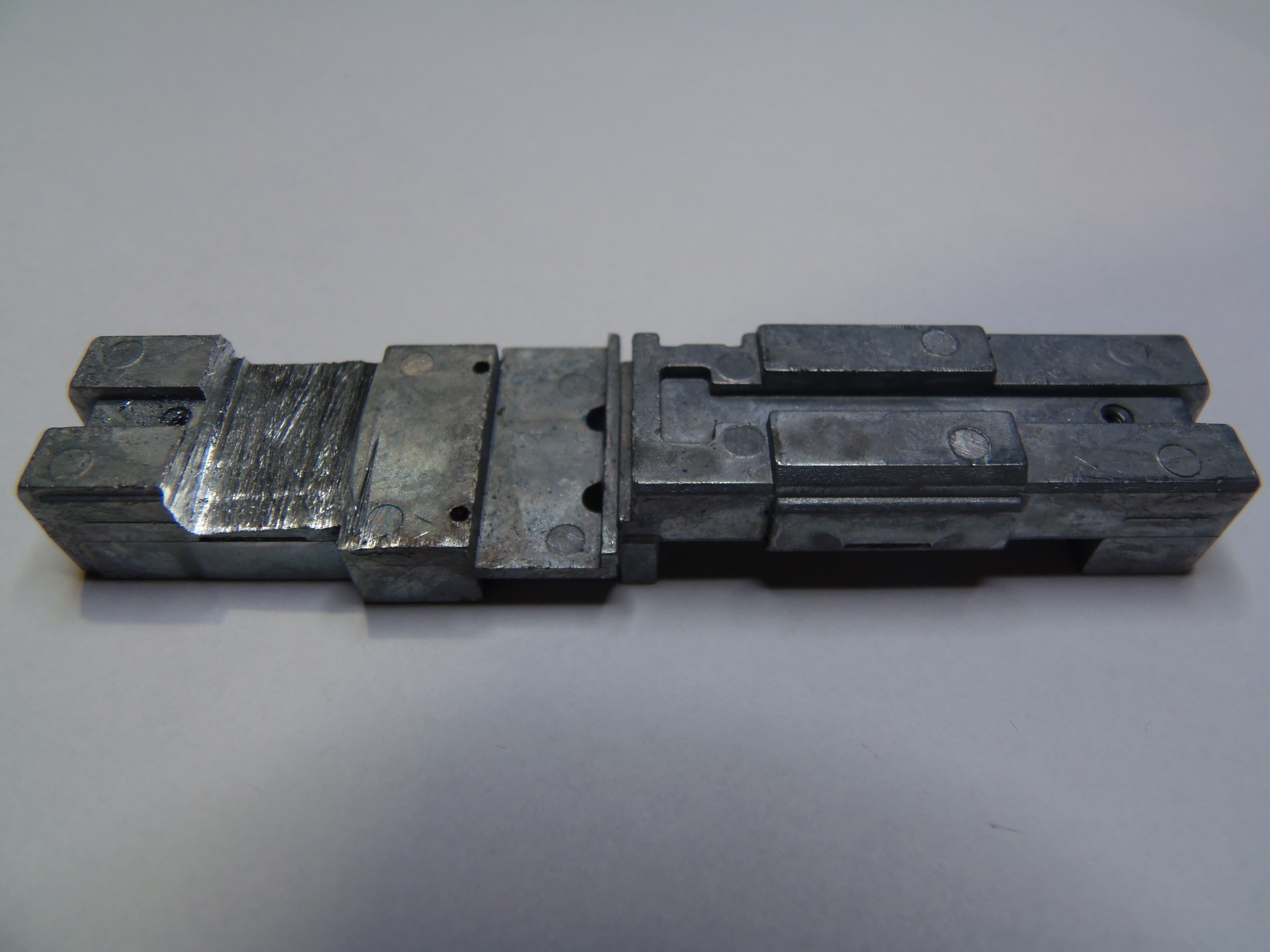

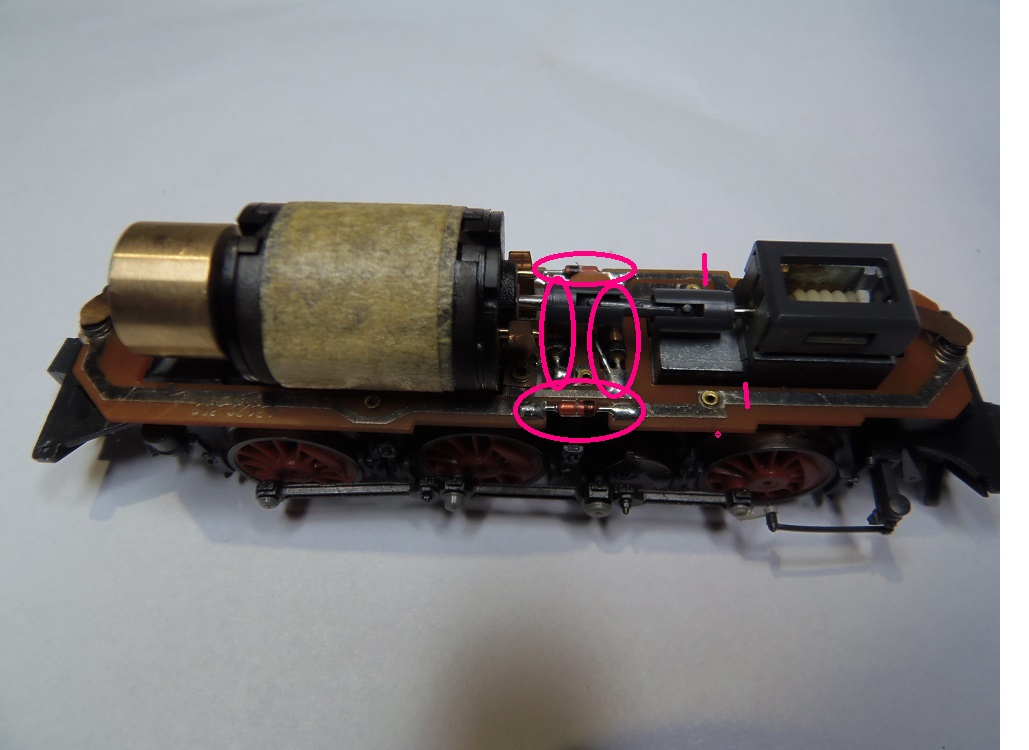

Šablona odstranjivanja nepotrebnog i zarezivanja nekih mjesta za pripremu lemljenja dekodera.

Attachment:
P6263490.JPG [ 165.23 KiB | Viewed 11210 times ]


Attachment:
P6263489.JPG [ 157.84 KiB | Viewed 11210 times ]


Attachment:
P6263493.JPG [ 143.53 KiB | Viewed 11210 times ]


Top
 Profile

Damir
 Post subject: Re: Roco V 60 i DCC
PostPosted: 26 Jun 2014, 13:43
Offline
User avatar

Joined: 15 Apr 2012, 11:40
Posts: 2465
Location: Rijeka

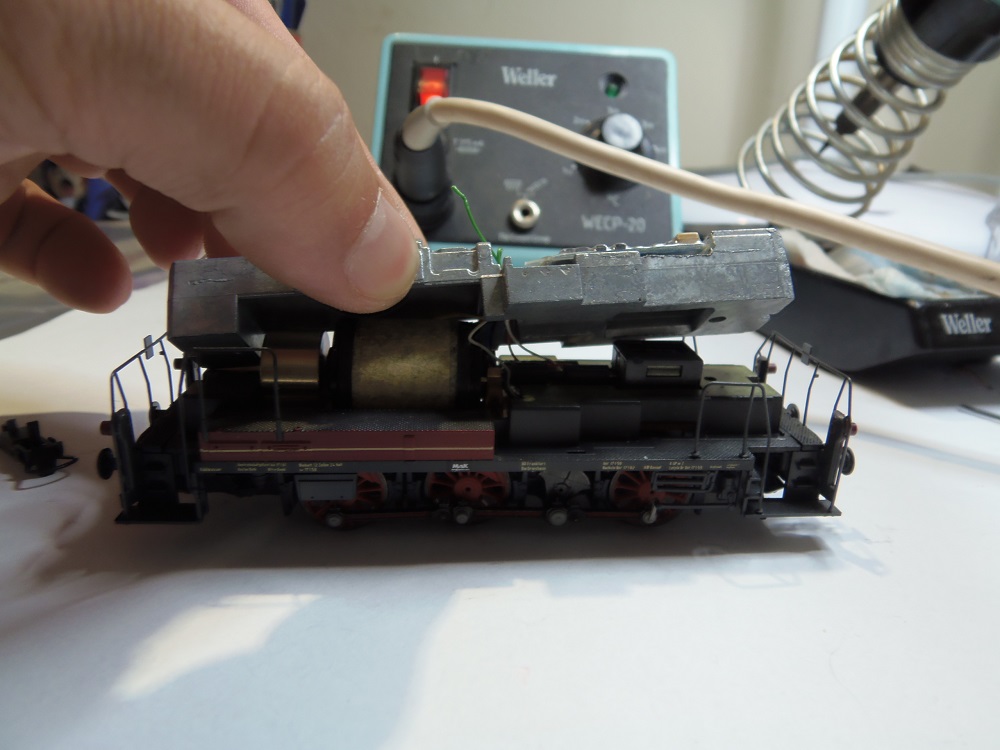

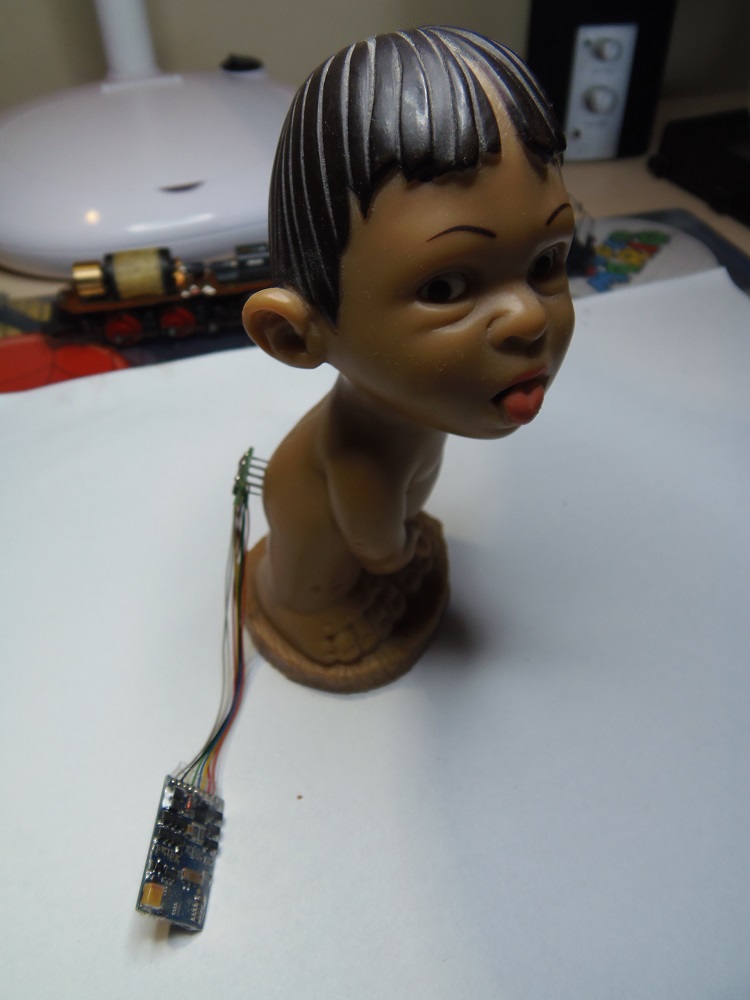

Kako ispitati dekoder da li funkcionira ako nemate nikakvih aparata pri ruci?
Evo ovako,zabijete ga u... :lol: I radi funkcija jezik,"miš" to je to ne treba više... :angelic-green:

Attachment:
P6263497.JPG [ 140.95 KiB | Viewed 11210 times ]


Top
 Profile

Damir
 Post subject: Re: Roco V 60 i DCC
PostPosted: 26 Jun 2014, 13:59
Offline
User avatar

Joined: 15 Apr 2012, 11:40
Posts: 2465
Location: Rijeka

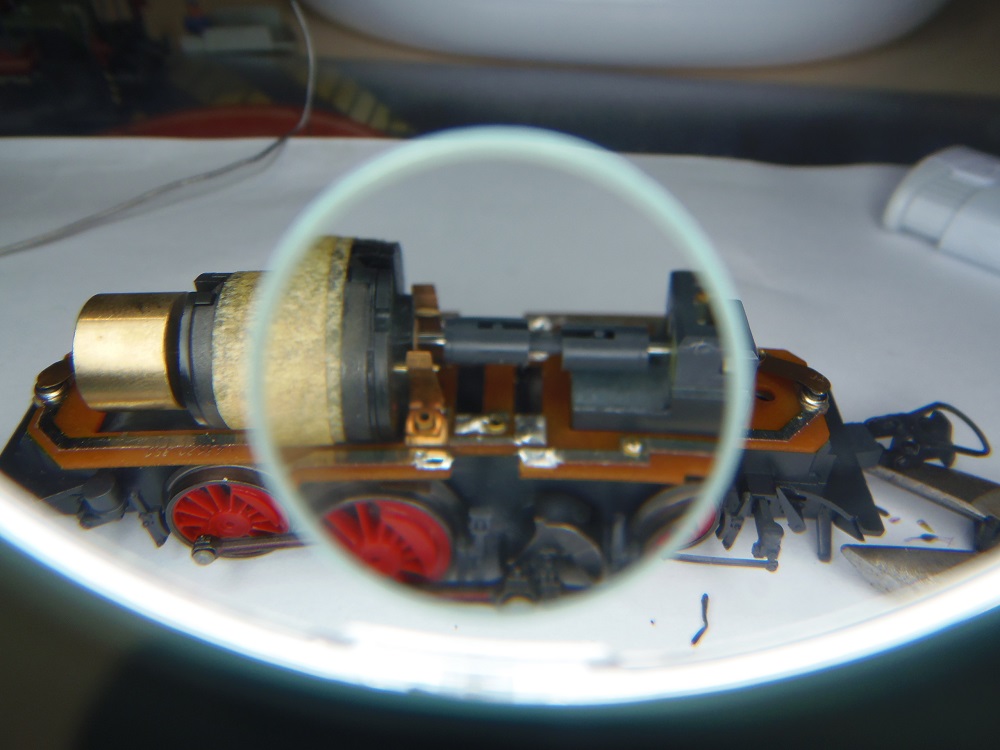

Nakon što sam povadio nepotrebne elemente,evo kako izgleda pod povećalom.

Attachment:
P6263498.JPG [ 168.53 KiB | Viewed 11208 times ]


Top
 Profile

Damir
 Post subject: Re: Roco V 60 i DCC
PostPosted: 26 Jun 2014, 14:01
Offline
User avatar

Joined: 15 Apr 2012, 11:40
Posts: 2465
Location: Rijeka

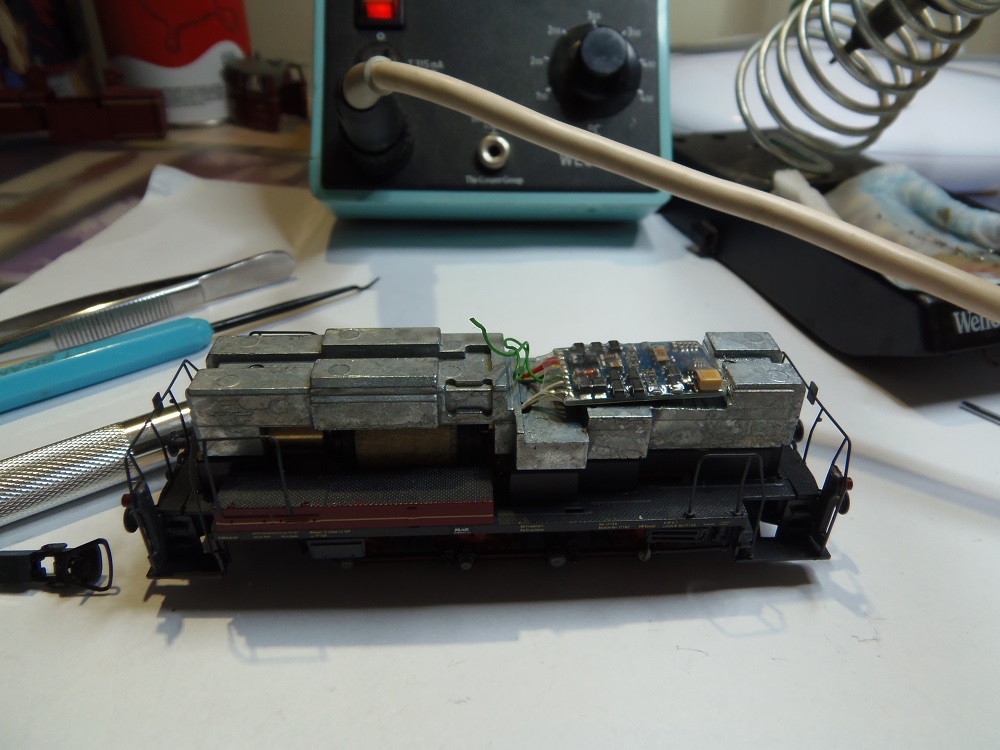

Žice su sretno polemljene i sada sve treba spakirati u tom skučenom prostoru da ne smeta jedno drugome.

Attachment:
P6263499.JPG [ 164.05 KiB | Viewed 11208 times ]


Attachment:
P6263500.JPG [ 171.03 KiB | Viewed 11208 times ]


Top
 Profile

Damir
 Post subject: Re: Roco V 60 i DCC
PostPosted: 26 Jun 2014, 14:04
Offline
User avatar

Joined: 15 Apr 2012, 11:40
Posts: 2465
Location: Rijeka
Attachment:
P6263501.JPG [ 206.42 KiB | Viewed 11208 times ]


Sve je sjelo kako treba iz prve!
Još montirati unutrašnjost kabine sa strojovođom,zaklopiti kabinu iiii....

Attachment:
P6263502.JPG [ 177.77 KiB | Viewed 11208 times ]


.....iiii VOLA!!!! :happy-partydance:

Attachment:
P6263503.JPG [ 252.12 KiB | Viewed 11208 times ]

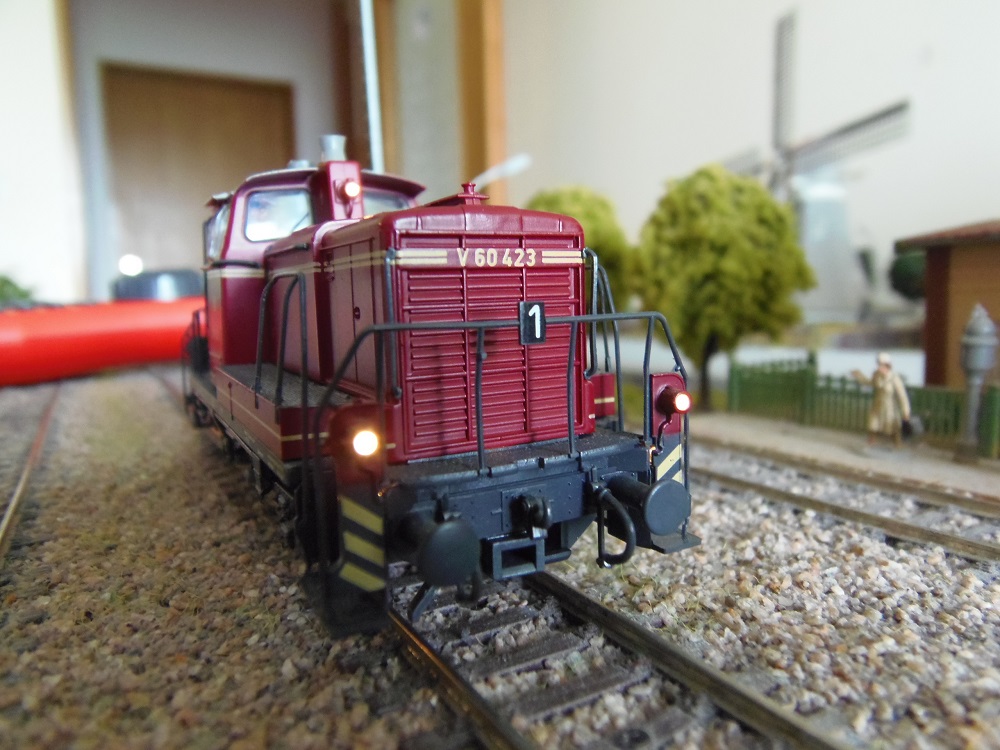

Loksa je već na prvoj vuči,ovu fotku su mi maloprije poslali strojovođe! ;) :greetings-wavegreen:
