 Post subject: HŽ 2043-005 "Kramp"
PostPosted: 13 Nov 2015, 12:26
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357
Pozdrav,

Evo mene opet sa novim projektom

HŽ 2043-05 "Kramp"

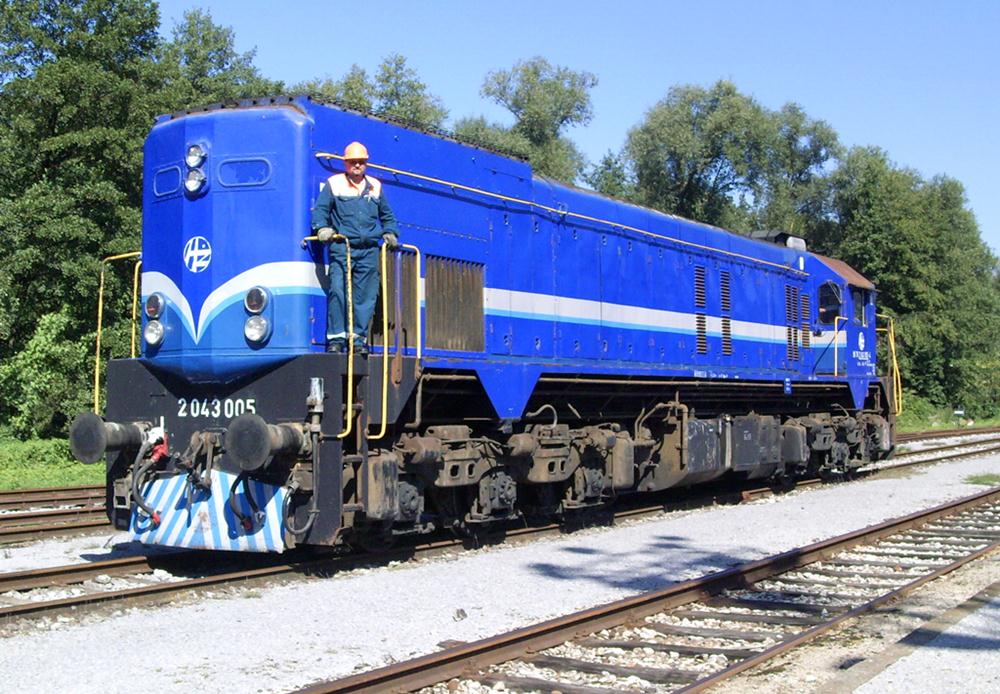

a to zbog toga jer je i ta mašina tu i tamo zalutala u Lendavo,slikano 8.7.2009

Attachment:
PIC_3471.JPG [ 188.63 KiB | Viewed 12668 times ]


Attachment:
PIC_3475.JPG [ 188.89 KiB | Viewed 12668 times ]


i model u pripremi,osnova je od Slavko Jovanoviča sa mojom doradom

Attachment:
DSCN9808.JPG [ 122.58 KiB | Viewed 12668 times ]


i sa nadzornim da nebi što zafušal!

Attachment:
DSCN9812.JPG [ 167.53 KiB | Viewed 12668 times ]


LP Sini i Lumpi


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 13 Nov 2015, 17:12
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357

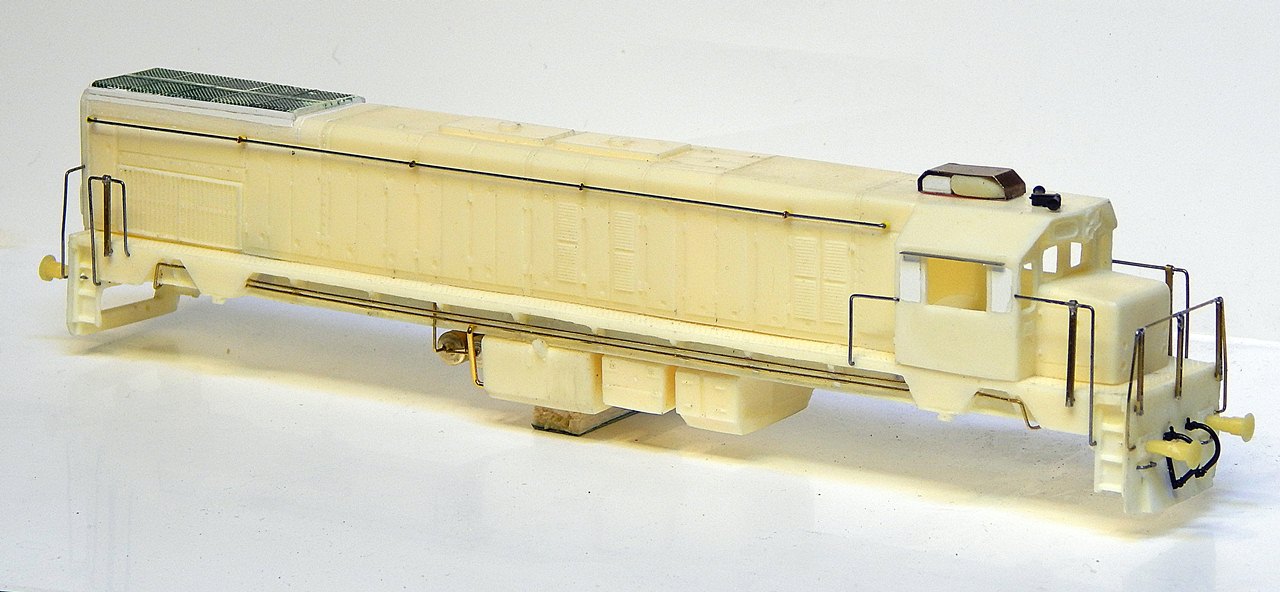

Gotovi detalji

Attachment:
DSCN9816.JPG [ 160.36 KiB | Viewed 12653 times ]

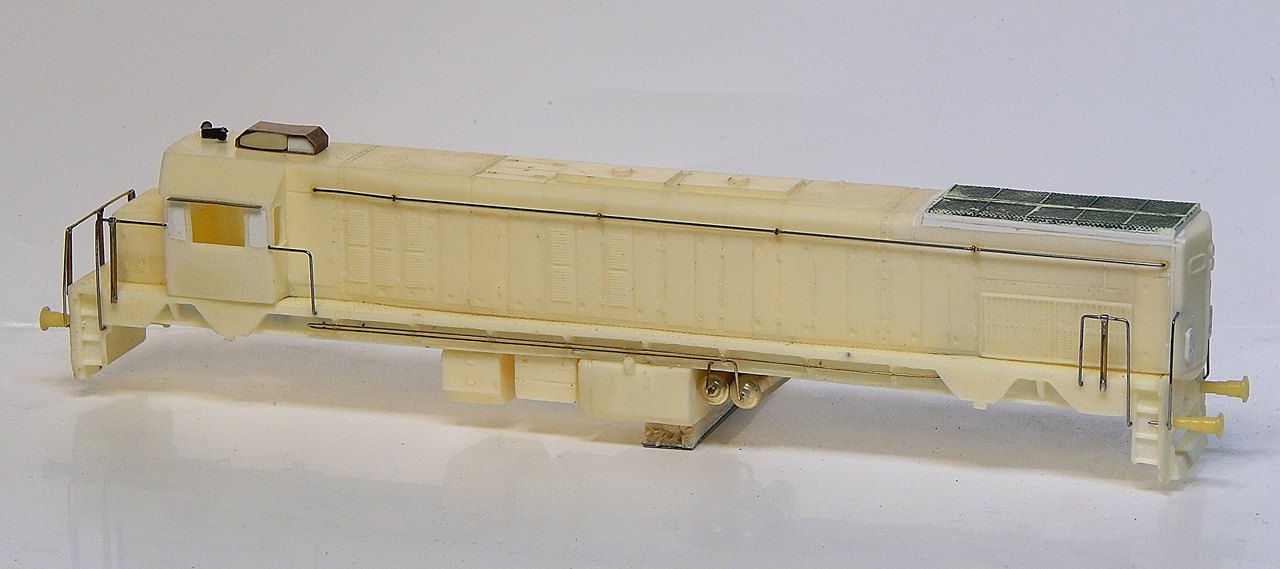

druga strana

Attachment:
DSCN9819.JPG [ 141.61 KiB | Viewed 12653 times ]


a sad primer

LP Sini


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 13 Nov 2015, 20:38
Offline

Joined: 19 Dec 2012, 09:18
Posts: 83
Location: Zagreb
Attachment:
DSCN9819[1].JPG [ 129.23 KiB | Viewed 12645 times ]

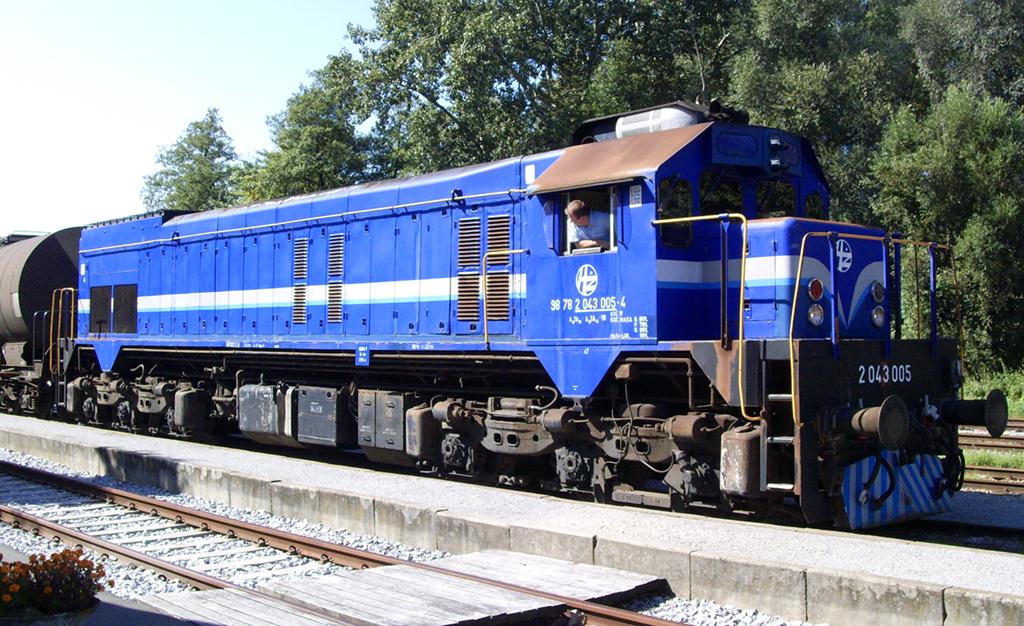

Ovdje bi joj kod upravljačnice (strelica 1) nekako valjalo ubaciti na obje strane lokse, po jedna vrata sa žaluzinastim otvorima,

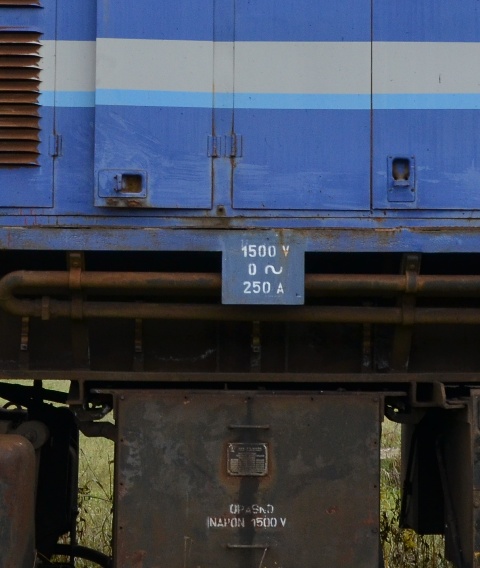

a na ovom dijelu frema (strelica 2) odraditi stirenom ili nečim, malu dodatnu plohu, čisto iz razloga da se može odraditi tisak s natpisom:

Attachment:
DSC_0300.JPG [ 123.72 KiB | Viewed 12645 times ]


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 13 Nov 2015, 21:18
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357
(strelica 1) jer nemam od tu slikano lokomotivu,pa nisam znao!
(strelica 2) to je več spremno ali bude dato gore kad bude prije obojano iznutra

LP


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 13 Nov 2015, 21:35
Offline

Joined: 19 Dec 2012, 09:18
Posts: 83
Location: Zagreb
sini wrote:
(strelica 1) jer nemam od tu slikano lokomotivu,pa nisam znao!
LP

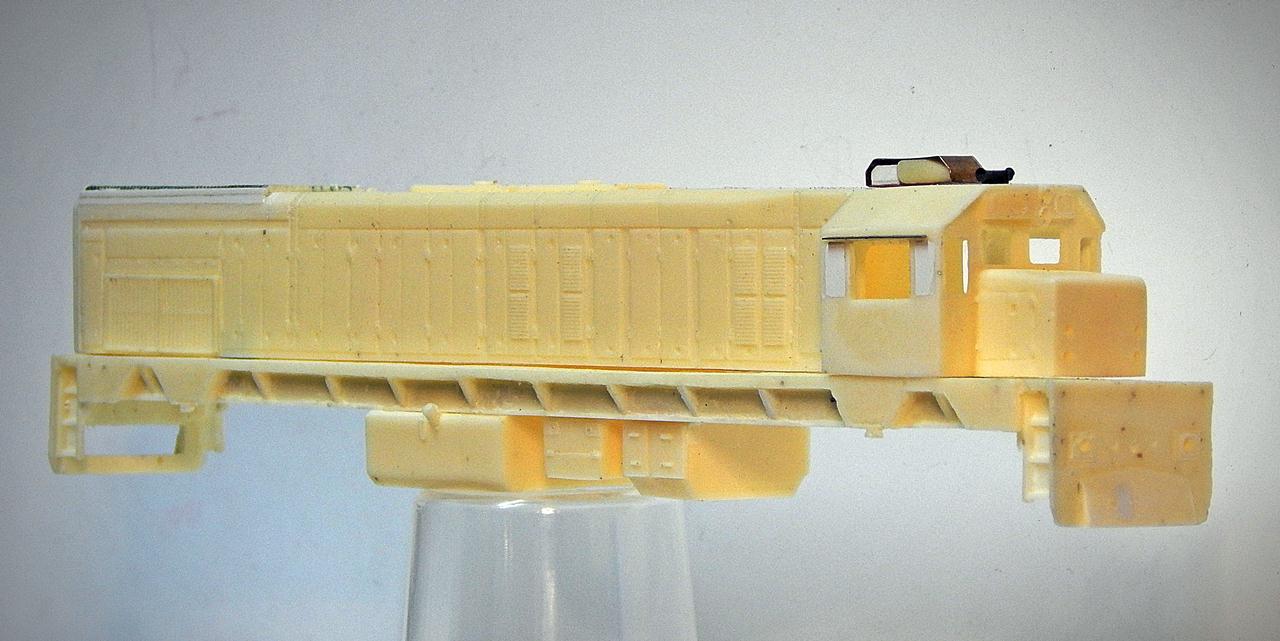

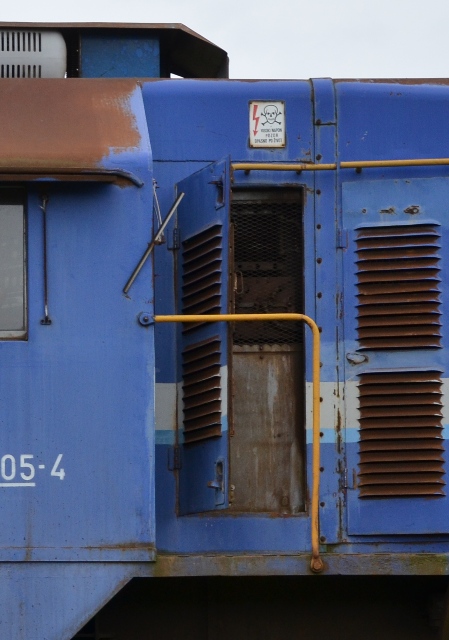

Evo tog detalja:
Attachment:
DSC_0291.JPG [ 163.68 KiB | Viewed 12638 times ]


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 13 Nov 2015, 22:19
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357
Sky wrote:
sini wrote:
(strelica 1) jer nemam od tu slikano lokomotivu,pa nisam znao!
LP


Evo tog detalja:
Attachment:


Hvala!!! :handgestures-thumbup:

LP Sini


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 14 Nov 2015, 15:27
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357
Radovi idu dalje

prvo Primer

Attachment:
DSCN9848.JPG [ 128.51 KiB | Viewed 12619 times ]

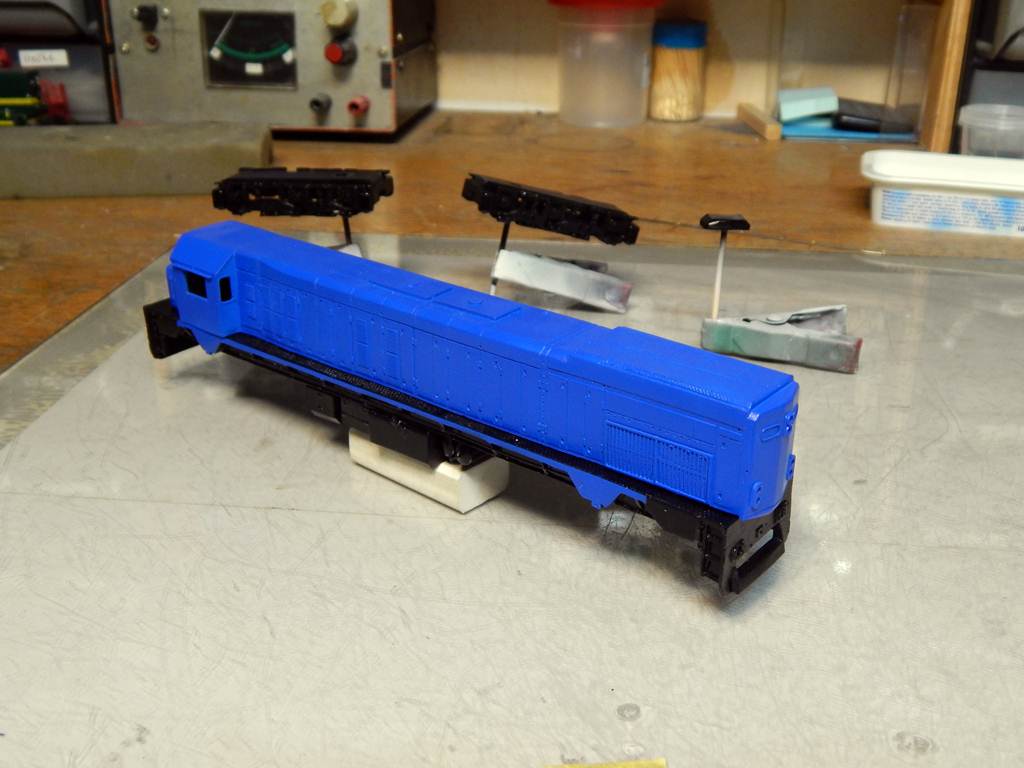

i boja

Attachment:
DSCN9852.JPG [ 107.59 KiB | Viewed 12619 times ]


Attachment:
DSCN9853.JPG [ 104.17 KiB | Viewed 12619 times ]


LP Sini


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 30 Nov 2015, 21:09
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357
Pozdrav,

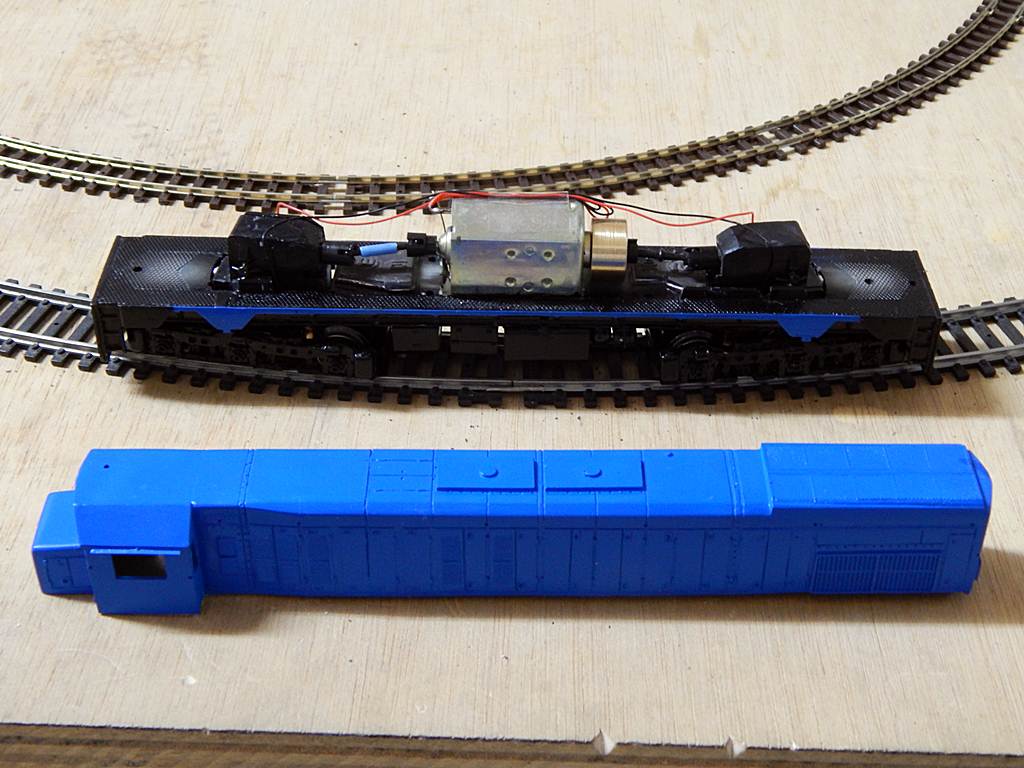

uspio ga danas obuči i motorizirat

Attachment:
DSCN0212.JPG [ 110.08 KiB | Viewed 12589 times ]


i njegovo srce,petpolni Igarashi motor(Mehano Prestige)

Attachment:
DSCN0214.JPG [ 140.92 KiB | Viewed 12589 times ]


sad ga treba još digitalizirat sa zvukom i osvetlit,a dekali kad stignu.

bude i video njegove prve vožnje.

LP Sini


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 30 Nov 2015, 21:27
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3357
Evo,

ovak vozi analogno-još



LP Sini


Top
 Profile

 Post subject: Re: HŽ 2043-005 "Kramp"
PostPosted: 01 Dec 2015, 18:05
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Baš je dobar! :DREAMY

:clap:
