H0modelar
PostPosted: 08 Apr 2013, 22:26
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Na prethodnoj slici ono malo bijelo nije neko smeće na izolirki, već LEDica... :lol:

Evo da bolje vidite

Attachment:
IMG_7477.jpg [ 77.76 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:28
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Zalemio sam žice 0,15mm na nju

Attachment:
IMG_7478.jpg [ 83.67 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:30
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

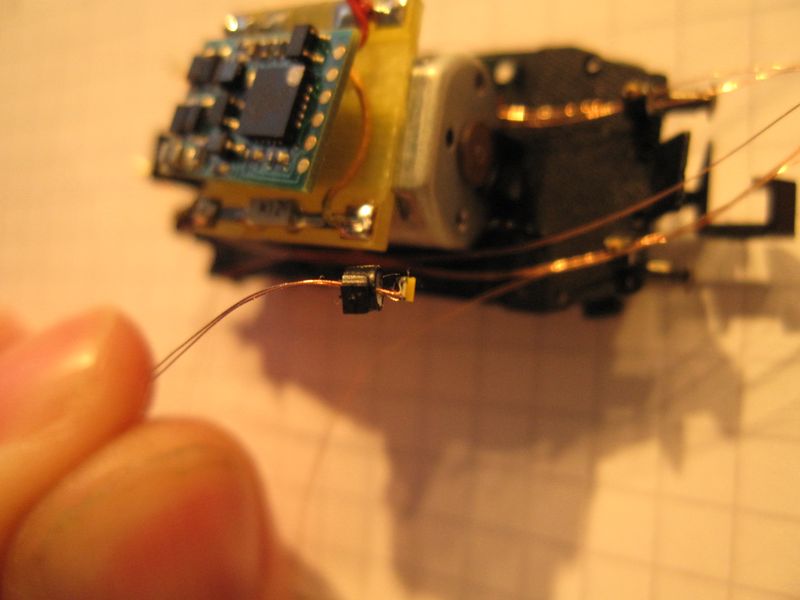

Evo prve LEDice spremne za montažu

Attachment:
IMG_7463.jpg [ 57.73 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:32
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Sada je trebalo uzeti 0,3mm svrdlo i bušiti lanterne

Attachment:
IMG_7466.jpg [ 50.14 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:33
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Evo kako izgledaju prednje probušene lanterne

Attachment:
IMG_7464.jpg [ 46.71 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:36
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Za treću gornju lanternu sam morao bušiti gore,
jer je već postojala donja rupa za montažu

Attachment:
IMG_7488.jpg [ 53.86 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:38
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Sada slijedi malo - "štrikanja"... :whistle:

Attachment:
IMG_7468.jpg [ 55.25 KiB | Viewed 6143 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:46
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Vodovi se moraju savijati lagano pod 90', da bi LEDica mogla upasti do kraja u lanternu.

Poslije ćete vidjeti koliku težinu ima riječ LAGANO... :BORED

Evo kako to izgleda na trećoj lanterni

Attachment:
IMG_7471.jpg [ 49.62 KiB | Viewed 6142 times ]




Sada tek vidim niti i zrnca prašine, jer je ovo fotkano pod najvećim mogućim makro modom.

To vam je dodatni opis koliko je ovo malo... :BLACK-:
Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:49
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Za treću lanternu se trebalo probušiti i kučište iza dimnjaka

Attachment:
IMG_7484.jpg [ 41.9 KiB | Viewed 6142 times ]


Top
 Profile

H0modelar
PostPosted: 08 Apr 2013, 22:52
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Pripremljeno za montažu

Attachment:
IMG_7486.jpg [ 59.23 KiB | Viewed 6142 times ]



Slijedeći puta krećemo na fiksiranja i testiranja...

:B
