H0modelar
PostPosted: 09 Apr 2013, 21:00
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

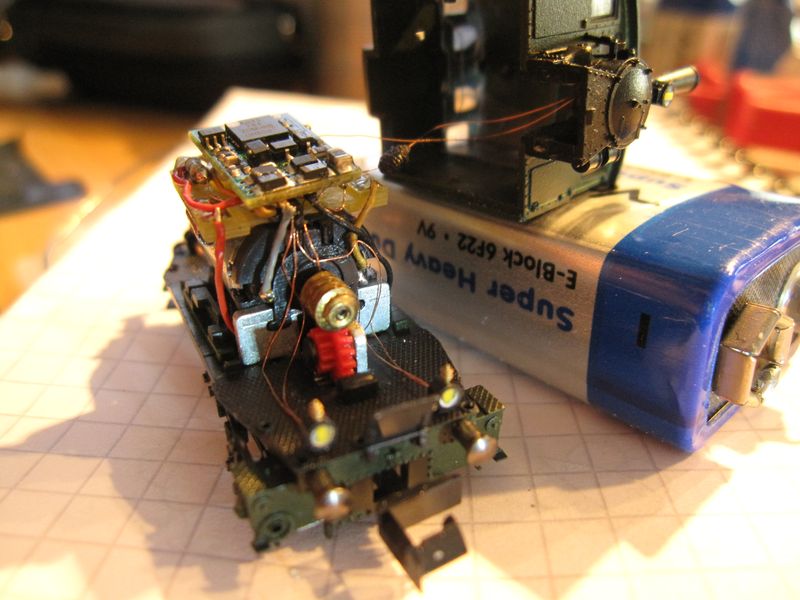

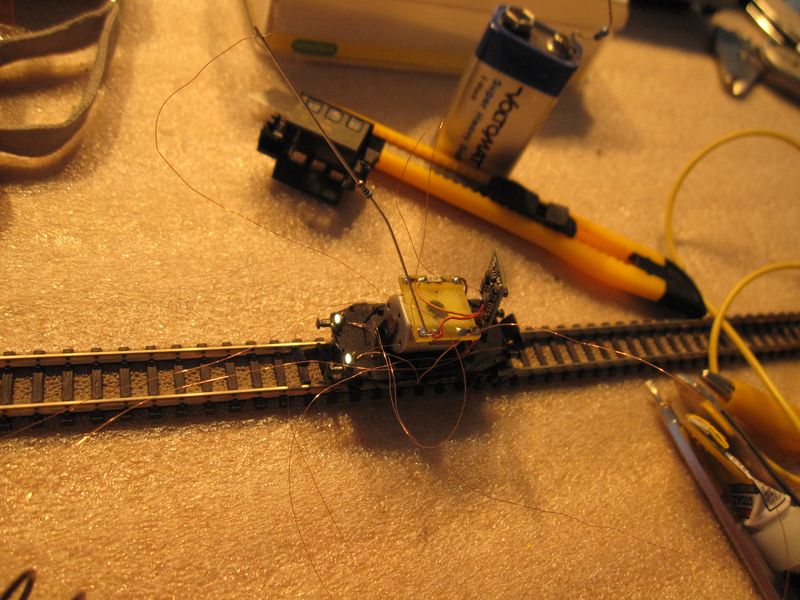

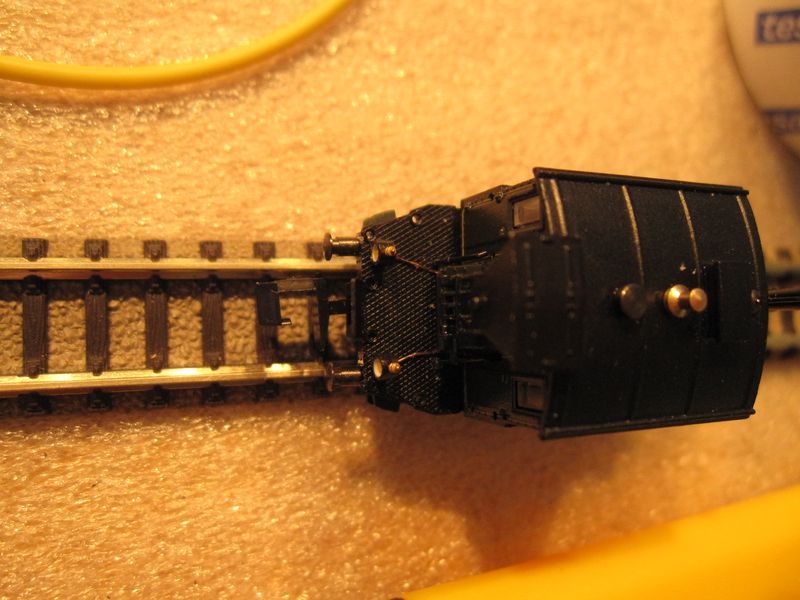

I testirajte koja vrijednost je otprilike dobra.
Usput testirate i da li je sve sa LEDicama ok.

Svijetlimo! :dance:

Attachment:
IMG_7482.jpg [ 101.12 KiB | Viewed 6270 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:03
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

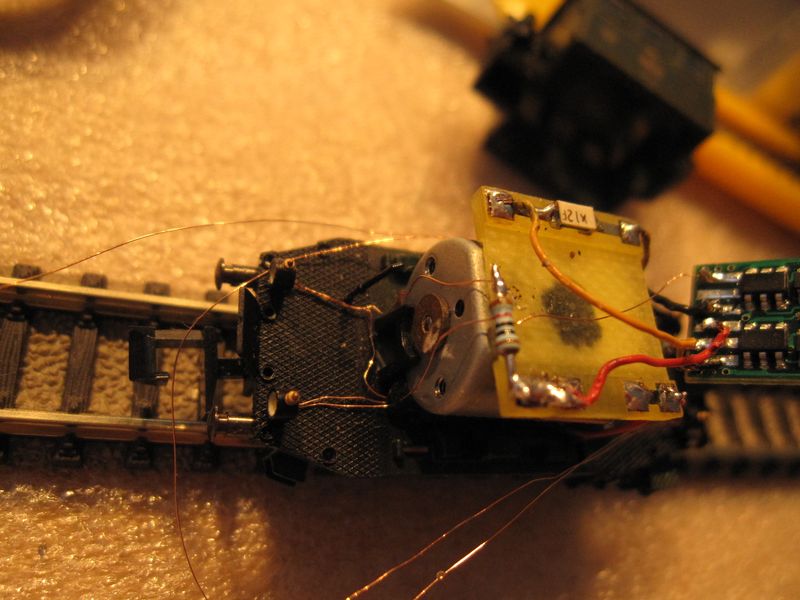

Ja nisam bio zadovoljan kako svijetle, pa sam prešao na pola napona napajanja u radu,
tako da sam se spojio na jedan RAIL umjesto na zajednički plus.
To sam odabrao i zato jer mi je spoj bio puno jednostavniji i logičniji, te nije
postojala opasnost za prveliku debljinu cijelog paketa... :BLACK-:

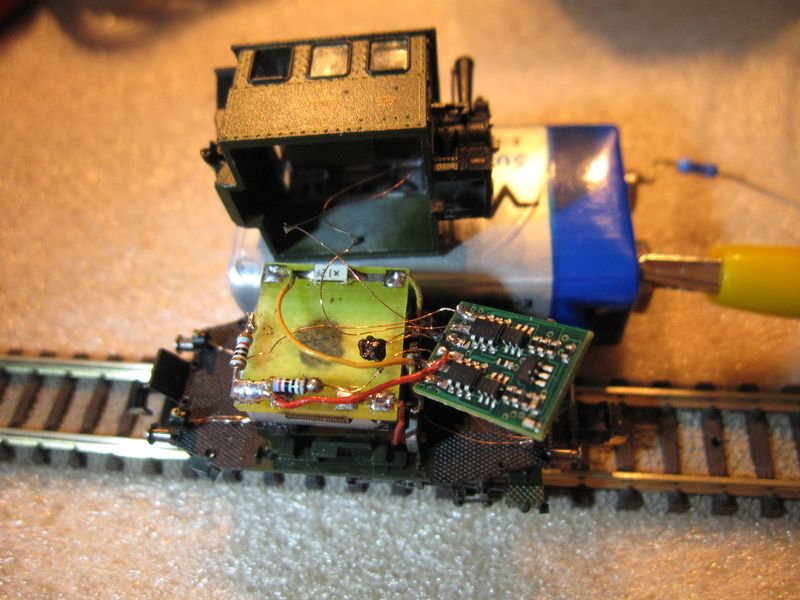

Zadnji kraj sa svojim otpornikom i posloženim žicama

Attachment:
IMG_7483.jpg [ 78.05 KiB | Viewed 6270 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:04
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Evo i prednje strane pospajane

Attachment:
IMG_7490.jpg [ 89.18 KiB | Viewed 6270 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:06
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

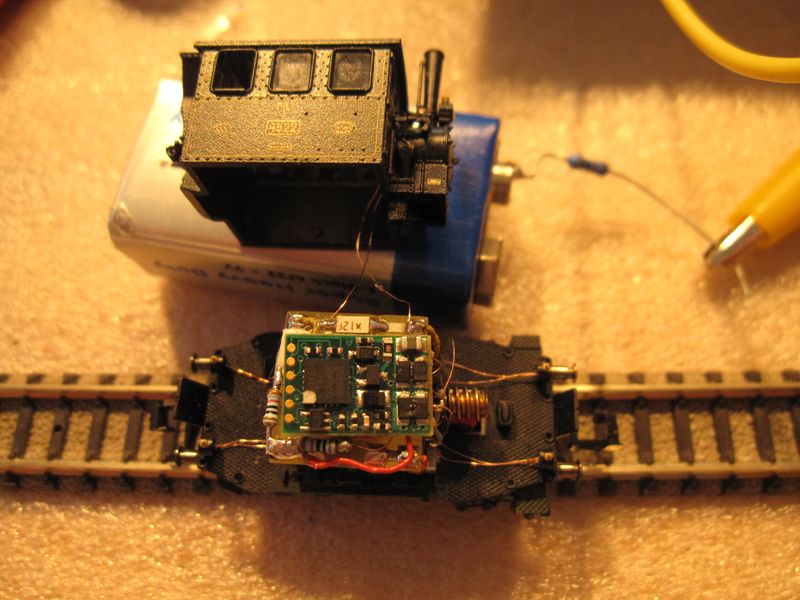

Sve pospajano i posloženo, prije poklapanja

Attachment:
IMG_7492.jpg [ 85.69 KiB | Viewed 6270 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:07
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Druga strana - bočno

Attachment:
IMG_7493.jpg [ 80.02 KiB | Viewed 6270 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:12
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Trenutak istine... da li to sve uopće stane?

Attachment:
IMG_7494.jpg [ 80.52 KiB | Viewed 6269 times ]



Jedva! :doh:
Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:13
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Inače, nije sve prošlo glatko.
Sjećate se one opaske - LAGANO?

Koliko god ja lagano to savijao i sastavljao, radio sam to 3 puta.

Prvo nije radila prednja lijeva lanterna.
Onda mi je kod drugog poklapanja samo ostala jedna žica u ruci od srednje gornje.

Tek je treći puta sve bilo ok.

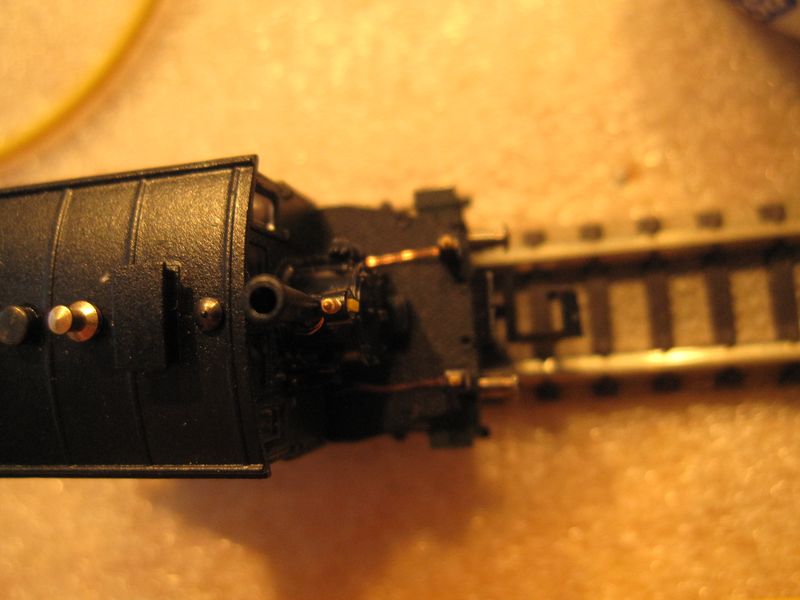

Evo i prednje strane kada je sve bilo u redu.

Attachment:
IMG_7495.jpg [ 56.44 KiB | Viewed 6269 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:14
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

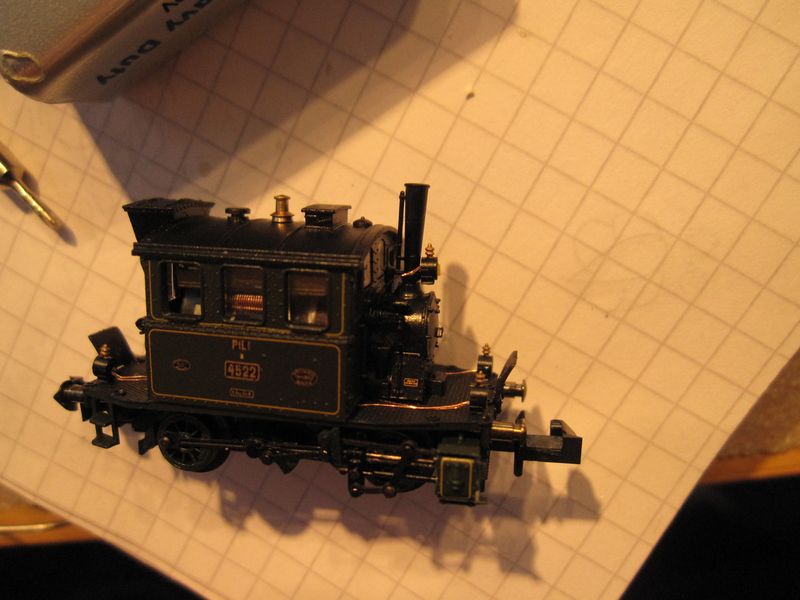

Evo ga sastavljenog

Attachment:
IMG_7497.jpg [ 65.95 KiB | Viewed 6269 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:17
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

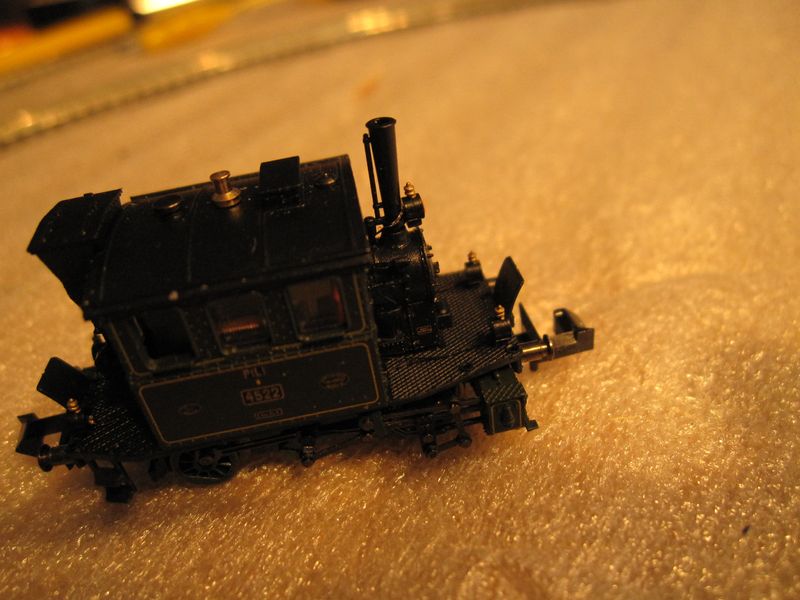

Slijedilo je bojanje vodova sa crnim mat akrilom, da baš ne svijetle tako jako...

Attachment:
IMG_7503.jpg [ 94.04 KiB | Viewed 6269 times ]


Top
 Profile

H0modelar
PostPosted: 09 Apr 2013, 21:17
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Attachment:
IMG_7506.jpg [ 75.91 KiB | Viewed 6269 times ]
