H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:02
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Damir wrote:
Čekaj da ja počnem prikazivati svoje digitalizacije (al će biti dima :? ),samo taj projekt ću morati ostvariti uz pomoć ho modelara,a naravno očekujem da se i kolega Sini ažurira dok me ne naučite kamo koja žica ide i što treba ispilati (odlemiti). :B


Samo hrabro i kreni :handgestures-thumbup:

Mi smo tu da pazimo na :EL ... 8-)
Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:06
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Daco wrote:
H0modelar wrote:
Najokrutnija provjera sa fotkanjem od 15cm udaljenosti - bočno.

..čestitke majstore :clap: :clap: :clap:


Hvala! B:B

Odlična fotka!

Baš gledam, pa stvarno nije strašno koliko se vidi elektronika... :shifty:
Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:11
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
sini wrote:
Tjan70 wrote:
Čestitke na preradi :B

Vidim, da se Sinijev virus širi - H0e prugica :lol:

Lp,
Sebastjan




Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:13
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Thalis-4341 wrote:
Čestitam na uspješnoj digitalizaciji. :clap: :clap: :clap: Praščić Babe je sretno roktao dolinama, brdima, vijaduktima i usjecima. :lol: ;) ;)


Hvala B:B

Odlično si se sjetio imena :handgestures-thumbup:

Moramo čuti kako će ju gazda zvati... :lol:
Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:29
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

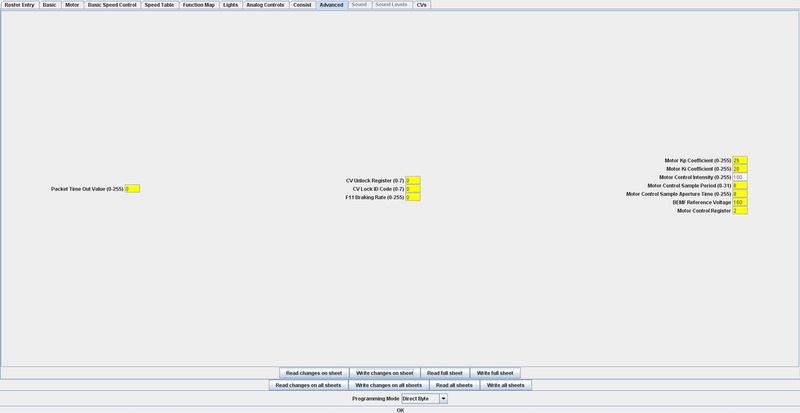

Obećao sam da ću pokazati i podešenja za svinjicu.

Evo prvog - motor.
Motor je mali i stare koncepcije, tako da ima malu kontrolu nad magnetskom silom.
To se moralo kompenzirati većim utjecajem struje dekodera.

Attachment:
pig1.jpg [ 21.7 KiB | Viewed 6435 times ]


Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:32
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

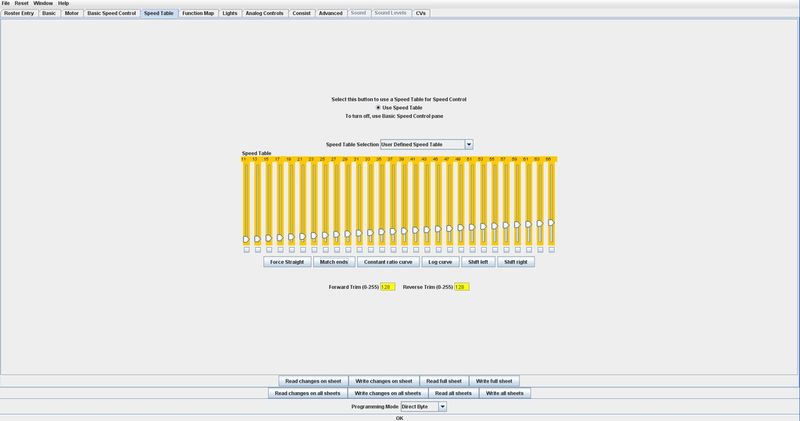

Drugo je krivulja brzine.

Sama svinjica na DC-u skače kao jarac i leti kao avion. :lol:

Morao sam je žestoko obuzdati i dodati dosta inercije... 8-)

Attachment:
pig2.jpg [ 32.77 KiB | Viewed 6435 times ]


Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:37
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792

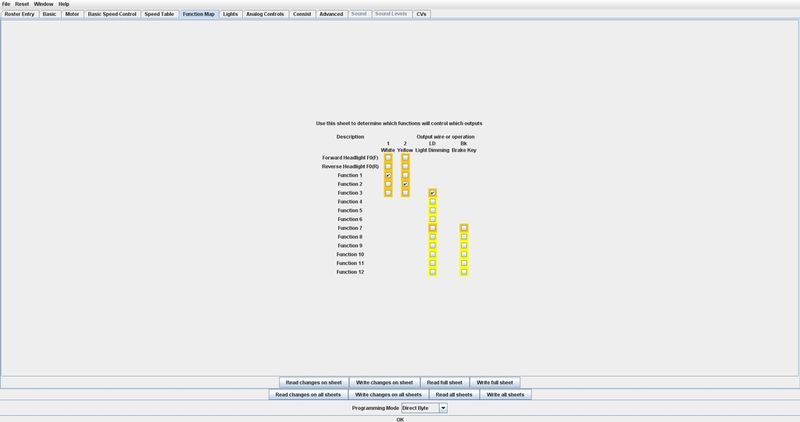

Na kraju, preokrenuo sam logiku funkcijskih izlaza,
na nešto prihvatljivije za ovu primjenu.

Attachment:
pig3.jpg [ 24.68 KiB | Viewed 6432 times ]


Top
 Profile

H0modelar
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 17:39
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Eto, sada je dio oko ugradnje gotov.

Slijede fotke Dace i mene, pa onda možda i kakav video... :whistle:

D-)
Top
 Profile

Daco
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 18:41
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb

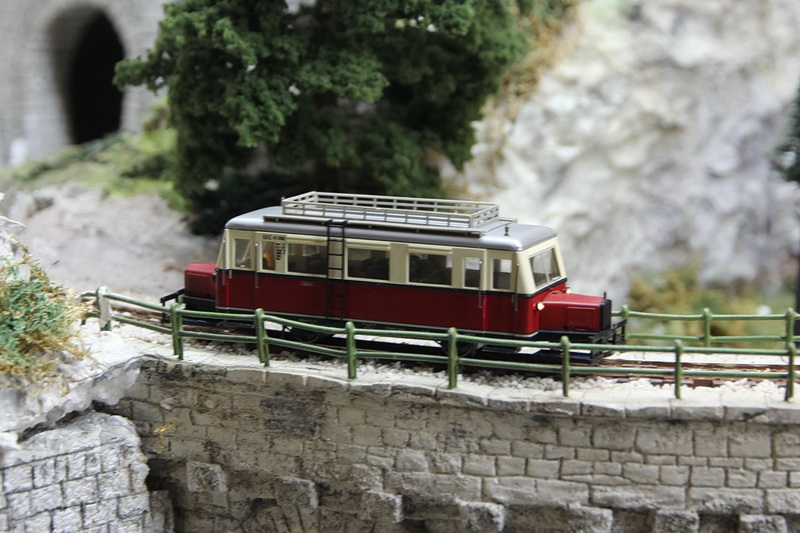

Attachment:
zzz kzmz 140203 dstanicic- 0007_resize.jpg
zzz kzmz 140203 dstanicic- 0007_resize.jpg [ 177.59 KiB | Viewed 6426 times ]


Top
 Profile

sini
 Post subject: Re: Svinjica...
PostPosted: 09 Feb 2014, 18:44
Offline

Joined: 25 Sep 2012, 15:10
Posts: 3353
H0modelar wrote:
Eto, sada je dio oko ugradnje gotov.

Slijede fotke Dace i mene, pa onda možda i kakav video... :whistle:

D-)


Dobro si to podesio sa programom ali čekam na Image video

LP Sini
