H0modelar

Post subject: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:16

Joined: 17 Apr 2012, 13:09
Posts: 4792

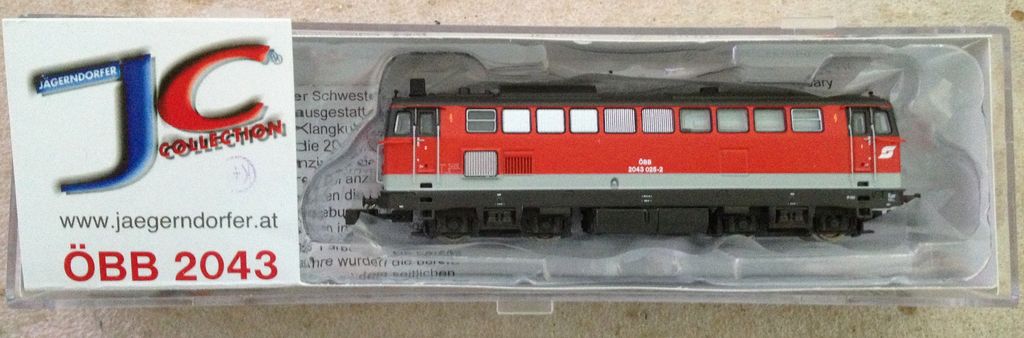

Dobio sam ovu ljepoticu za digitalizaciju i ugradnju zvuka.

Model je perfektan... i vizualno i tehnički.
Detalji savršeni, motor sa dva zamašnjaka, matična ploča, SMD LED rasvjeta...

Attachment:

IMG_2893.jpg [ 68.28 KiB | Viewed 20296 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:18

Joined: 17 Apr 2012, 13:09
Posts: 4792

Rastavljena...

Attachment:

IMG_2882.jpg [ 147.91 KiB | Viewed 20295 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:20

Joined: 17 Apr 2012, 13:09
Posts: 4792

Sve je toliko malo, da za stavljanje dekodera treba svaki milimetar visine.
To je značilo da će se morati rezati matična ploča...

Attachment:

IMG_2884.jpg [ 133.85 KiB | Viewed 20295 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:23

Joined: 17 Apr 2012, 13:09
Posts: 4792

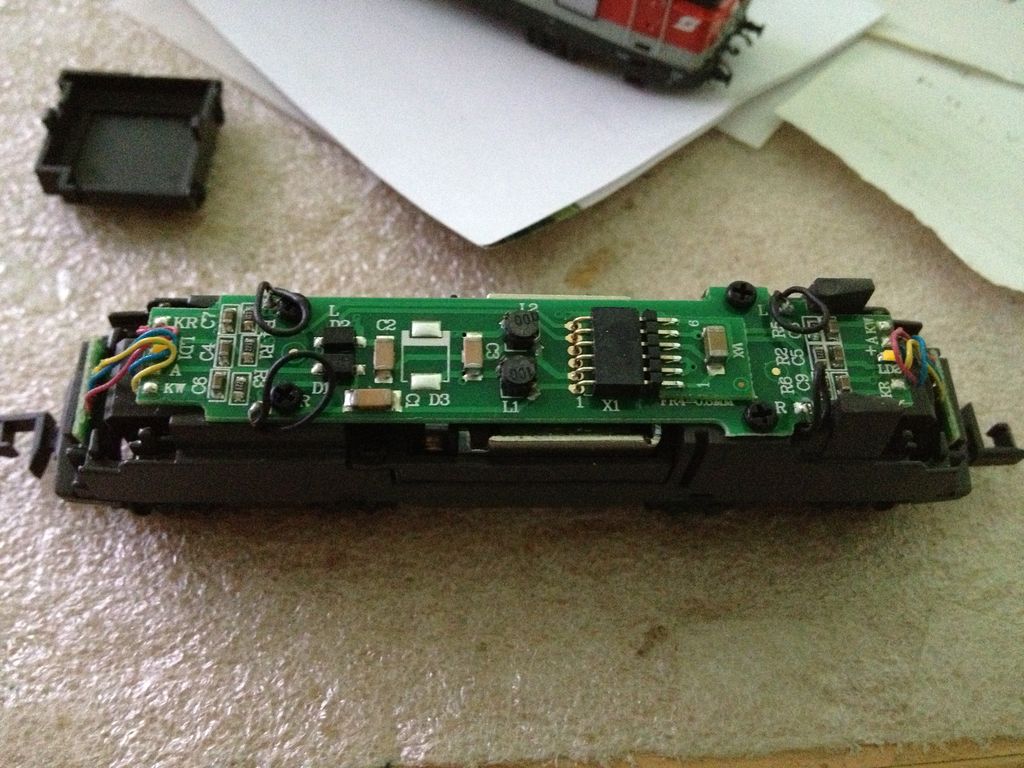

Prerezani vodovi nadomješteni su kablovima

Attachment:

IMG_2886.jpg [ 151.9 KiB | Viewed 20295 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:27

Joined: 17 Apr 2012, 13:09
Posts: 4792

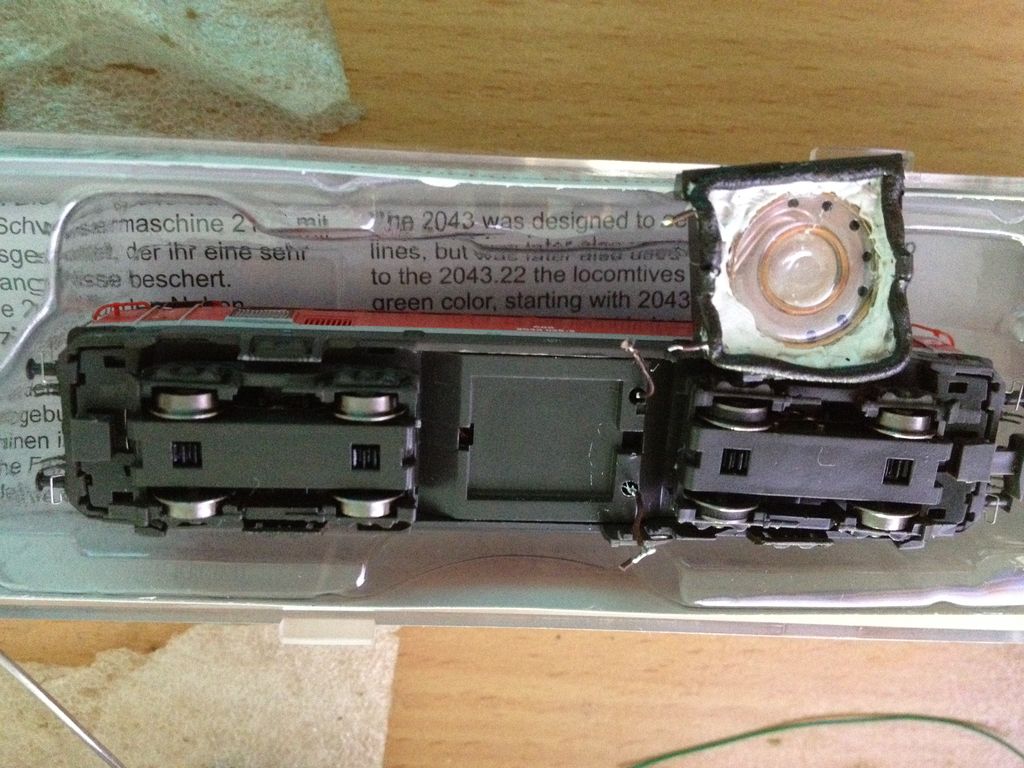

Zvučnik je ugrađen obrnuto od uobičajenog, zabrtvljen prema dolje,
sa tankom napravljenom brtvom koja će sjesti na kučište i brtviti prema gore

Attachment:

IMG_2889.jpg [ 142.73 KiB | Viewed 20295 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:28

Joined: 17 Apr 2012, 13:09
Posts: 4792

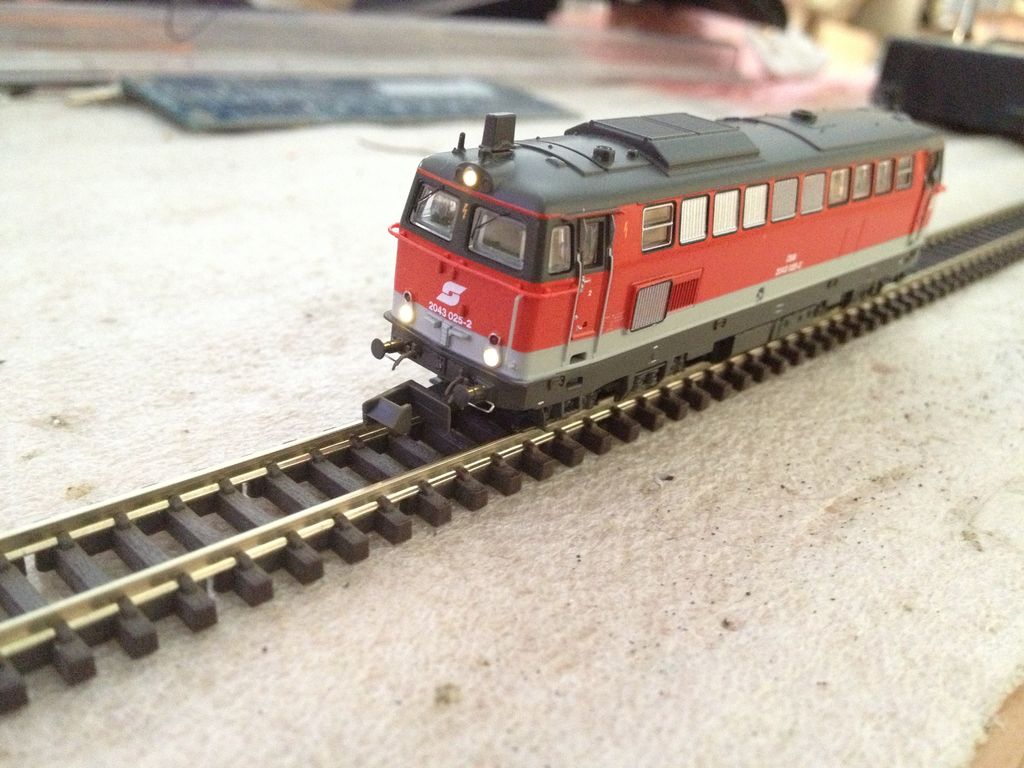

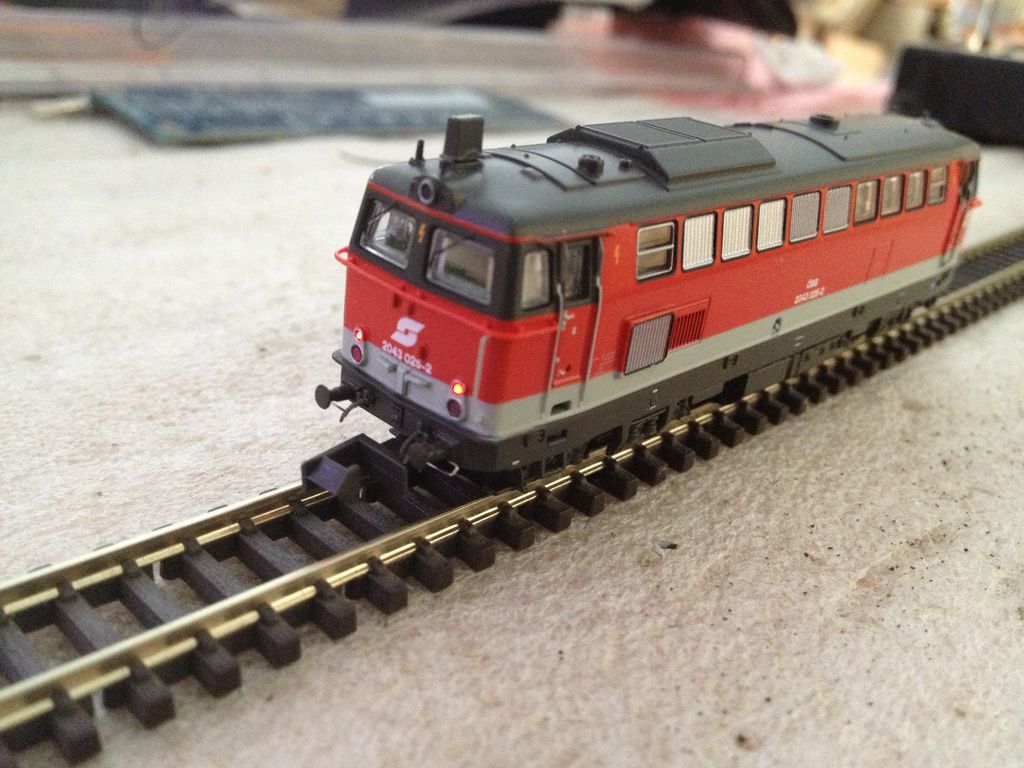

Evo je gotove na pruzi...

Attachment:

IMG_2890.jpg [ 128.87 KiB | Viewed 20295 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 18:29

Joined: 17 Apr 2012, 13:09
Posts: 4792

Attachment:

IMG_2891.jpg [ 123.99 KiB | Viewed 20294 times ]

Top

H0modelar

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 20:35

Joined: 17 Apr 2012, 13:09
Posts: 4792

Evo kako to zvuči:

Top

sini

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 02 Aug 2015, 20:47

Joined: 25 Sep 2012, 15:10
Posts: 3353

Top

Thalis-4341

Post subject: Re: OBB 2043 1/160 sa zvukom

Posted: 03 Aug 2015, 15:21

Joined: 15 Apr 2012, 12:21
Posts: 5235
Location: Zagreb

Vlasnik će biti presretan. :handgestures-thumbup:

Ali stvarno ja se nebi usudio rezati štampanu pločicu :shifty:

treba to znati... gdje, kaj i zbog čega to služi sve na njoj
