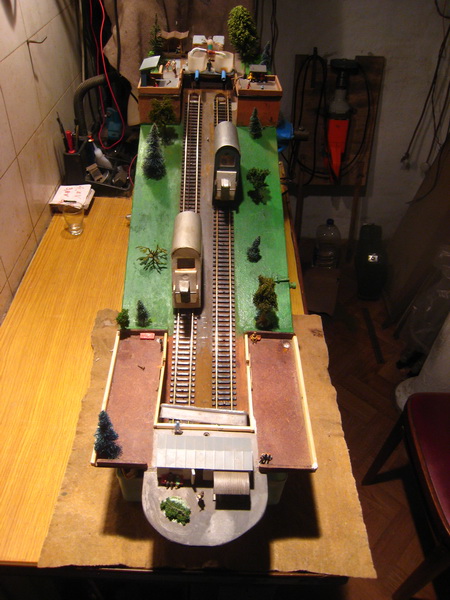

Model vodenjače - uspinjače napravio je gosp. Radoslav Karleuša. Inspiriran povijesnim činjenicama i tadašnjim rješenjima u gradovima koji su prije izuma parnih strojeva pokušavali rješavati svoje transportne potrebe.

Attachment:
zz 2014-01-02 13-29-47 - 0001_resize.JPG
zz 2014-01-02 13-29-47 - 0001_resize.JPG [ 122.88 KiB | Viewed 14745 times ]


Top
 Profile

Daco
PostPosted: 12 Jan 2014, 09:20
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Kako funkcionira vodenjača:

Voda se dovodi iz dolnje posude (0,5l) pomoću pumpe za vodu (korištena je za brisanje stakla starog "stojadina"). Regulirani mlaz mlaz puni kabinu na gornjoj postaji. Dok nema kabine na punjenju voda otječe u otvor ispod i dalje cijevčicom u doljnu posudu. Fino podešavanje dotoka vode u donji dio kabine iziskuje veliko strpljenje - regulacija napona,ventila na dovodu vode... Nema automatike - jer je izvorno u to vrijeme uspinjača nije bilo!
Pumpica za dizanje vode gore zamjenjuje izdašni izvor vode kakvih je nekada oko gornjih postaja bilo. U Zagrebu tj. na Griču nije bilo prirodnih jakih izvora vode pa je uspinjača napravljena tek nakon pronalaska i patentiranja parnog stroja.

Attachment:
zz 2014-01-02 13-30-35 - 0003_resize.JPG
zz 2014-01-02 13-30-35 - 0003_resize.JPG [ 230.07 KiB | Viewed 14741 times ]

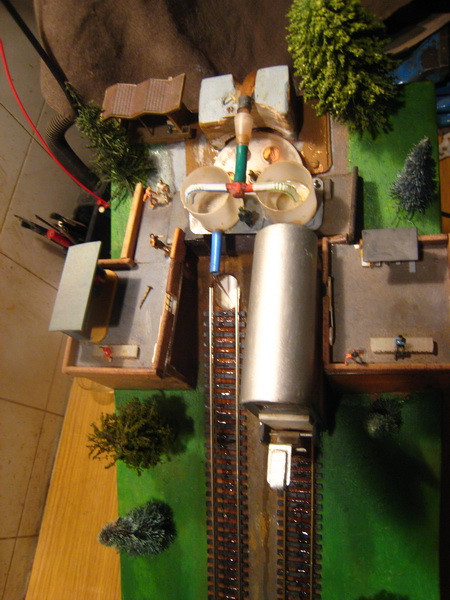

pogled na gornje spremnike vode s izljevom
Top
 Profile

Daco
PostPosted: 12 Jan 2014, 09:22
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Attachment:
zz 2014-01-02 13-31-13 - 0004_resize.JPG
zz 2014-01-02 13-31-13 - 0004_resize.JPG [ 132.36 KiB | Viewed 14740 times ]

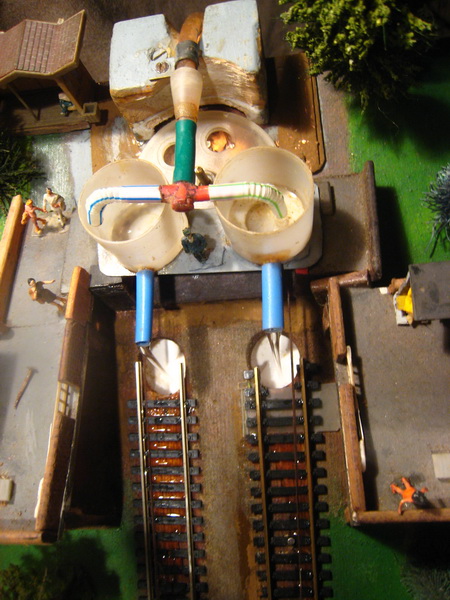

- dovod vode i razdjelnik na dva spremnika
Top
 Profile

Daco
PostPosted: 12 Jan 2014, 09:24
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Attachment:
zz 2014-01-02 13-31-24 - 0005_resize.JPG
zz 2014-01-02 13-31-24 - 0005_resize.JPG [ 124.38 KiB | Viewed 14740 times ]


- punjenje kabine 2
Top
 Profile

Daco
PostPosted: 12 Jan 2014, 09:27
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Attachment:
zz 2014-01-02 13-31-29 - 0006_resize.JPG
zz 2014-01-02 13-31-29 - 0006_resize.JPG [ 119.77 KiB | Viewed 14740 times ]

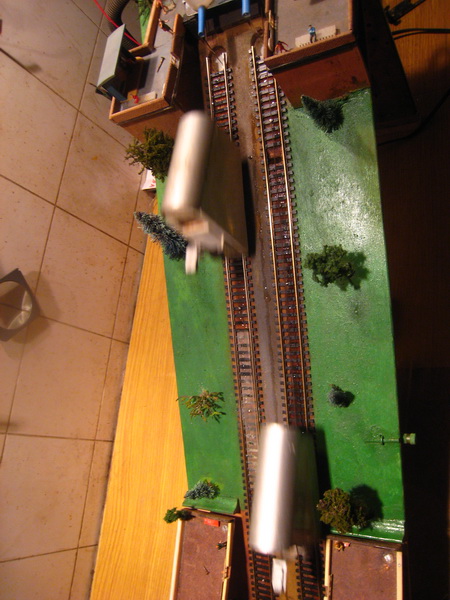

- nakon punjenja kreće...
Top
 Profile

H0modelar
PostPosted: 14 Jan 2014, 22:48
Offline
User avatar

Joined: 17 Apr 2012, 13:09
Posts: 4792
Koja ideja - čudo tehnike! :shock:

Svaka mu čast! :B
Top
 Profile

Thalis-4341
PostPosted: 15 Jan 2014, 18:45
Offline
User avatar

Joined: 15 Apr 2012, 12:21
Posts: 5235
Location: Zagreb
Jedamput je bila izložena i stvarno je fascinantno. :clap: :clap: :clap:
Stvarno te navede na razmišljanje kako je to funkcioniralo u 1:1???... :think: :think: :think:
Top
 Profile

Daco
PostPosted: 16 Jan 2014, 20:24
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Attachment:
zz 2014-01-02 13-31-38 - 0007_resize.JPG
zz 2014-01-02 13-31-38 - 0007_resize.JPG [ 119.94 KiB | Viewed 14696 times ]

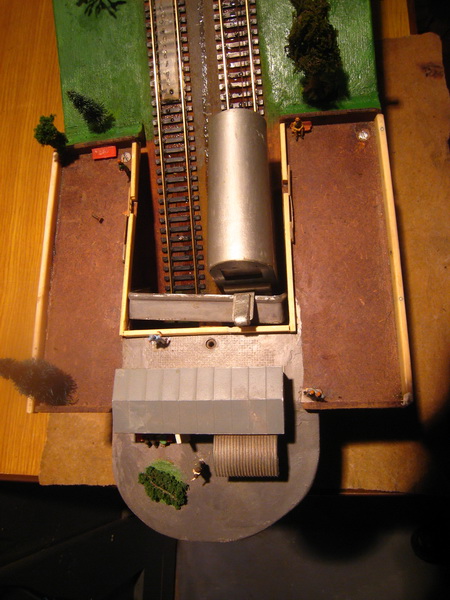

- kabina 2 prilikom ispuštanja vode u doljnji vodospremnik
Top
 Profile

Daco
PostPosted: 16 Jan 2014, 20:26
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Attachment:
zz 2014-01-02 15-33-41 - 0010_resize.JPG
zz 2014-01-02 15-33-41 - 0010_resize.JPG [ 201.34 KiB | Viewed 14696 times ]

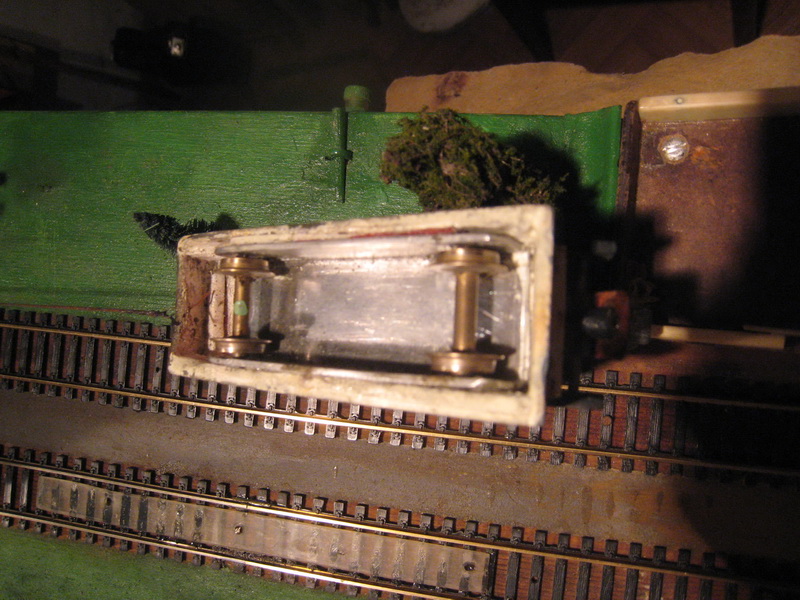

..podvozje kabine
Top
 Profile

Daco
PostPosted: 16 Jan 2014, 20:28
Offline
Site Admin
User avatar

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb
Attachment:
zz 2014-01-02 15-33-56 - 0011_resize.JPG
zz 2014-01-02 15-33-56 - 0011_resize.JPG [ 134.6 KiB | Viewed 14696 times ]

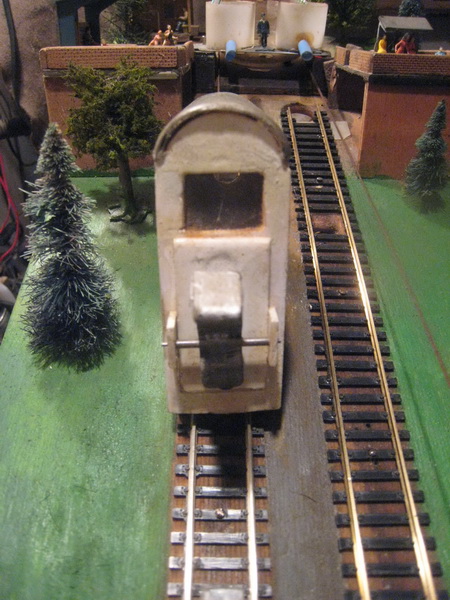

kabina 1 s ventilom za ispuštanje vode
