Daco

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 14 Feb 2014, 20:38

Site Admin

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb

Attachment:

zzz kzmz 140210 dstanicic - 0050_resize.jpg [ 221.96 KiB | Viewed 11995 times ]

Top

Daco

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 16 Feb 2014, 19:16

Site Admin

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb

Attachment:

zzz kzmz 140210 dstanicic - 0006_resize_resize.jpg [ 183.2 KiB | Viewed 11979 times ]

Top

Daco

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 22 Feb 2014, 08:58

Site Admin

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb

Attachment:

zzz kzmz 140210 dstanicic - 0036_resize_resize.jpg [ 205.72 KiB | Viewed 11957 times ]

Top

Daco

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 26 Feb 2014, 21:43

Site Admin

Joined: 15 Apr 2012, 11:25
Posts: 18422
Location: Zagreb

Attachment:

zzz kzmz 140210 dstanicic - 0035_resize.jpg [ 163.98 KiB | Viewed 11940 times ]

Top

sini

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 05 Apr 2015, 19:28

Joined: 25 Sep 2012, 15:10
Posts: 3353

Pozdrav,

da ne bude sve razbacano po forumu,ču i ja predstavit preradu Roco-vog modela OBB 399-06.
Model je bio več u mojoj temi dodan : Moja mala maketa HOe

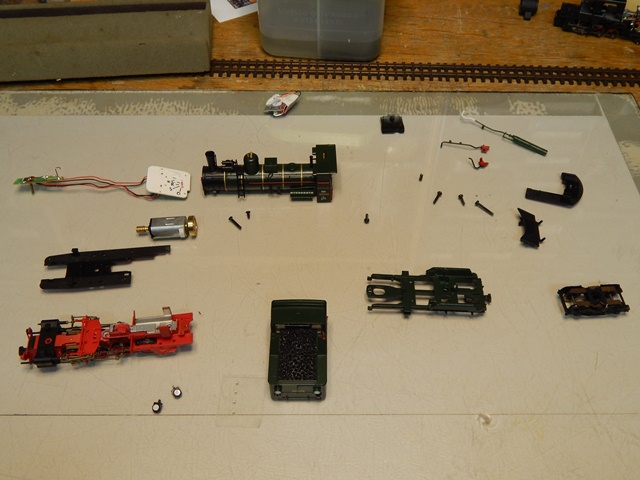

pa da počnem sa rasklapanjem modela

Attachment:

DSCN4194.JPG [ 131.97 KiB | Viewed 11914 times ]

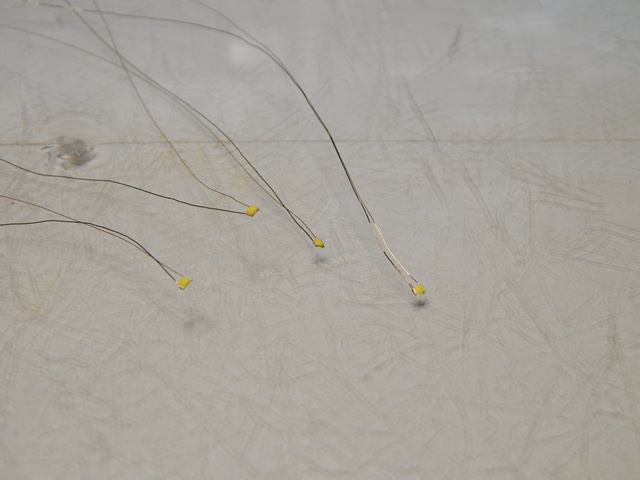

priprema Ledic SMD 0603 golden white

Attachment:

DSCN4196.JPG [ 94.24 KiB | Viewed 11914 times ]

ugradnja

Attachment:

DSCN4197.JPG [ 138.13 KiB | Viewed 11914 times ]

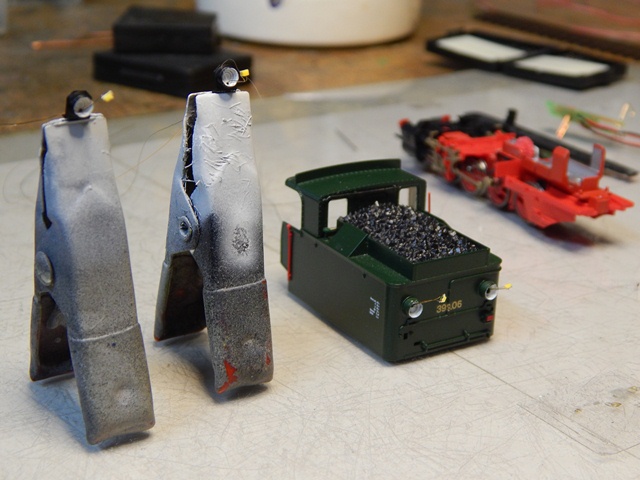

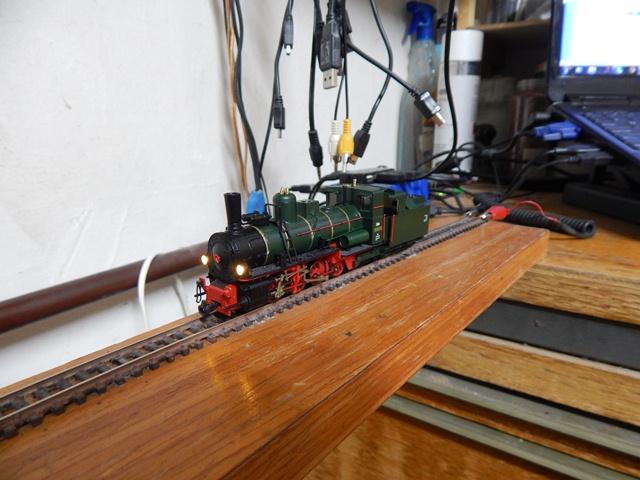

i test

Attachment:

DSCN4198.JPG [ 145.87 KiB | Viewed 11914 times ]

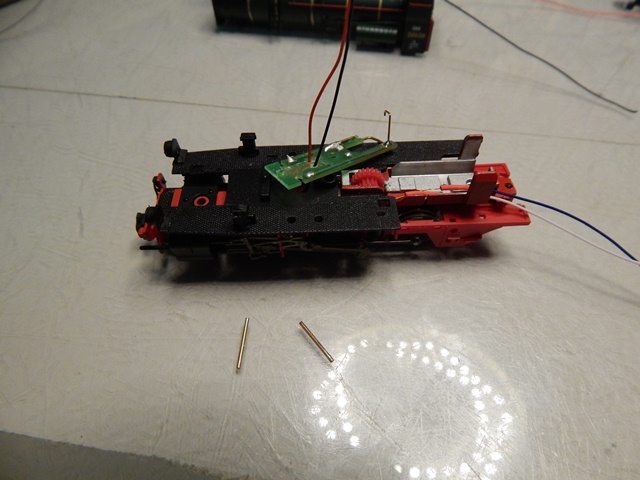

onda sam napravio to da sam izbacio te osovinice za prenos struje na štampanu ploču i ugradio direktno kable

Attachment:

DSCN4199.JPG [ 125.04 KiB | Viewed 11914 times ]

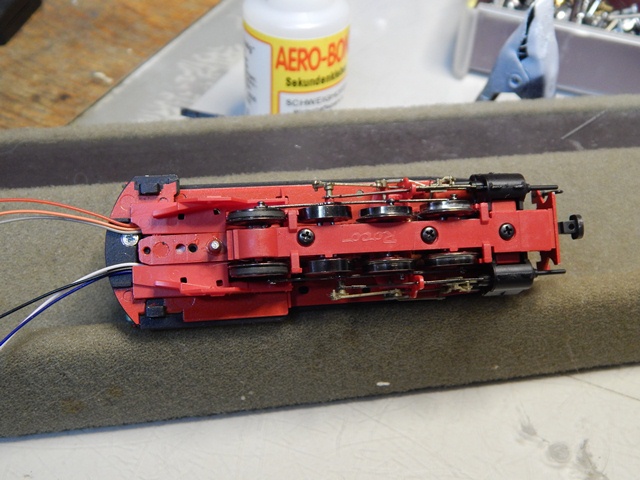

i posloženo sve skupa sa novim kablovima

Attachment:

DSCN4201.JPG [ 114.04 KiB | Viewed 11914 times ]

onda sam primetio da šaraf za spajanje lokomotive malo viri van pa sam ga obrusio da ne zapinju kabli

Attachment:

DSCN4204.JPG [ 152.59 KiB | Viewed 11914 times ]

nastavlja se...

Last edited by sini on 05 Apr 2015, 19:46, edited 1 time in total.

Top

sini

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 05 Apr 2015, 19:37

Joined: 25 Sep 2012, 15:10
Posts: 3353

...nastavak

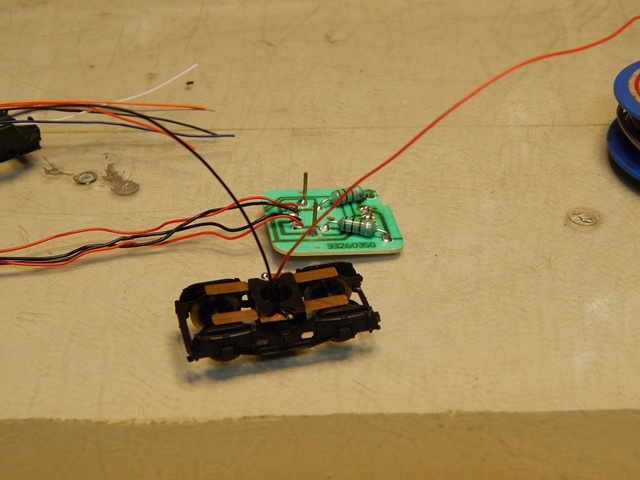

isto sam napravio na vozeku na tenderu da su kontakti dobri sam izbacio kompletnu ploču i dodao samo kable

Attachment:

DSCN4205.JPG [ 125.31 KiB | Viewed 11913 times ]

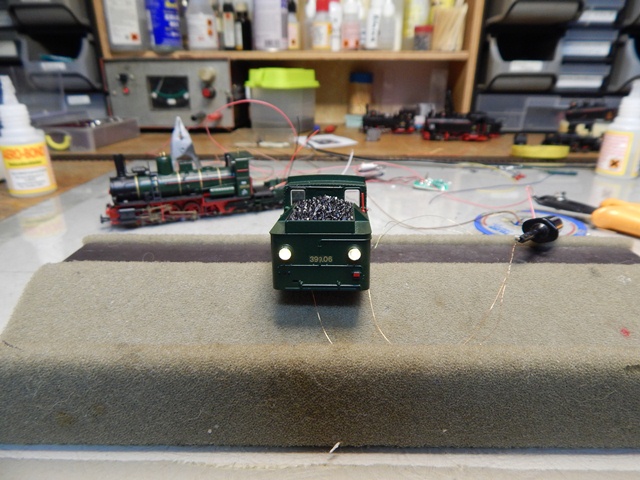

i još jedan test da sve radi OK

Attachment:

DSCN4206.JPG [ 129.45 KiB | Viewed 11913 times ]

i otraga

Attachment:

DSCN4207.JPG [ 168.83 KiB | Viewed 11913 times ]

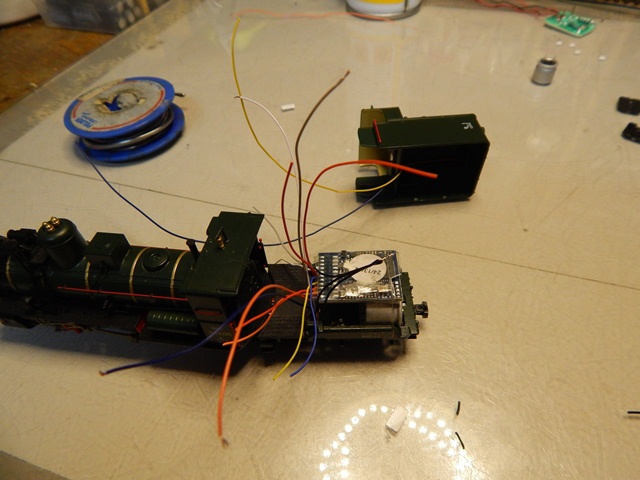

i priprema slaganja te šalate kablova,ispod dekodera se vide dodatni kondenzatori za pufering

Attachment:

DSCN4208.JPG [ 132.78 KiB | Viewed 11913 times ]

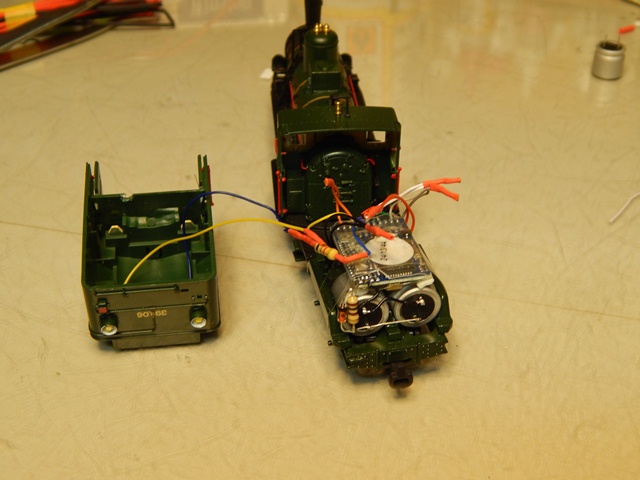

i sa druge strane,de se vidu da su dvojica kondenzatora za veču kapacitetu i spojeni kontakti

Attachment:

DSCN4210.JPG [ 119.97 KiB | Viewed 11913 times ]

nastavlja se...

Top

sini

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 05 Apr 2015, 19:44

Joined: 25 Sep 2012, 15:10
Posts: 3353

nastavak...

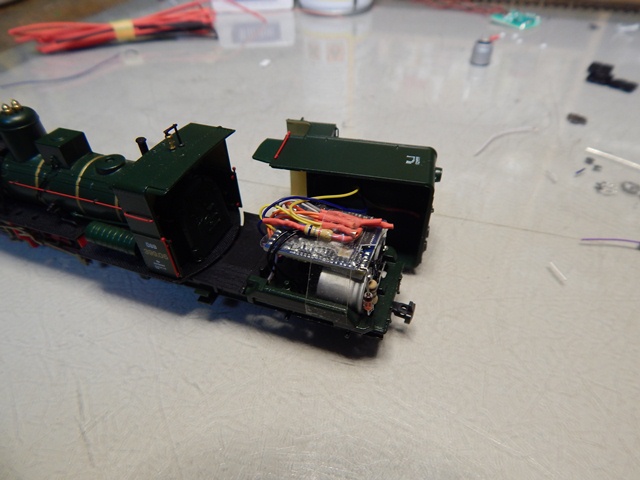

i sve posloženo prije sklapanja

Attachment:

DSCN4212.JPG [ 115.65 KiB | Viewed 11913 times ]

i onda gas na Lokprogramer na udešavanje svih parametra

Attachment:

DSCN4213.JPG [ 157.49 KiB | Viewed 11913 times ]

i sprogramirano i testirano sa druge strane

Attachment:

DSCN4214.JPG [ 144.17 KiB | Viewed 11913 times ]

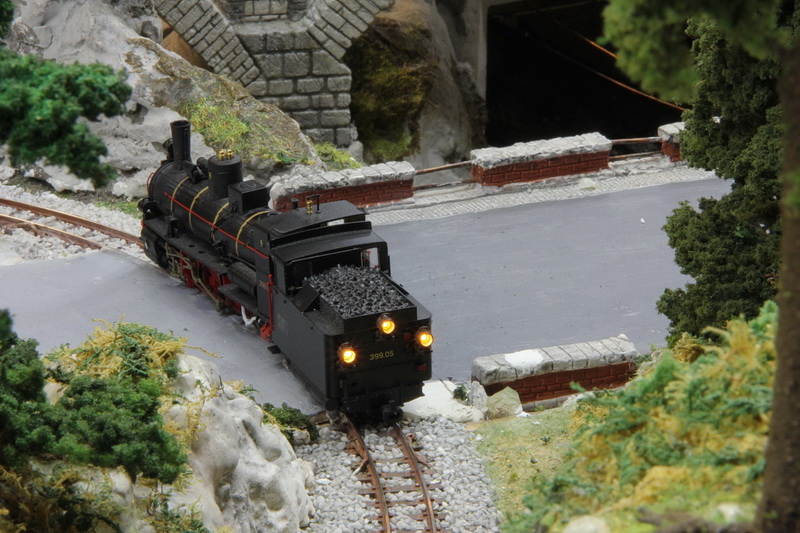

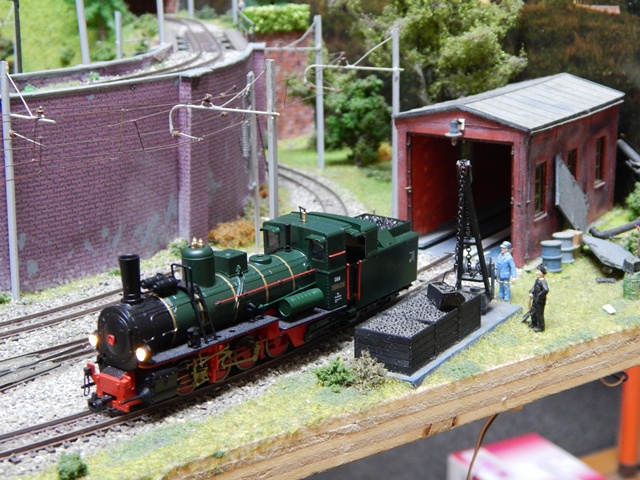

i gas na maketu za Fotoshuting i probnu vožnju

Attachment:

DSCN4217.JPG [ 207.55 KiB | Viewed 11913 times ]

evo tolko od moje prerade do sada jer sad još čekam Sound Decoder od g LeoSound Lab.
kad to stigne onda bude i video snimak kad prebacim dekoder i zvičnik.

evo tolko za sada.Pozdrav Sini

Top

felix

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 06 Apr 2015, 08:27

Joined: 15 Apr 2012, 18:15
Posts: 2892
Location: Samobor

Ou yeah!

_________________
Ne možete unaprijed znati koju stranu kruha treba namazati.
(Murphyjev zakon)

Top

H0modelar

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 06 Apr 2015, 14:42

Joined: 17 Apr 2012, 13:09
Posts: 4792

Evo, Sini nam to sve pokaže u par fotki... :handgestures-thumbup:

Rasvjeta je odrađena - bez greške! :clap:

Jedino se bojim da za zvučnik ispod ugljena (koji će tamo najbolje zvučati),
neće biti mjesta... :think:

No, kada dođe sound dekoder i zvučnik, sve će biti jasnije...

Top

sini

Post subject: Re: Oebb 399.05 svjetlo-zvuk-kretnja

Posted: 07 Apr 2015, 11:04

Joined: 25 Sep 2012, 15:10
Posts: 3353

H0modelar wrote:

Evo, Sini nam to sve pokaže u par fotki... :handgestures-thumbup:

Rasvjeta je odrađena - bez greške! :clap:

Jedino se bojim da za zvučnik ispod ugljena (koji će tamo najbolje zvučati),
neće biti mjesta... :think:

No, kada dođe sound dekoder i zvučnik, sve će biti jasnije...

E za zvučnik neče bit problema jer ide ovaj njihov najmanji unutra

imam ga več doma,a kako če zvučit to čete čut kad sve ugradim

LP Sini
